YES 2000 KN 200 TON Concrete and Brick Compression Bending Press Testing Machine

YES 2000 KN 200 TON Concrete and Brick Compression Bending Press Testing Machine thumbnail-1
YES 2000 KN 200 TON Concrete and Brick Compression Bending Press Testing Machine thumbnail-2
YES 2000 KN 200 TON Concrete and Brick Compression Bending Press Testing Machine thumbnail-3
YES 2000 KN 200 TON Concrete and Brick Compression Bending Press Testing Machine thumbnail-4
YES 2000 KN 200 TON Concrete and Brick Compression Bending Press Testing Machine thumbnail-5
YES 2000 KN 200 TON Concrete and Brick Compression Bending Press Testing Machine thumbnail-6
YES 2000 KN 200 TON Concrete and Brick Compression Bending Press Testing Machine photo-1
YES 2000 KN 200 TON Concrete and Brick Compression Bending Press Testing Machine photo-2
YES 2000 KN 200 TON Concrete and Brick Compression Bending Press Testing Machine photo-3

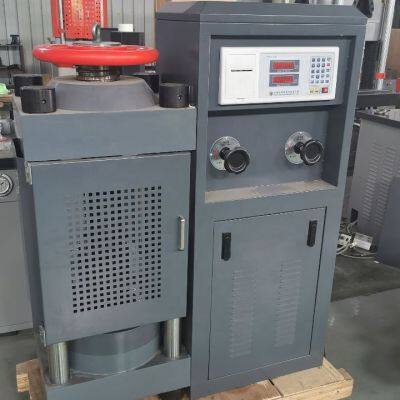

YES 2000 KN 200 TON Concrete and Brick Compression Bending Press Testing Machine photo-4
YES 2000 KN 200 TON Concrete and Brick Compression Bending Press Testing Machine photo-5
YES 2000 KN 200 TON Concrete and Brick Compression Bending Press Testing Machine photo-6
US$ 12246.33 1 - 9 Set
US$ 11546.54 ≥10 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
1
brand name:
HST OR OEM
Contact Supplier Request Quote Chat Now
Hst Group Co.,ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Accuracy 1
brand name HST OR OEM
place of origin Shandong, China
customized support OEM, ODM
power 1
Protection Class IP55
Voltage 380 V
warranty 1 YEAR
Product name concrete cubes cylinders and blocks compression strength test machine
Max. Load 2000 kN
Class 1 Class
Testing Space Regulating Way Manual Ball Screw Adjust
Control Way Manual Control Load Way
Indicating Value Accuracy ±1%
Range Of Test Force 4% ~100% FS
Piston Stroke 50mm
Space Of Upper And Lower Pressure Plate 320mm
Space Of Two Columns 270mm

YES 2000 KN 200 TON concrete and brick compression bending press testing machine

YES 2000 KN 200 TON Concrete and Brick Compression Bending Press Testing MachineYES 2000 KN 200 TON Concrete and Brick Compression Bending Press Testing MachineYES 2000 KN 200 TON Concrete and Brick Compression Bending Press Testing Machine

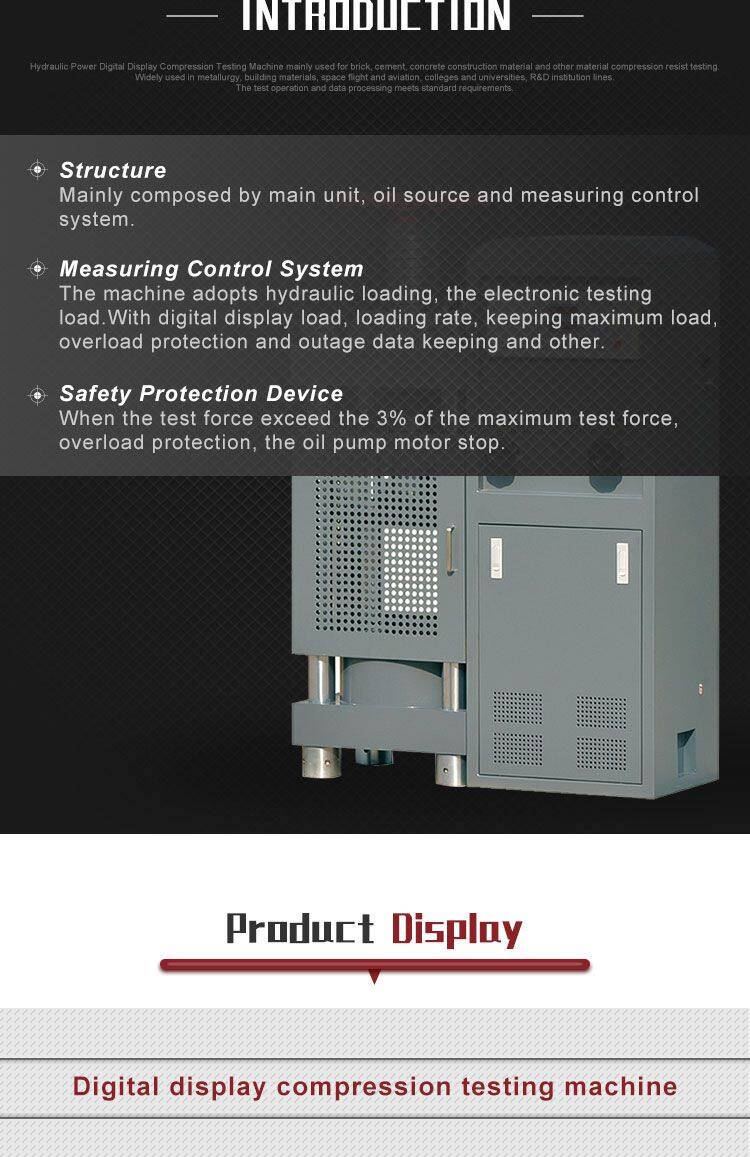

Product Description

1.Application:

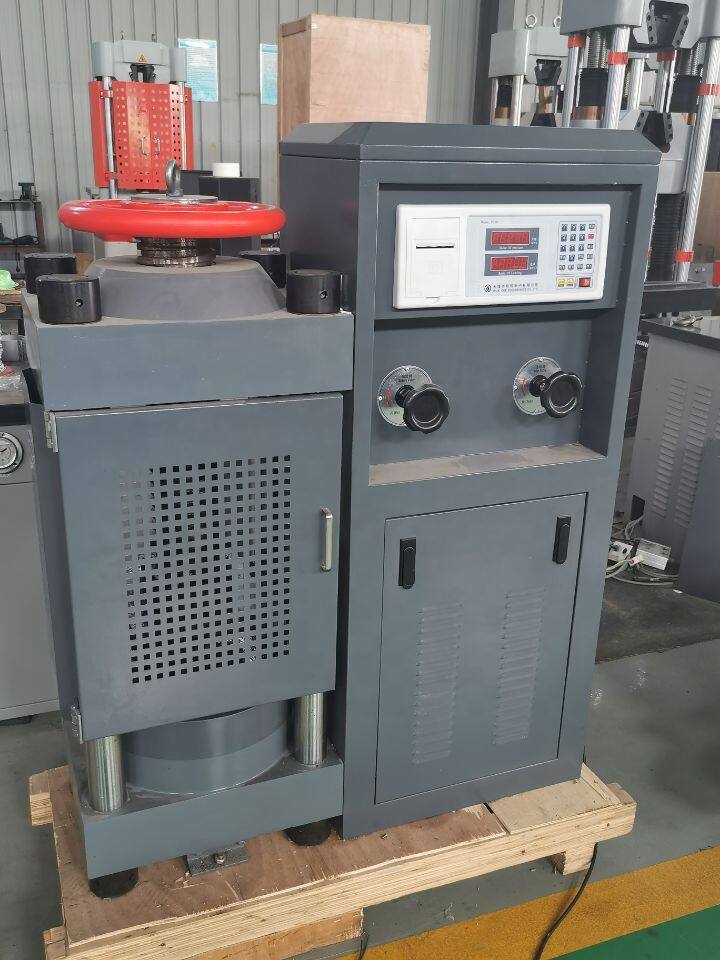

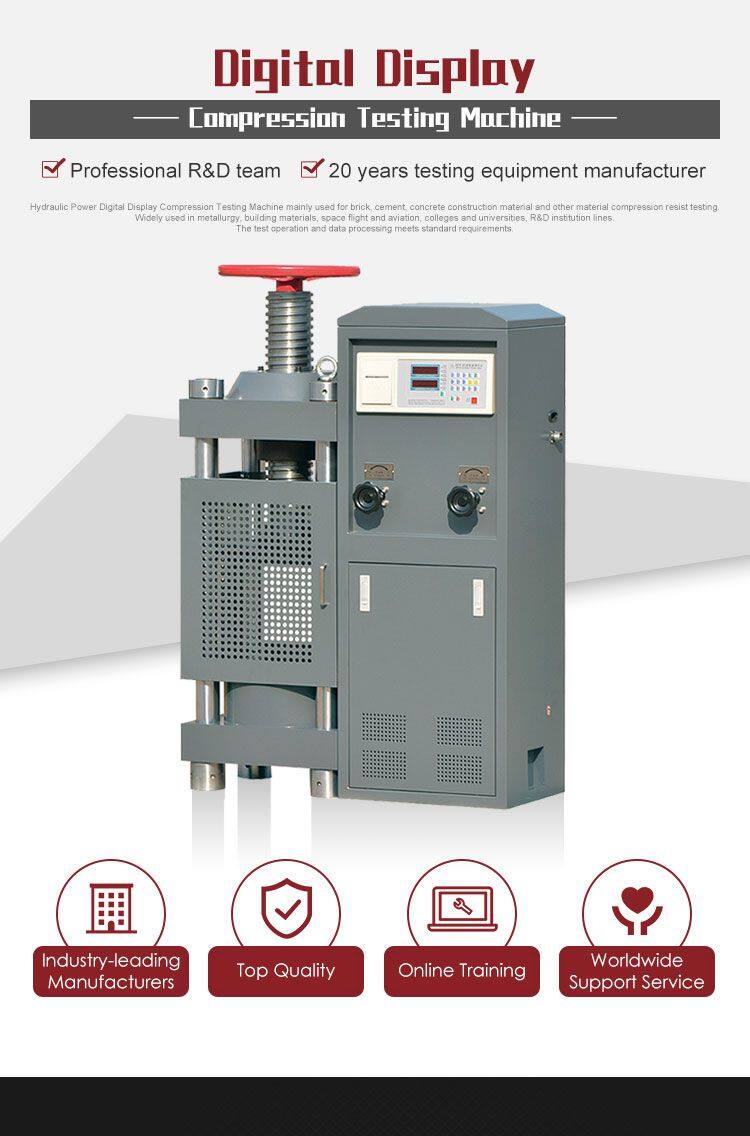

YES-2000 Digital Display Compression Testing Machine mainly used for Concrete Cube and other

material compression resist testing.

Widely used in metallurgy, building materials, space flight and aviation, colleges and universities,

R&D institution lines. The test operation and data processing meets standard requirements.

2.Standards:

GB/T, ISO, ASTM, DIN, JIS, etc.

3.Main Specifications:



Model

YES-2000

Max. Load

2000 kN

Class

1 Class

Testing Space Regulating Way

Manual Ball Screw Adjust

Control Way

Manual Control Load Way

Oil Source Control Cabinet Structure Form

One-piece Bench Oil Source Control Cabinet

Range Of Test Force

4% ~100% FS

Indicating Value Accuracy

±1%

Piston Stroke

50mm

The Largest Spacing Of Upper And

Lower Pressure Plate

320mm

The Largest Spacing Of Two Columns

270mm

Pressure Plates Size

250*250mm(L*W)

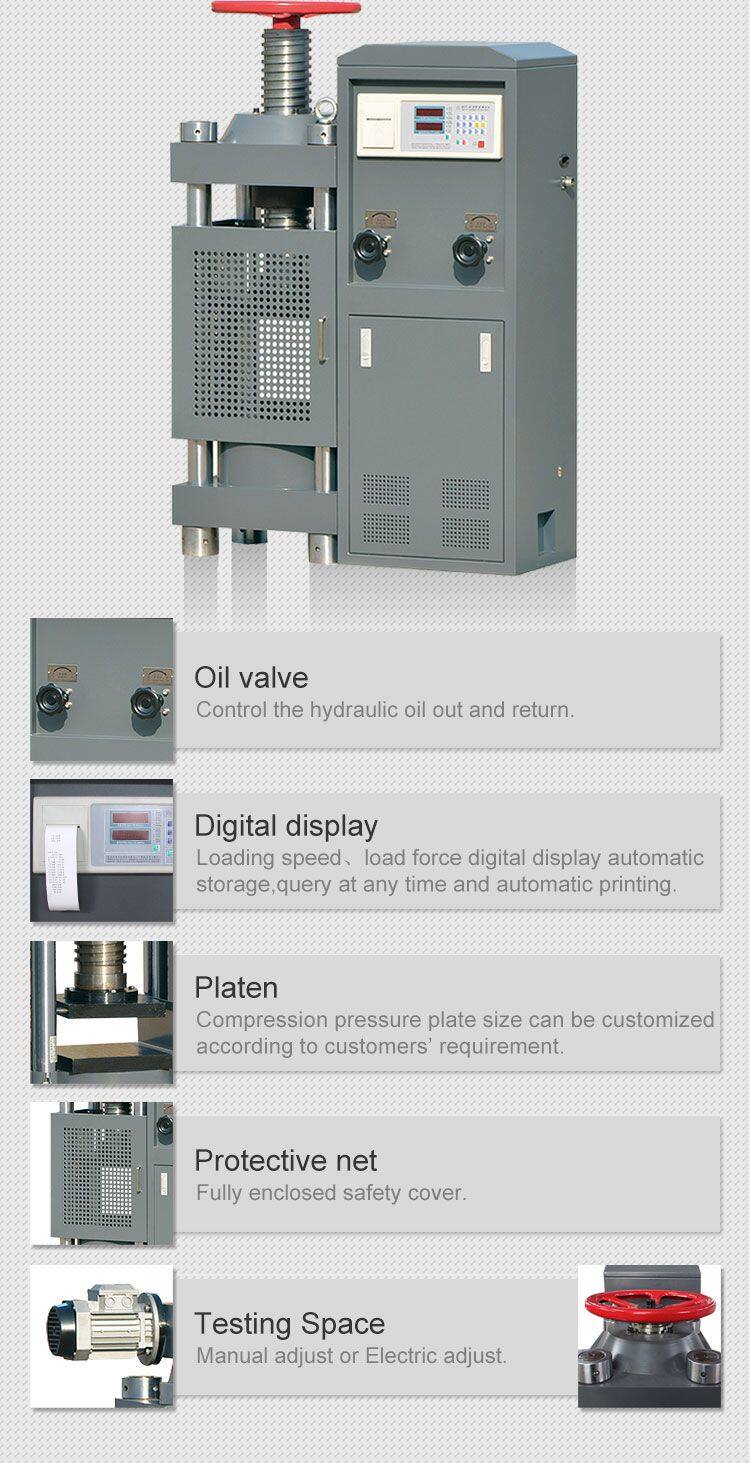

Display

LCD Digital Display

The Host Dimension

900×400×1150mm

Power Supply

1KW/AC380V

Weight

750 KG
