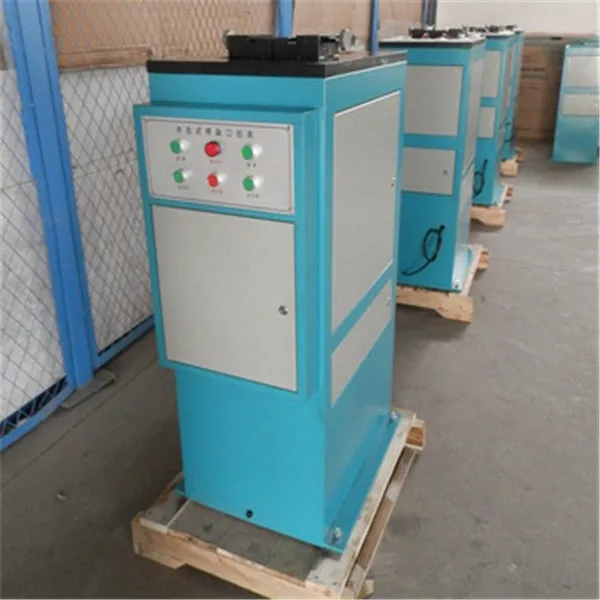

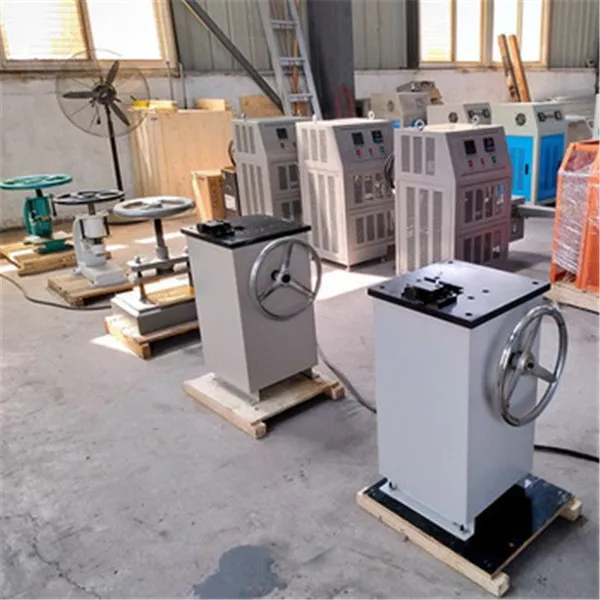

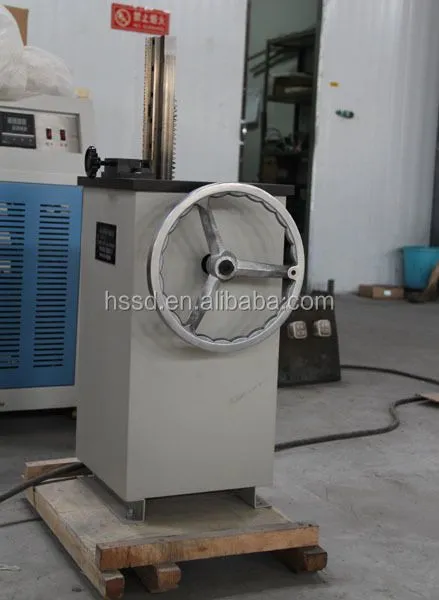

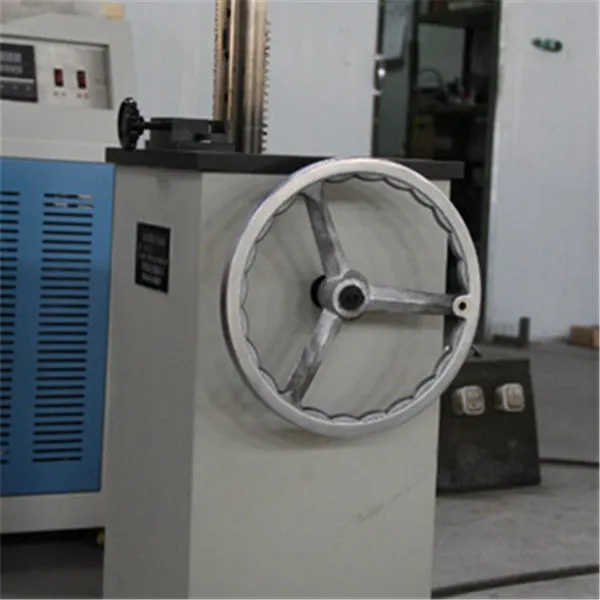

VU-1S Manual Impact Sample Charpy Notch Broaching Machine
1.Function:
VU-1S Manual Notch Cutting Machine for Impact Specimen is professional equipment for impact test. It is used to cut impact specimen notch.
2.Features:

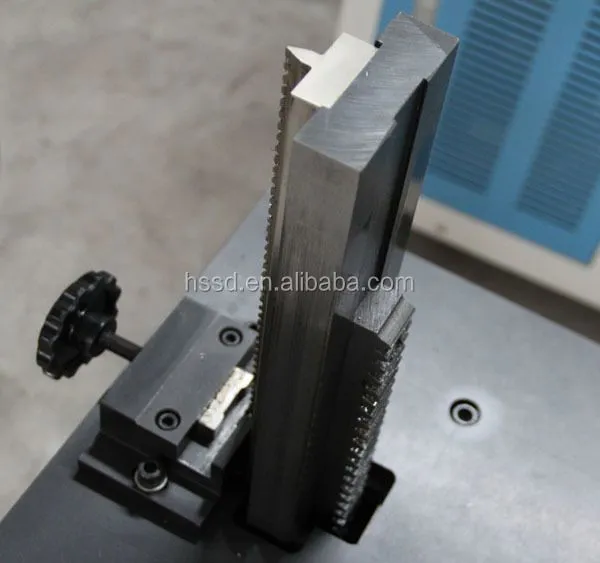

1) This machine two kinds of broaches, which is a V-shape and a U-shape one.
2) The quality of process specimen is reliable
3) The shape of the specimen notch can meet the standards of the standards of the GB229-2007 "Metallic materials---Charpy pendulum impact test method " . We also can product the machine to make the specimen shape that can meet the standards of ASTM E23-02a,EN10045,ISO148,ISO083.
4) The broach of this machine is made of special material and made in a special technology.
5) The broach is high hardness and strong wear and abrasion resistance
6)manual operation
3. Applicable industries:
VU-1S Manual Notch Cutting Machine for Impact Specimen is used to cut notch in the impact test for petroleum chemical industry, metallurgy, boiler and pressure vessel, steel plate, steel pipe, wind power generation, hardware, metal, casting, pump, valve, solar, ordnance, fasteners, diesel engine, electric power, iron tower, railway, ship, machinery manufacturing, automotive, aerospace, physical and chemical laboratory, scientific Research
4. Main Technical Parameter:
|
Shape of sample notch |
V-shape(2 mm) U-shape(2mm) |
|
Sample size |
10×10×55mm (or 10×10×7.5mm , 10×10×2.5mm) |
|
Cutting mode |
Manual |
|
Broach material |
W18Cr4V |
|
Power supply |
380 V,.37 KW |
|
Max. Dimension |
350×350×600mm |
|
Weight |
100kg |
