Digital Display High Quality Metal Drop Weight Impact Testing Machine
Phone/whatsapp:+86-15866781190 Skype:hstbetty009

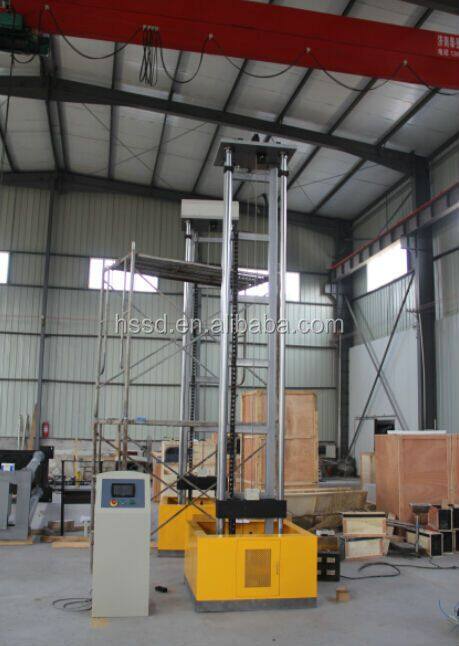

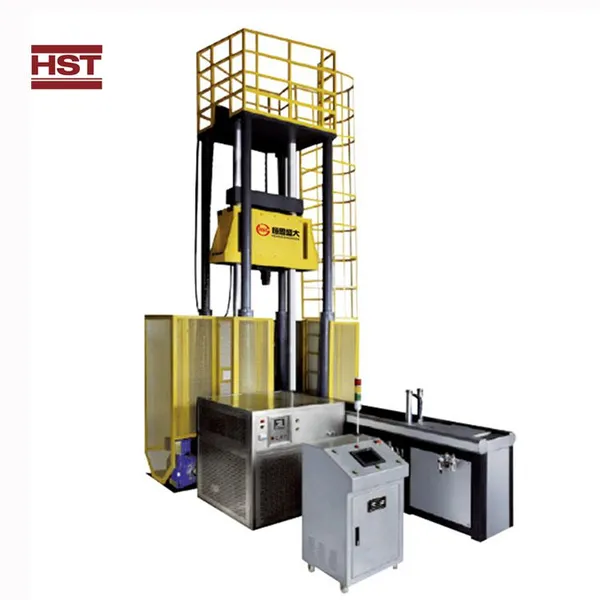

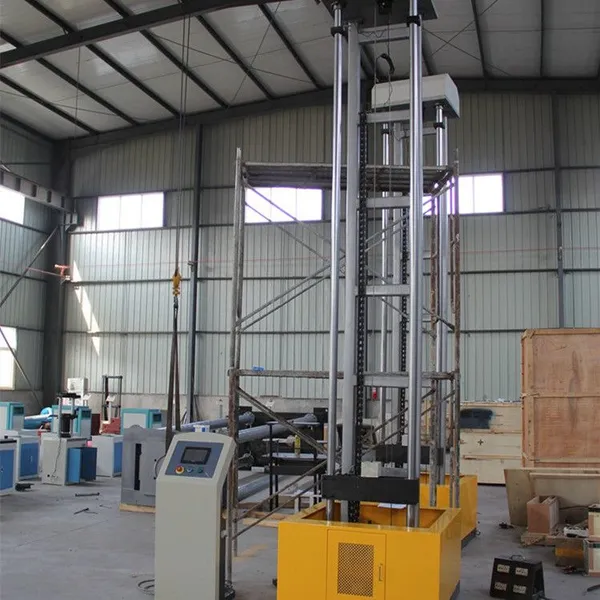

NDT-3000 3000J 4000J 6000J Drop Weight Impact Testing Machine
1. Application:
This type of machine is specially for conducting drop-weight test to determine nil-ductility transition temperature of ferritic steels.
2.Standard:
GB/T6803-86,ASTM E208-95A
3.Main Technical Parameters:
|
Model |
NDT-3000 |
NDT-4000 |
NDT-6000 |
|
Maximum Energy(J) |
3000 |
4000 |
6000 |
|
Minimum Energy(J) |
300 |
500 |
750 |
|
Maximum Tup Mass(kg) |
90 |
120 |
204 |
|
Tup Mass Accuracy |
±1% |
||
|
Drop Height(mm) |
750~3400 |
750~3000 |
|
|
Velocity Of Drop(m/s) |
3.8~7.6 |
||
|
Hammer Lifting Speed(m/min) |
3 |
||
|
Height Resolution |
0.1 |
||
|
Height Accuracy(mm) |
≤±10 |
||
|
Hardness Of Tup Nose |
HRC58-62 |
||
|
Radius Of Tup Nose(mm) |
R25.4±2.5 |
||
4.Feature:
4.1 SIMENS PLC controls and touch screen provide high reliability and versatility.

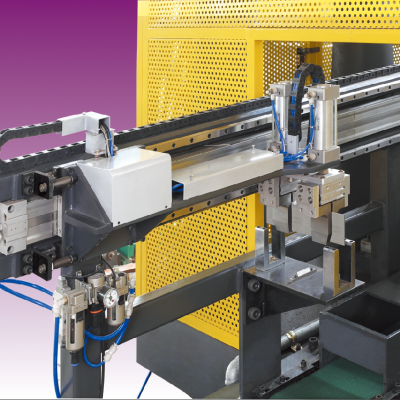

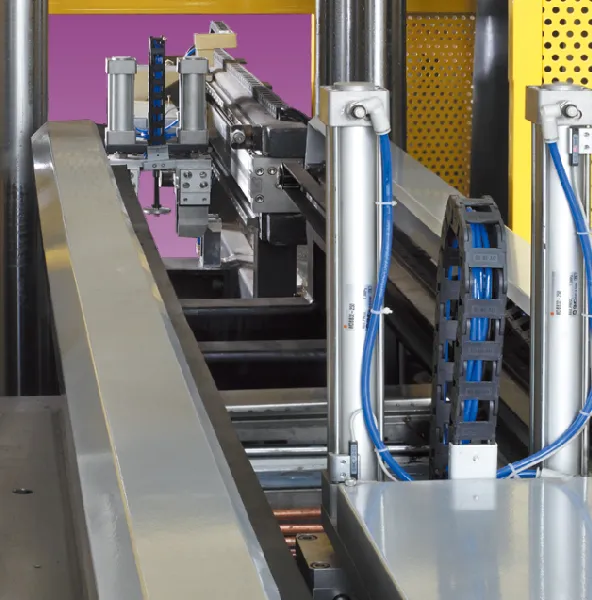

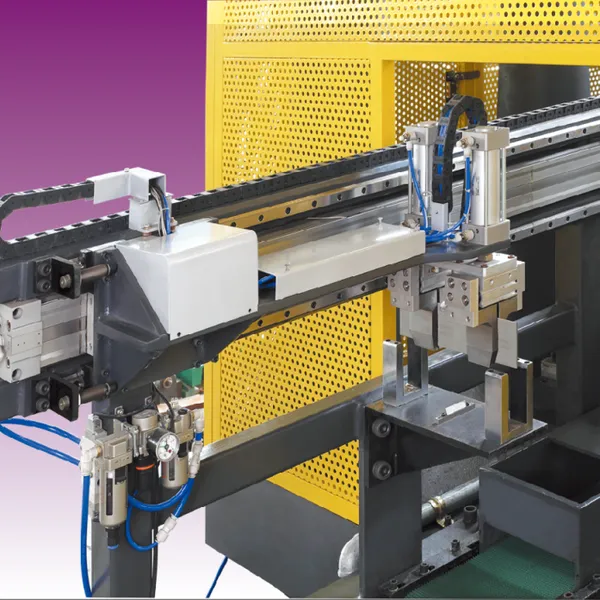

4.2 Automatic specimen feeding and automatic posting.
4.3 Frame structure is made of solid steel plate with high stability under impact.
4.4 Special design tools for support change.
4.5 Tup body is made of high strength steel plate with high impact resistance.
4.6 Use chain to lift striker with high precision in height.
4.7 Self-lock design for striker clamping.
4.8 Full-closed safety shield.
