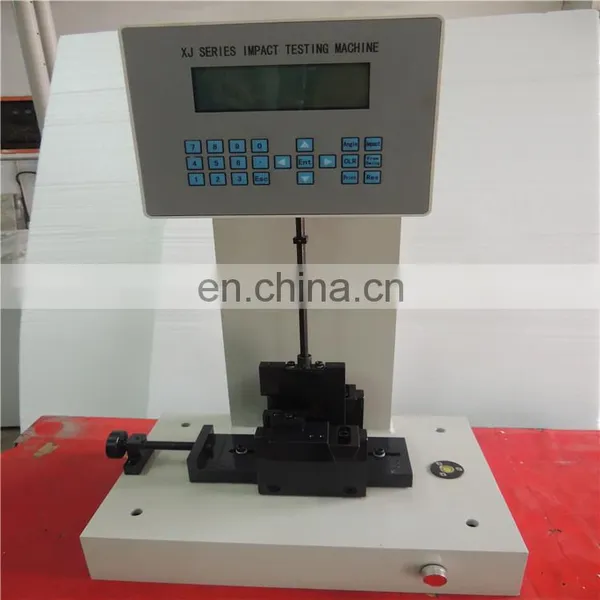

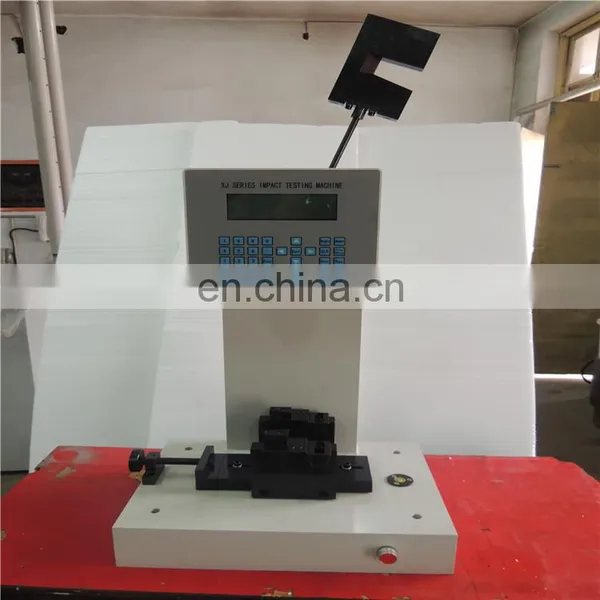

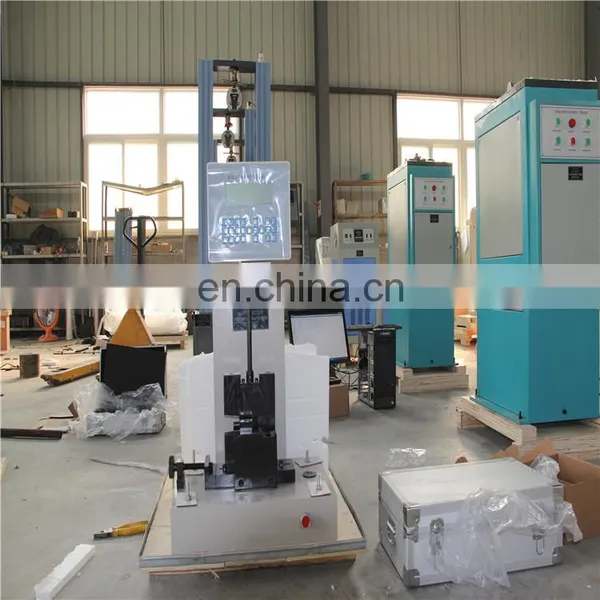

XJJD Series 5J 50J Digital Display Plastic Charpy Impact Testing Machine
1.Applications:

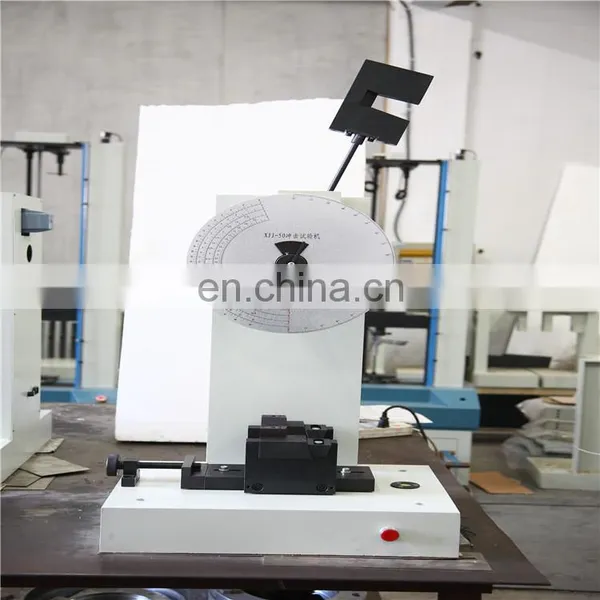

XJJ-50 Dial Display Plastic Charpy Impact Testing Machine is pointer dial, electric hammer block release.
Application: hard plastic, fiber reinforced composite materials, glass fiber reinforced plastic, ceramic, asbestos etc. nonmetal materials for impact test.
2.Standard:
JB/T8761,GB/T1043,ISO179 and so on.
3.Technical Parameter:
|
Model |
XJJ-50 |
|||
|
Impact Energy |
50 J |
|||
|
Pendulum Torque (Standard Configuration Is One Pendulum) |
7.5 J Pendulum PL=3.8662Nm |
15 J Pendulum PL=7.7324Nm |
25 J Pendulum PL=12.8888Nm |
50 J Pendulum PL=25.777Nm |
|
Impact Speed |
3.8m/s |
|||
|
Pendulum Angle |
160° |
|||
|
Span Of Support(mm) |
40mm |
60mm |
70mm |
95mm |
|
Round Angle Of The Jaw |
R=1±0.1mm |
|||
|
Round Angle Of Impact Cutting Edge |
R=2±0.5mm |
|||
|
Impact Blade Angle |
30±l° |
|||
|
The Distance Between PendulumCenter And Sample Center |
380mm |
|||
