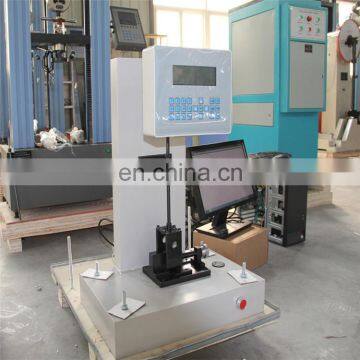

XJUD Series 5.5J,22J Digital Display Plastic Izod Impact Testing Machine For Horniness Plastic Strong Nylon
1.Application:
XJUD Series Digital Display Izod Impact Testing Machine is mainly used in testing the nonmetal materials' impact toughness, such as horniness
plastic, strong nylon, glass reinforced plastics, china, clay rock, anti-electric etc.
Electronic Izod Impact Tester is the ideal test equipment of chemical industrial, R&D institution, universities and colleges, quality testing department
and professional manufacturer laboratory.
2.Feature:
2.1.This series of impact test enginery is adopting single chip control to enhance product control accuracy and stability and can be fixed friction and

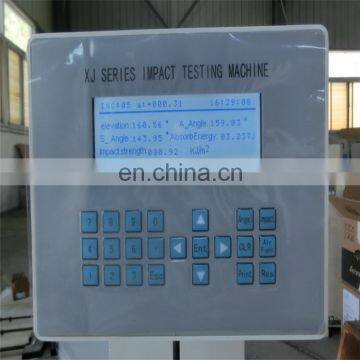

wind resistance that brings by the energy loss. LCD Display impact energy.
2.2.The XJUD Digital Display IZOD Impact Testing Machine main technical parameters of the instrument to the national standard GB/T 1843, the
international standard ISO180 and the industry standard JB/T 8762.
2.3.The device can test one or ten specimens, can delete any test data, calculate the average intensity, and print test report.
3.Technical Parameters:
|
Model |
XJUD-5.5 |
||
|
Impact Speed |
3.5 m/s |
||
|
Impact Energy |
1J |
2.75J |
5.5J |
|
Pendulum Power Distance |
Pd1=0.5155N.m |
Pd2.75=1.4177N.m |
Pd5.5=2.8355N.m |
|
Impact Center Distance |
322mm |
||
|
Rising Angle Of The Pendulum |
160° |
||
|
Round Angle Radius Of Striking Edge |
R=0.8±0.2mm |
||
|
Distance Between Impact Blade And Jaw |
22±0.2mm |
||
|
Impact Blade Angle |
75° |
||
|
Energy Accuracy |
0.0001J |
||
|
Pendulum Number: XJUD-5.5 have 3 Pendulums (1J, 2.75J or 5.5J) to choose or 3 Pendulums together. Our Machine Standard Configuration Is One Pendulum(which one Pendulum depend on you). |
|||
