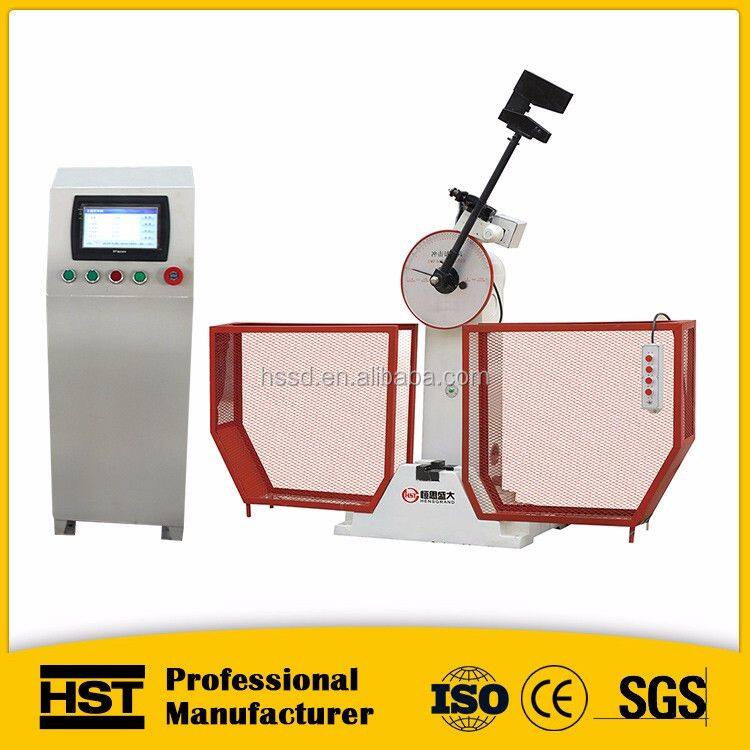

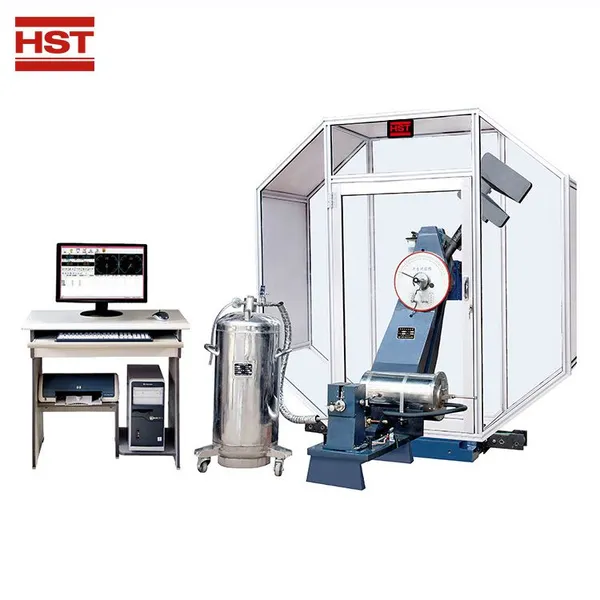

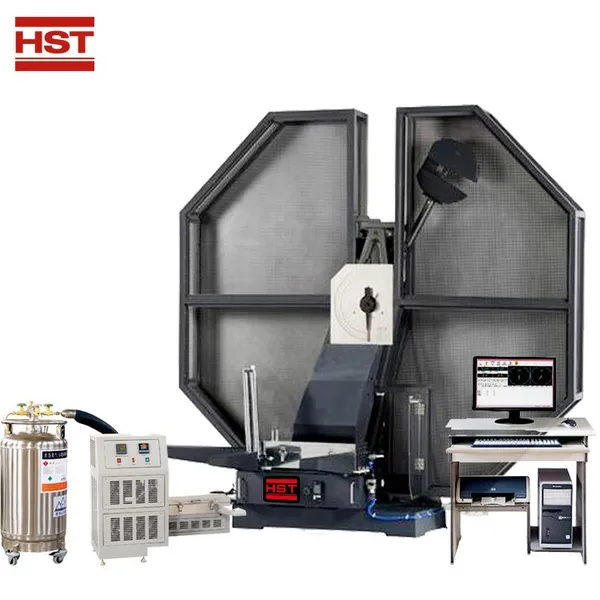

JBS-300B 300J 500J 800J Digital Display metal Semi-automatic charpy izod pendulum impact tester impact testing machine
JBS series LCD touching screen display Pendulum impact tester is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.
This series tester is operated semi-automatically, the pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.
Features:
1. Pendulum rising, impact, free releasing is realized as automatically by micro control meter or remote control box;
2. Safety pin guaranties the impact action, standard protection shell to avoid any accident.
3. Pendulum will automatically rising and ready for next impact action after specimen breakout.
4. With two pendulums (big and small), LCD touching screen display the energy loss, impact tenacity, rising angle, and test average value, meantime the dial scale show test result as well.
5. Built-in micro printer to print test result.
Semi-automatic impact testing machine JBS series specification:
|
Model |
JBS-300B |
JBS-500B |
JBS-800B |
||
|
impact energy |
150/300J |
250/500J |
500/800J |
||
|
The distance between the pendulum shaft and impact point |
750mm |
800mm |
800mm |
||
|
Impact speed |
5.2m/s |
5.4 m/s |
5.9m/s |
||
|
Pre-rising angle of the pendulum |
150° |
||||
|
Specimen bearer span |
40+0.2mm |
||||
|
Round angle of the jaw |
R1-1.5mm |
||||
|
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
||||
|
Angle accuracy |
0.1° |
||||
|
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
||||
|
Power supply |
3phs, 380V, 50Hz Or 220V,60Hz |
||||
|
Dimensions (mm) |
2124*600*1340 |
2200*650*1960 |
2450*1200*2455 |
||
|
Net Weight (kg) |
450 |
650 |
2300 |
||
Impact Testing Machine Configurations:
1). Main unit----------1 set
2). Pendulum
|
JBS-300B |
JBS-500B |
JBS-800B |
|
150J/300J--2 pcs |
250J/500J--2 pcs |
500J/800J--2 pcs |
3). Span specimen plate (L = 40mm)----1 pc
4). Specimen centering plate (L = 40mm)(U, V)----1 pc
5). Stripping attachment----1 pc
6). Internal hexagonal wrench (S=12mm)---1 pc
7). Anchor bolts (M16x300mm)---4 pcs
8). Impact testing security guards----1 pc

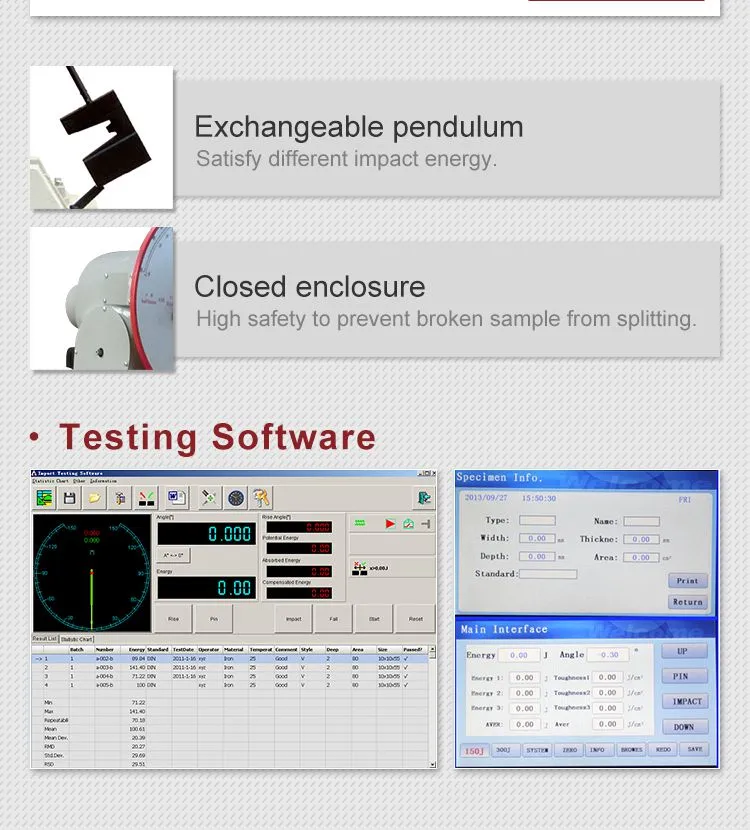

9). Touching screen control panel/ PC software

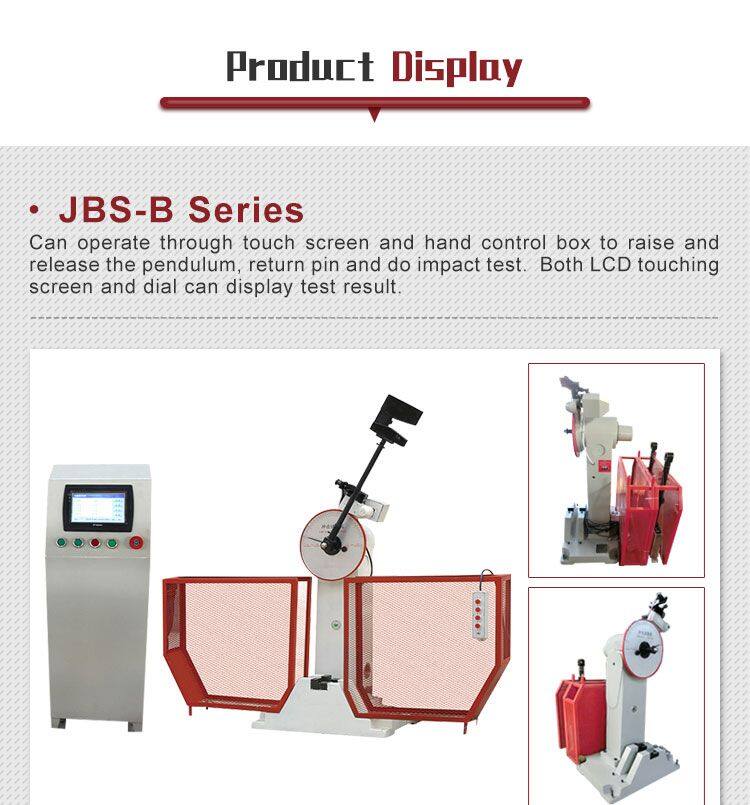

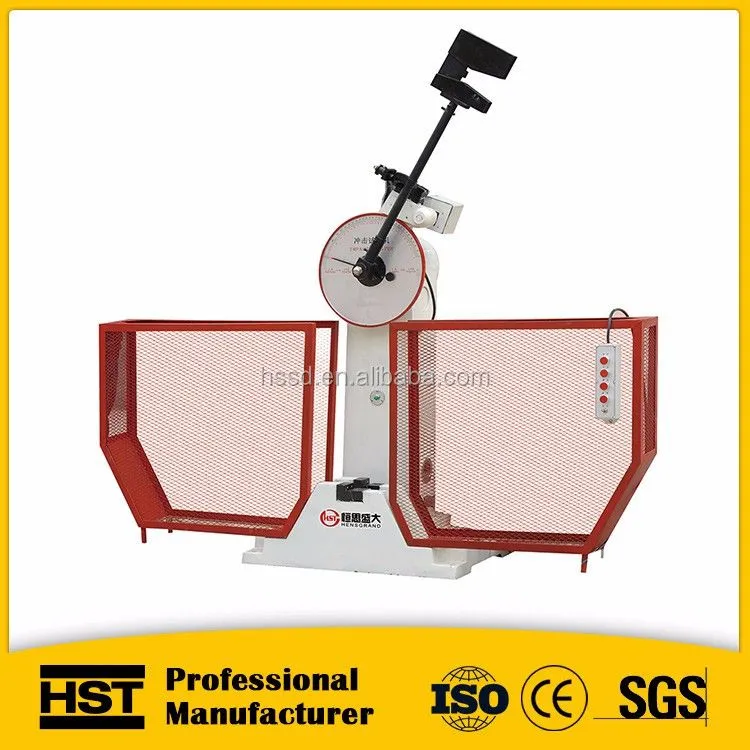

JBS series Impact Testing Machine : --- Charpy structure

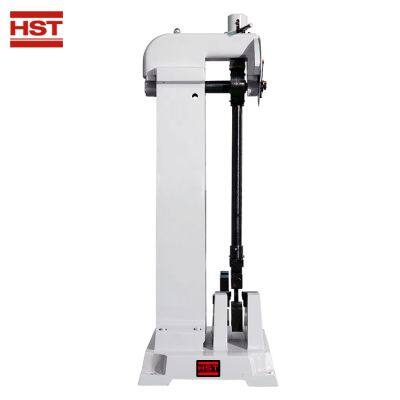

Izod structure:

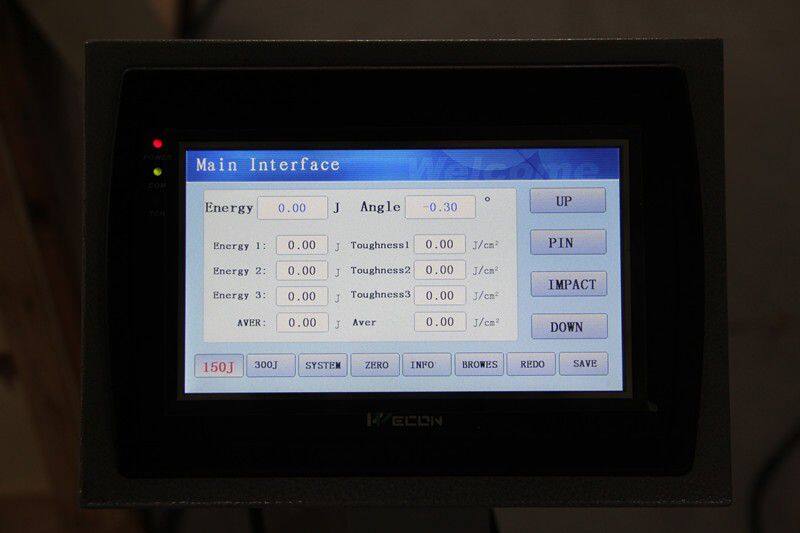

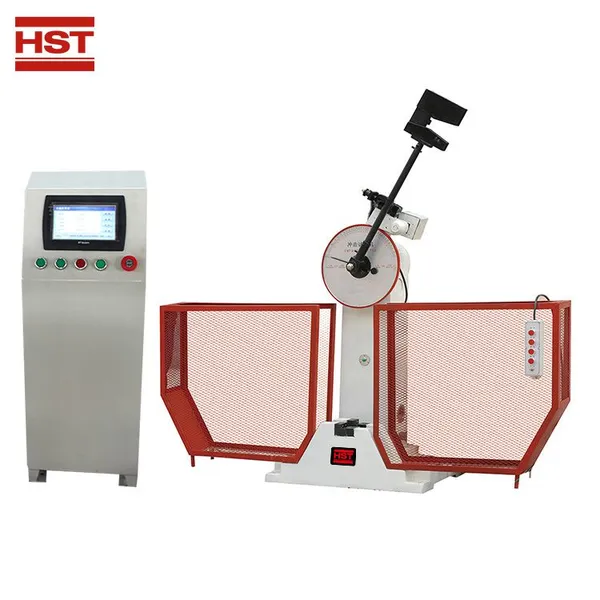

Digital LCD diaplay:

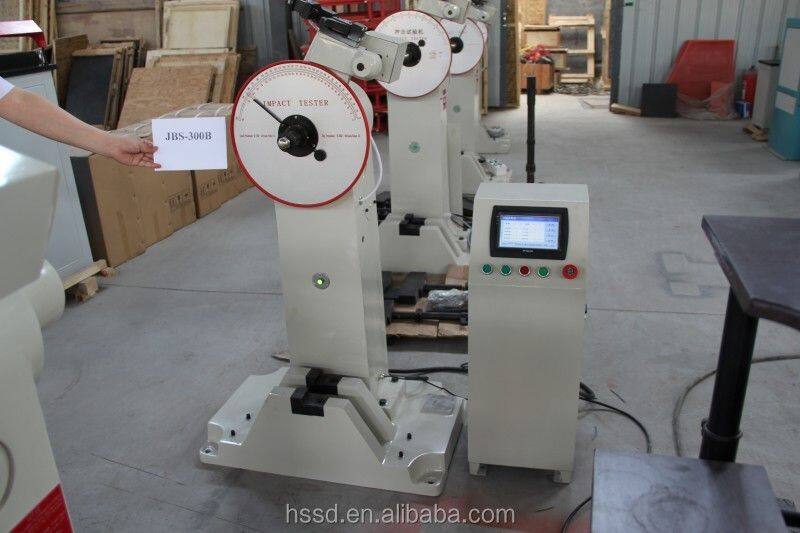

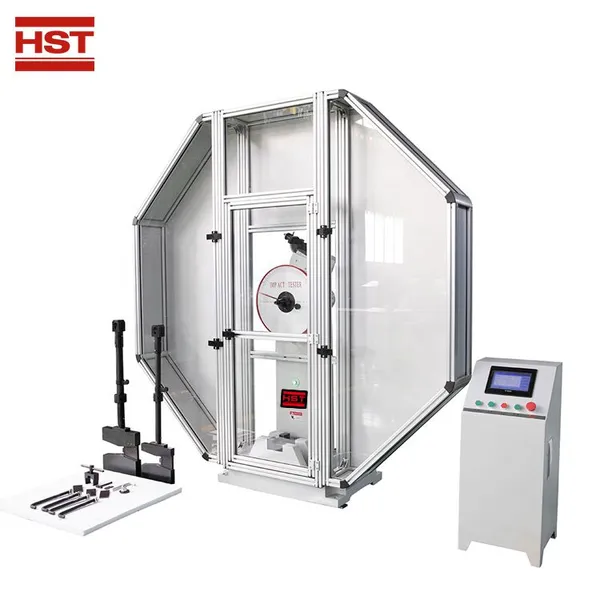

Impact Testing Machines in stock, can be shipped directly after receiving orders:
Izod Impact universal Testing Machine photo:

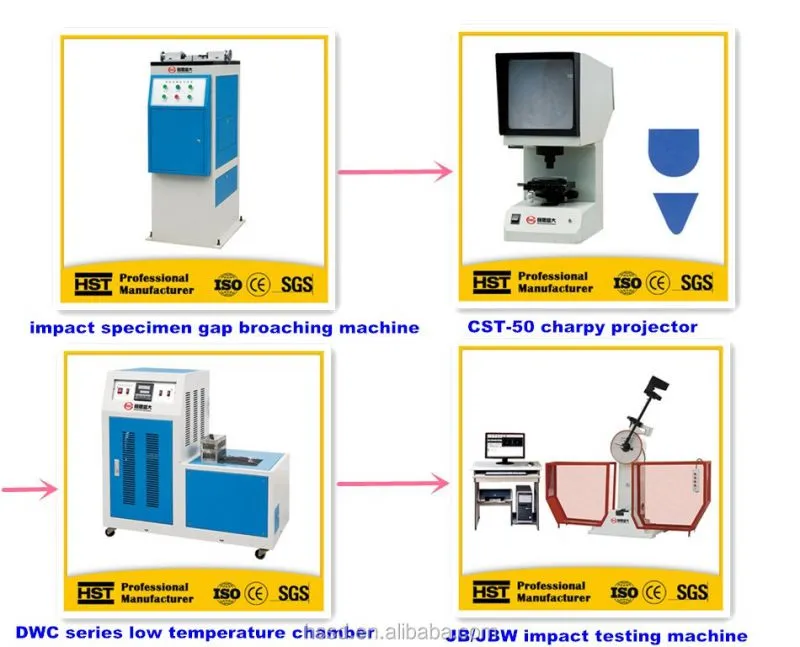

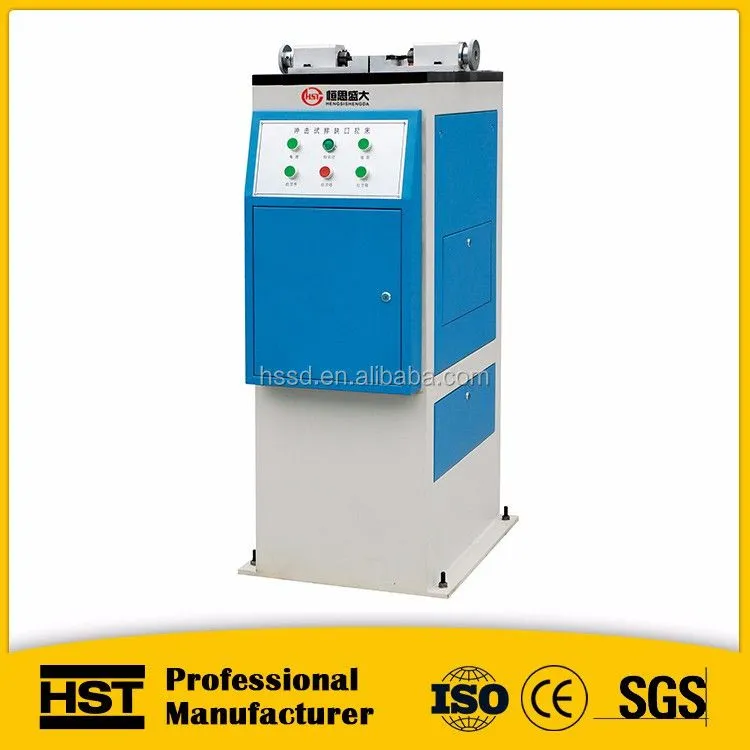

Impact Specimen Gap Broaching Machine: --- For cutting notch of the impact sample in impact test.

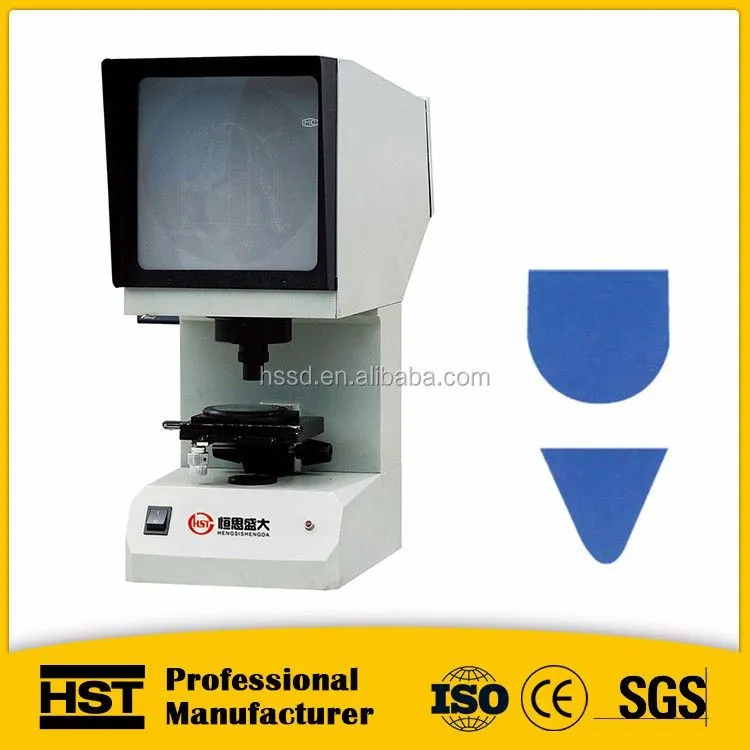

CST-50 Charpy Projector --- use for checking the processing quality of U or V-shaped notch of the impact specimen.

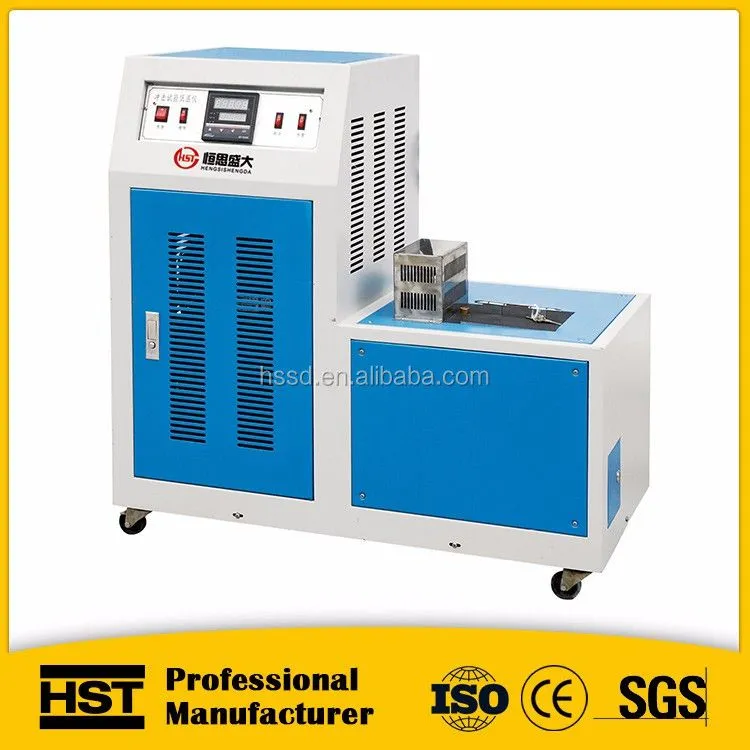

DWC series Low Temperature Chamber --- use for cooling the impact sample before low temperate imapct test.
If you are interested in Low Temperature Chamber, please "click" picture directly for details:
Compressor Cooling Chamber Liquid Nitrogen Cooling Chamber
CE certificate:

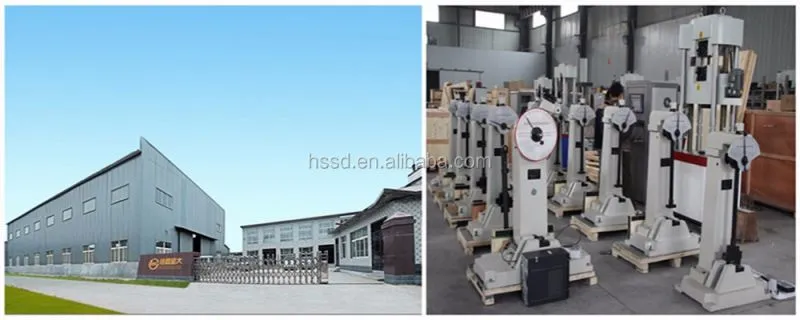

Company photo:
