1. Application

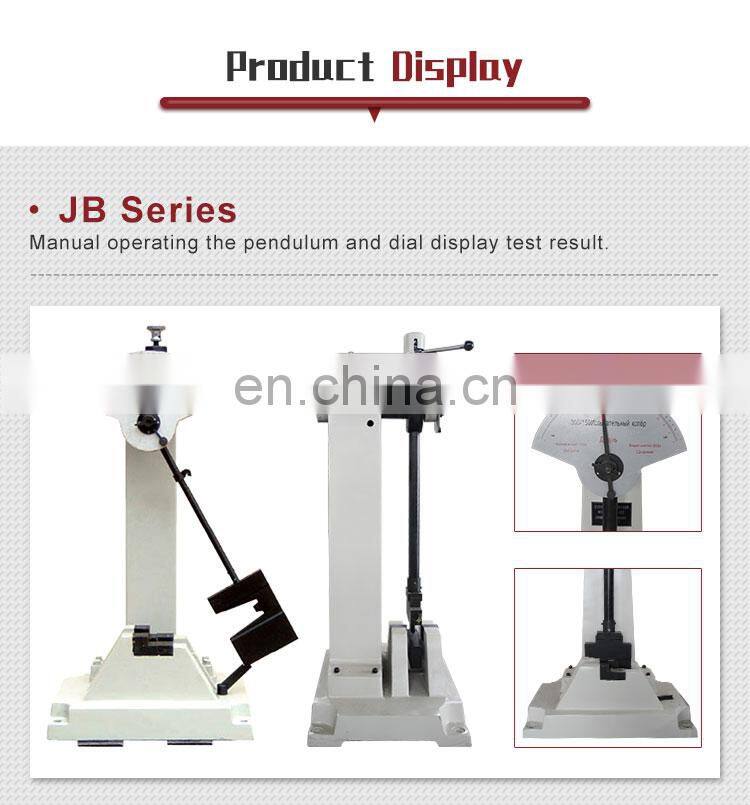

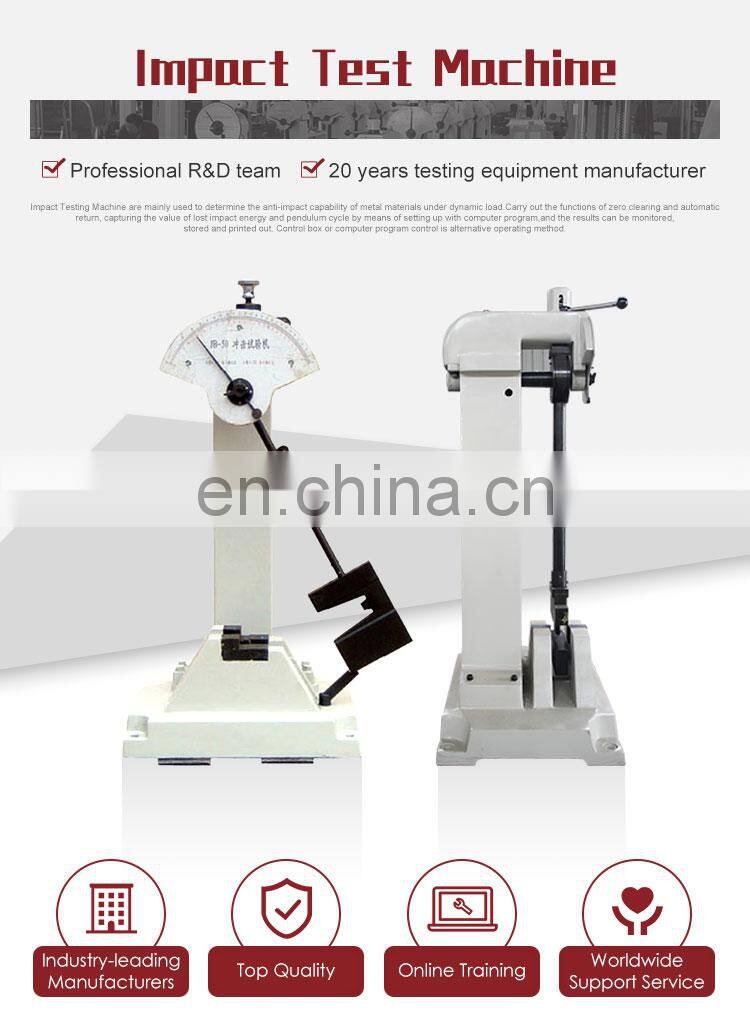

JB-300 Manual Impact Testing Machine is used for measuring the metal material resistance performance

under dynamic load, in order to determine the material properties under dynamic load.

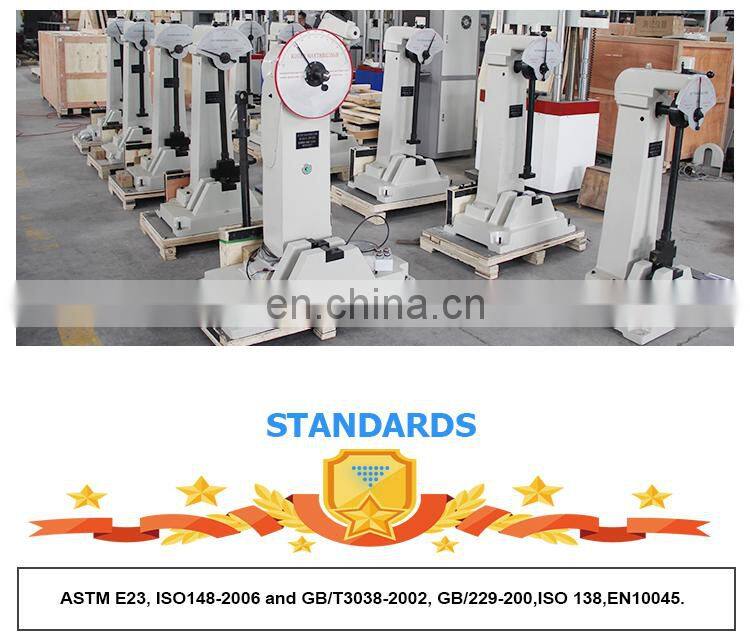

2. Standards:

ISO148, EN10045, ASTM E23, GB/T3808-2002, GB/T229-2007.

Technical Parameters

3. Main Technical Specifications:

Model	JB-300
Reading Of Dia	0-150J (1J/Grid); 0-300J(2J/Grid)
Impact Energy	150J, 300J
The Distance Between The Pendulum Shaft And Impact Point	800mm
Impact Speed	5.2 m/s
Pre-rising Angle Of The Pendulum	135°
Specimen Bearer Span	40+0.2mm
Round Angle Of The Jaw	R1-1.5mm
Round Angle Of Impact Edge	R2-2.5mm
Angle Accuracy	0.1°
Power Supply	Manual
Standard Specimen Dimension	10mm×10mm×55mm
Dimensions (mm)	1000×630×1520mm
Net Weight (kg)	320KG

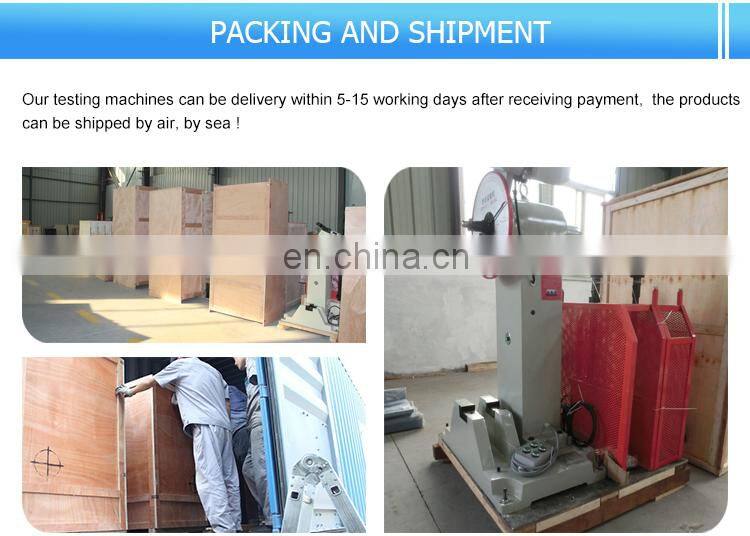

Packaging & Shipping
