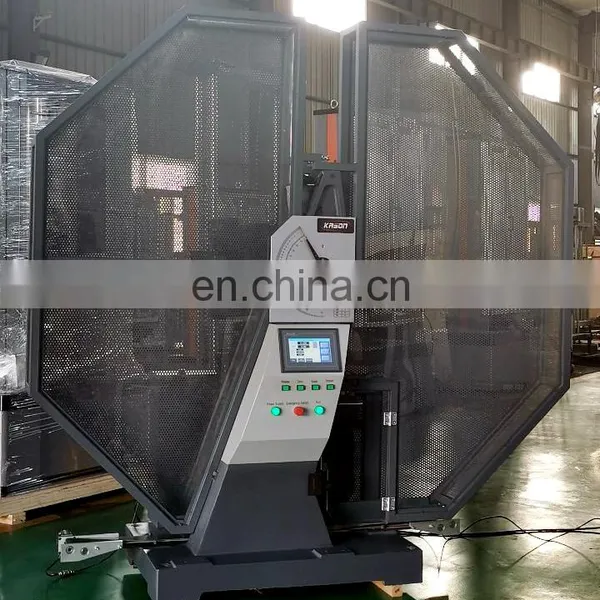

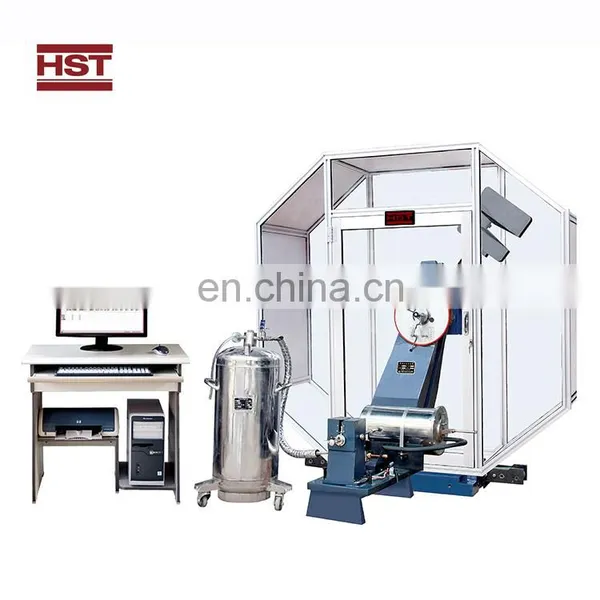

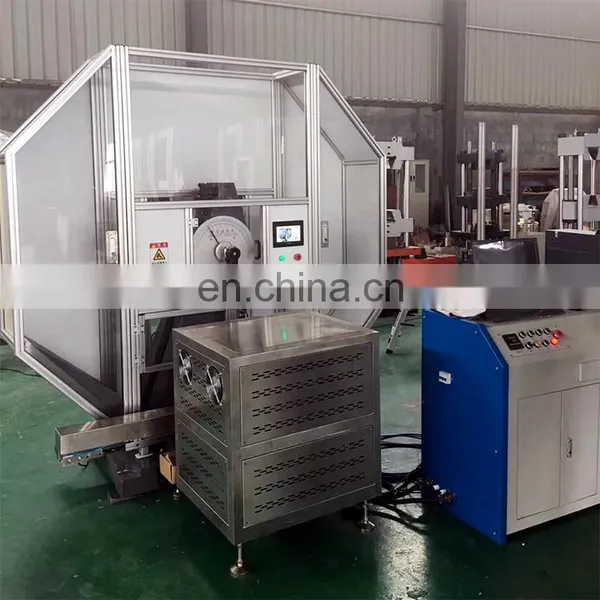

Liquid Nitrogen Refrigeration Computer Control Ultralow-temperature Automatic Charpy Impact Testing Machine
1.Application:
JBDW-CD Computer Control Ultralow-temperature Automatic Charpy Impact Testing Machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.
It’s a necessary testing machine, not only used in the metallurgy, machine manufacture etc areas, but also used for the science research.
The type uses PC computer control, it can achieve Raise Pendulum→Impact→Measure→Operation→Digital Display→Print etc computerized operations, high efficiency, high precision.
Especially for continuous impact test lab and do a lot of impact test metallurgy, machinery manufacturing and other industries.
The computer can calculate and display material impact absorbed energy, the pendulum Raise angle and test averages. It can achieve remote data transmission according to user needs.
3.Technical Specifications:
|
Model |
JBDW-300CD |
JBDW-450CD |
JBDW-600CD |
JBDW-750CD |
|
Control Method |
Computer Full Automatic Control |
|||
|
Max. Impact Energy |
300 J |
450 J |
600 J |
750 J |
|
Impact Speed |
5.24 m/s |
|||
|
Pre-rising Angle Of The Pendulum |
150° |
|||
|
Angle Accuracy |
±0.1° |
|||
|
Specimen Bearer Span |
40 mm |
|||
|
Round Angle Of The Jaw |
R 1.0~1.5 mm |
|||
|
Round Angle Of Impact Edge |
R 2.0~2.5 mm (Special Order: R8±0.05 mm) |
|||
|
Angle Of Impact Edge |
30° |
|||
|
Thickness Of Impact Knife |
16 mm |
|||
|
The Distance Between The Pendulum Shaft And Impact Point |
750 mm |
|||
