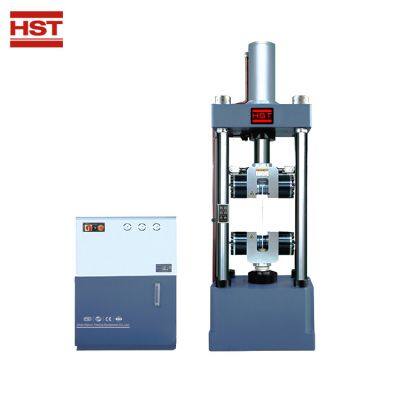

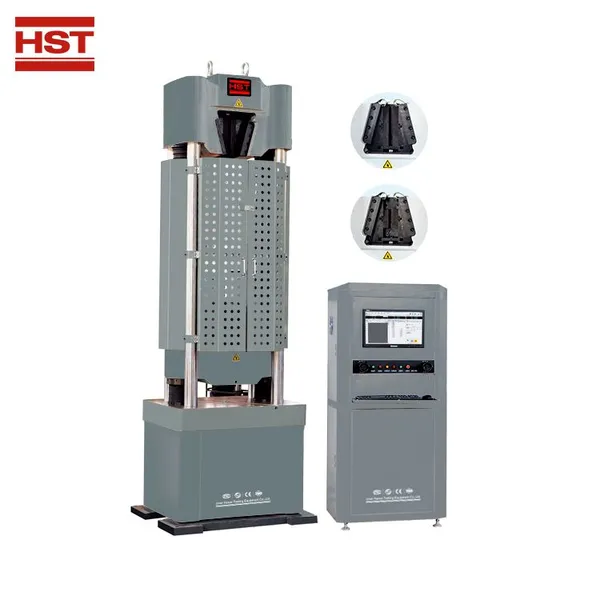

New design universal test weld equipment strenght testing machine for wholesales
1. Application
The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
2. Standards
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
3.Specifications:
|
Model |
WAW-100D WEW-100D |
WAW-300D WEW-300D |
WAW-600D WEW-600D |
WAW-1000D WEW-1000D |
WAW-2000D WEW-2000D |
|
Number of Screw drivers |
4 |
||||
|
Max. Load (KN) |
100 |
300 |
600 |
1000 |
2000 |
|
Load Accuracy |
≤± 1%/ ≤± 0.5% |
||||
|
Load Range |
2%~100%FS/ 0.4%~100%FS |
||||
|
Load Resolution |
1/300000 |
||||
|
Deformation Measurement Range |
2%~100%FS |
||||
|
Deformation Accuracy |
≤± 1% |
||||
|
Max. Piston Stroke(mm) |
200 |
200 |
250 |
250 |
250 |
|
Max. Tension Test Space(mm) |
780 |
780 |
800 |
950 |
1000 |
|
Max. Compression Test Space(mm) |
550 |
550 |
550 |
700 |
750 |
|
Clamping Method |
Hydraulic Automatic Clamp |
||||
|
Tensile fixture |
round :Φ10-Φ20,Φ20-Φ32 Flat :0-15mm |
round :Φ10-Φ20,Φ20-Φ32 Flat :0-15mm |
round :Φ13-Φ26,Φ26-Φ40 Flat :0-15mm |
round :Φ13-Φ26,Φ26-Φ40 Flat :0-15mm |
round :Φ15-Φ30,Φ30-Φ55,55-Φ70, Flat :10-40,40-70mm |
|
Flat Specimen Clamping Width |
80mm |
80mm |
90mm |
100mm |
150*120 |
|
Compression Plate Size |
Φ 160mm |
||||
Test Report (could edit from excel):
