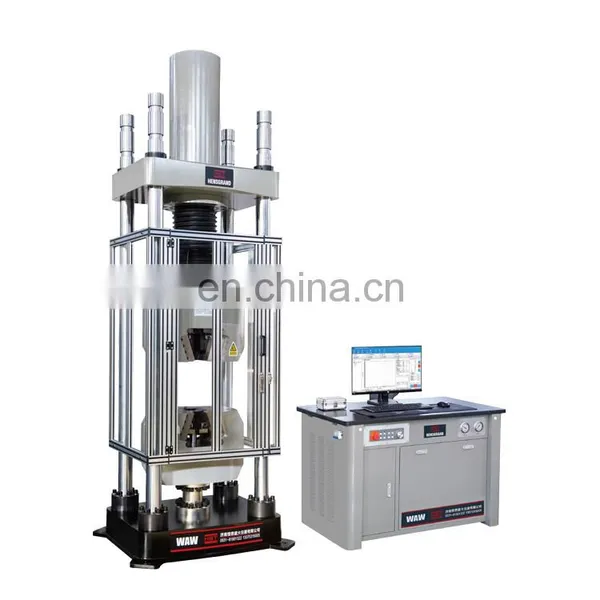

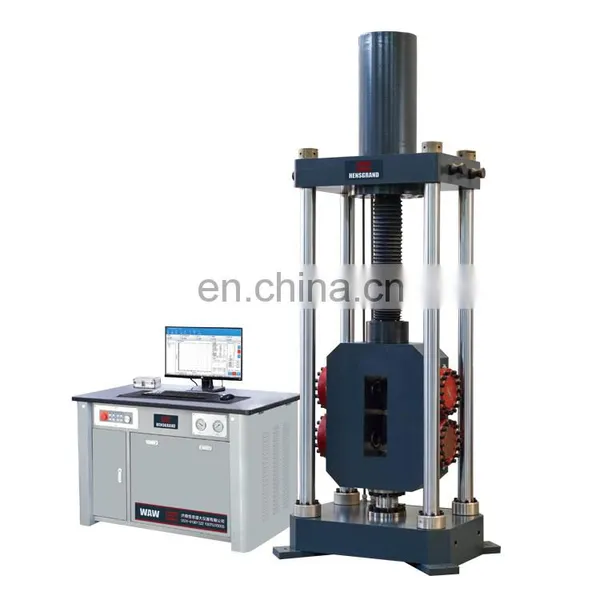

WAW-1000D Dial Metal Steel Tensile Test Machine/ Auto Steel Tension Test Equipment
1. Application
Hydraulic Steel Tension Test Equipment is suitable for tension, compression, bending, shearing,
peeling, tearing and other tests by adding different test fixture for metal and nonmetal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
2. Standards
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
3. Main specifications
|
Model |
WAW-100D |
WAW-200D WAW-300D |
WAW-600D |
WAW-1000D/E |
WAW-1200E |
WAW-2000E |
|
Control Way |
Constant stress uniform deformation constant displacement three closed loop control and program control dealing |
|||||
|
Number of Screw drivers |
4 |
|||||
|
Max. Load(KN) |
100 |
200 /300 |
600 |
1000 |
1200 |
2000 |
|
Load Accuracy |
≤± 1%/ ≤± 0.5% |
|||||
|
Load Range |
2%~100%FS |
|||||
|
Load Resolution |
1/300000 |
|||||
|
Deformation Measurement Range |
2%~100%FS |
|||||
|
Deformation Accuracy |
≤± 1% |
|||||
|
Displacement Resolution |
0.01mm |
|||||
|
Testing speeds (mm/min) |
0.1~118 |
0.1~123 |
0.1~123 |
0.1~70 |
0.1~70 |
0.1~70 |
|
Adjustable crosshead speed(mm/min) |
450 |
450 |
350 |
350 |
320 |
320 |
|
Displacement Error |
≤±0.5% |
|||||
|
Max. Piston Stroke(mm) |
200 |
200 |
200 |
200/250 |
250 |
250 |
|
Max. Tension Test Space (mm) |
780 |
780 |
900 |
950/980 |
930 |
1250 |
|
Max. Compression Test Space |
550 |
550 |
650 |
700 |
640 |
850 |
|
Column Effective Spacing(mm) |
485 |
485 |
500 |
560/580 |
610 |
800 |
|
Clamping Method |
Hydraulic Automatic Clamp |
|||||
|
Flat Specimen Clamping Width(mm) |
80*80 |
80*80 |
90*90 |
100*100 |
120*110 |
150*120 |
|
Compression Plate Size |
Φ 160mm |
|||||
|
Bending Roller Distance |
450mm |
|||||
|
Width Of Bending Rollers |
120mm |
|||||
|
Power Supply |
3-phase, AC380V, 50Hz (Can Be Customized) |
|||||
4. Our machine feaures:
1. It has three parts: Host & oil source &measurement control system
2. Automatic rise, down, test and stop
3. Deepen jaw seat can prevent trumpet-shaped deformation as non-uniform stress in the test, can improve the soundness and life, make holding more firm and smooth
4. Between the jaw seat and jaw plate added wear-resisting backing board, protect the jaw seat and card plate, making the jaw seat more flexible
5. Between the host base and screw using the cone bearing which make screw rotation more stable and reliable, while solved the gap influence in the test progress
6. The middle cross bar adopt the adjustable gap nut mechanism, eliminated the gap and improve the measuring performance
7. All inclusive type host designed to ensure that its super stiffness to resist loads trace deformation
Contact: Alice Skype: hssdtest What's APP / TEL: +86-15098778967 Ali: cn1001290168
