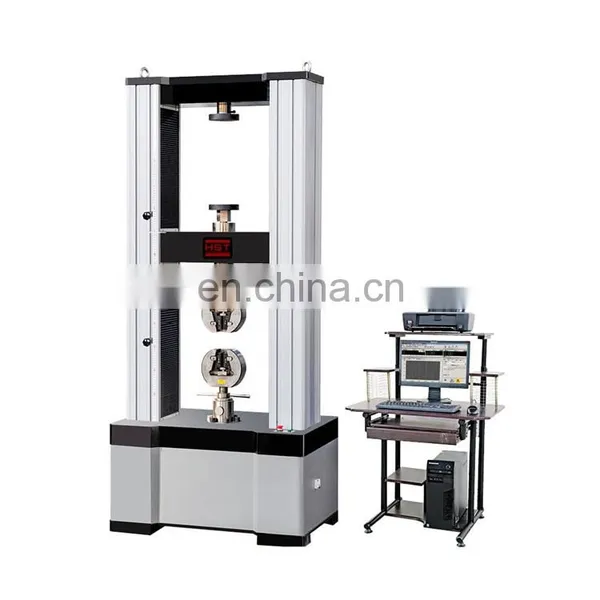

WDW- 500kn/ 600kn 500kn Computer Control Universal Tensile Strength electronics test equipment
1. Application:
WDW-E series computerized electronics test equipment are designed and manufacture
according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research
and development, test institutes and training centers etc.
2. Main Specifications:
Model | WDW-200E WDW-200 | WDW-300E WDW-300 | WDW-500E WDW-500 | WDW-600E WDW-600 |
Max. Load | 200kN 20000kgf 44800lbf | 300kN 30000kgf 67200lbf | 500kN 50000kgf 112000lbf | 600kN 60000kgf 134400lbf |
Load accuracy | ≤±0.5% | |||
Load range | 0.2%-100% of full scale | |||
Load resolution | 1/500000 of full scale | |||
Disp. resolution | 0.01mm | |||
Test speed | 0.01-200mm/min | |||
Tensile space | 600mm|21.6in | |||
Comp. space | 600mm|21.6in | |||
test width | 600mm | 600mm | 570mm | 570mm |
Grips | Manual(Hydraulic grip optional) | Hydraulic grip | ||
Dimension | 1110×750×2560mm | 1110×780×2600mm | ||
round specimen | Φ9-Φ26mm | Φ9-Φ32mm | ||
flat specimen | 0-20mm | 0-20mm | ||
Power supply | 380V, 3ph, 3KW | 380V, 3ph, 4KW | ||
Weight (kg) | 2100kg|4620lb | 2500kg|5500lb | ||
