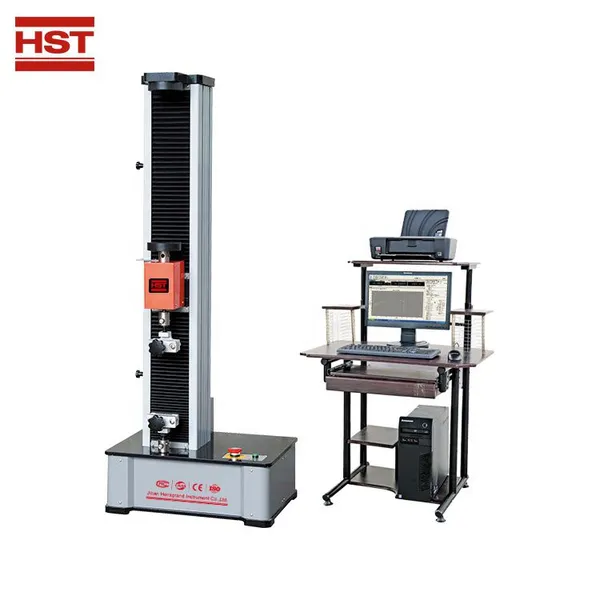

HST 3KN Computer Control Electromechanical Universal Testing Machine HST-WDW-3E
US$ 3000 - 4200
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
12months
Accuracy Class:
High Accuracy
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST 10-300KN 10KN 20KN 50KN 100KN 200KN 300KN Double Columns Electromechanical Universal Testing Machine HST-WDW-E SERIESUS$ 30500 - 82800MOQ: 1 Set -
HST-WDW -H SERIES/01-30KN Single Column Electromechanical Universal Testing Machine With 1 Year WarrantyUS$ 3000 - 3500MOQ: 1 Set
-
HST Laboratory Tensile Testing Machine Universal Tension Tensile Strength Test MachineUS$ 41987.40 - 48985.30MOQ: 1 Set
-
HST 1000kN Electromechanical Universal Tensile Testing MachineUS$ 230930.70 - 244926.50MOQ: 1 Set
-
HST Universal Testing Machine Compression and 300kn for Tensile Steel Material Testing MachineUS$ 41987.40 - 55983.20MOQ: 1 Set
Warranty
12months
Accuracy Class
High Accuracy
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing, Tensile, comprssion, bending test
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
Single Column Electromechanical Universal Testing Machine
MODEL
WDW-3E
Power supply
220V, 50HZ, 60HZ or customized
Sturcture
Single columns
Standard
ASTM , ISO, EN, GB, etc
Certificate
CE, ISO
Weight(KG)
110-150
Protection way
Overload, overcurrent, protection net, etc

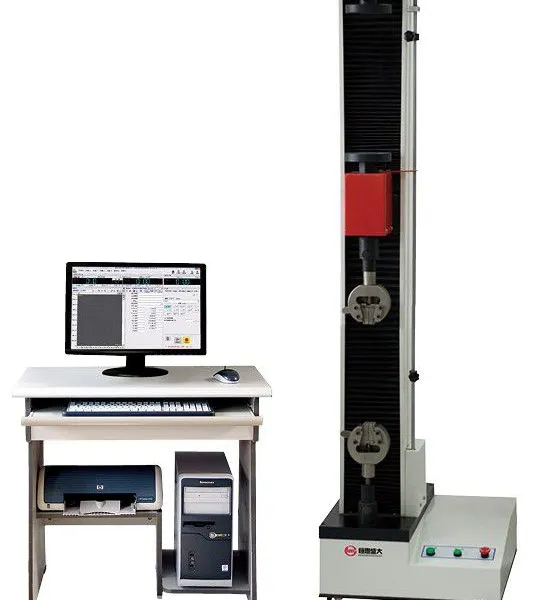

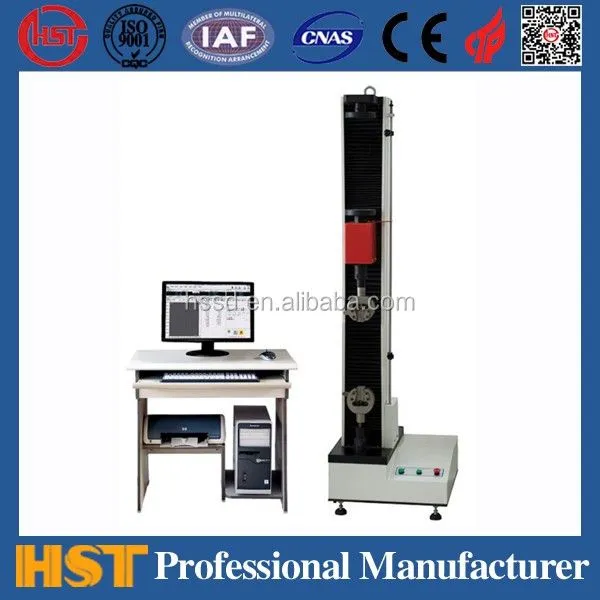

HST -WDW-3E 3KN Single column Electromechanical universal testing machine
Products Description
Application
flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips, fixtures,
compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils,
films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic
and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
WDWseries electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression,
flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips, fixtures,
compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils,
films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic
and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
Standards
Load meets or exceeds the following standards:ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
Model |
HST WDW-3E |
Load Capacity |
3KN |
Calibration standard |
Class 0.5 according to ISO 7500-1 - Meets ASTM E-4 |
Testing Load Accuracy |
±0.5% |
Testing Load Range |
0.4%-100%FS |
Load Resolution |
1/500,000FS |
Deformation measuring range |
0.2%—100%FS |
Deformation accuracy |
≤±0.5% |
Deformation resolution |
1/±500000FS of the max deformation |
Test control mode |
Three closed loop control, stress, strain and displacement |
Position accuracy |
Within ±0.5% of the value |
Displacement resolution |
0.01mm |
Crosshead speed range (mm/min) |
0.001-500mm/min |
Crosshead speed accuracy |
≤±0.2％ |
Constant force control range |
0.001％～5％FS/s |
Constant force control accuracy |
When the rate is < 0.05%FS/s, it is within ±2% of the set value; when the rate is ≥0.05%FS/s, it is within ±0.5% of the set value; |
Constant deformation control range |
0.005～5%FS/s |
Constant deformation control accuracy |
When the rate is < 0.05%FS/s, it is within ±2% of the set value; when the rate is ≥0.05%FS/s, it is within ±0.5% of the set value; |
Crosshead Travel |
800mm |
Max. Tensile Testing Space |
600 mm |
Max. Compression Testing Space |
600mm |
Compression Platen |
Ф100mm |
Power Supply |
AC220V±10%, 50Hz/60Hz |
Overall Dimensions (L*W*H) |
520*400*1340mm |
Weight |
110kg |
