Home > Instruments & Meters > Test Instrument > Test Machine > HST-WDW -H SERIES/01-30KN Single Column Electromechanical Universal Testing Machine With 1 Year Warranty
HST-WDW -H SERIES/01-30KN Single Column Electromechanical Universal Testing Machine With 1 Year Warranty
US$ 3000 - 3500
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
12months
Accuracy Class:
High Accuracy
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST Laboratory Tensile Testing Machine Universal Tension Tensile Strength Test MachineUS$ 41987.40 - 48985.30MOQ: 1 Set -
HST 1000kN Electromechanical Universal Tensile Testing MachineUS$ 230930.70 - 244926.50MOQ: 1 Set
-
HST Universal Testing Machine Compression and 300kn for Tensile Steel Material Testing MachineUS$ 41987.40 - 55983.20MOQ: 1 Set
-
WDW-50E 5T Double Column Wire 50kn Universal Tensile Strength Testing MachineUS$ 24500 - 28000MOQ: 1 Set
-
Fabric Double Column Universal Tensile Testing Machine Textile Tear Strength Testing MachineUS$ 24500 - 28000MOQ: 1 Set
Warranty
12months
Accuracy Class
High Accuracy
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing, Tensile, comprssion, bending test
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
Single Column Electromechanical Universal Testing Machine
MODEL
WDW-01,02,03,05,1,2,3,5H WDW-10H WDW-20H WDE-30H
Power supply
220V, 50HZ, 60HZ or customized
Sturcture
Single columns
Standard
ASTM , ISO, EN, GB, etc
Certificate
CE, ISO
Weight(KG)
110-120
Protection way
Overload, overcurrent, protection net, etc

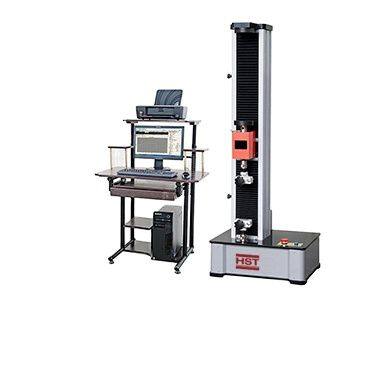

HST-WDW -H SERIES/01-30KN Single Column Electromechanical Universal Testing Machine
Products Description
Application
compression, flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips,
fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber,
plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and
medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
WDW series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension,
compression, flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips,
fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber,
plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and
medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
Standards
Load meets or exceeds the following standards:ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
Model |
WDW-01,02,03,05,1,2,3,5H |
WDW-10H |
WDW-20H |
WDW-30H |
|||
Max. Load(KN) |
01,02,03,05,1,2,3,5 |
10 |
20 |
30 |
|||
Calibration Standard |
ISO7500 |
||||||
Load Accuracy |
≤± 0.5% |
||||||
Load Range |
0.4％～100％F.S |
||||||
Displacement Resolution |
0.01mm |
||||||
Test speed(mm/min) |
0.05-1000 stepless arbitrary setting |
||||||
Test speed Accuracy |
within ± 0.5% set speed |
||||||
Tensile Space(mm) |
670 |
615 |
633 |
633 |
|||
Crosshead Travel Spacing(mm) |
670 |
615 |
633 |
633 |
|||
Working environment |
Room temperature 10℃～30℃，Relative humidity≤80℃ |
||||||
Grips |
Wave grips plate type and other grips as consumer's demand |
||||||
Dimension (mm) |
450*335*1351 |
500*400*1495 |
500*400*1525 |
||||
Gross Weight(kg) |
110 |
110 |
120 |
||||
Power Supply |
AC220V ±10%, 50Hz /60Hz(Can Be Customized) |
||||||
