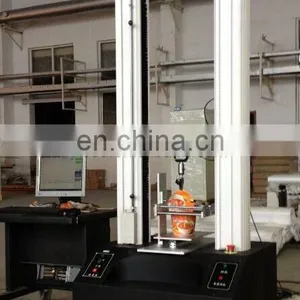

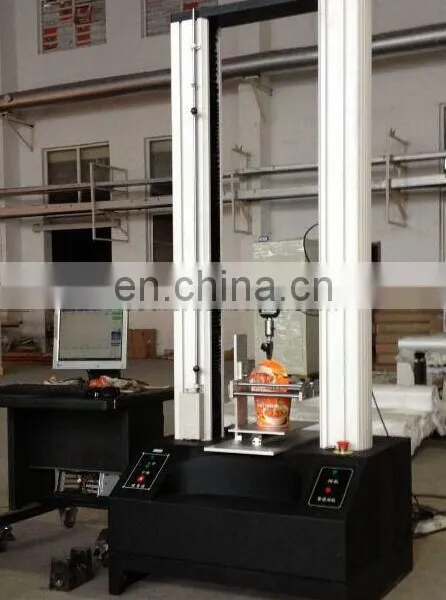

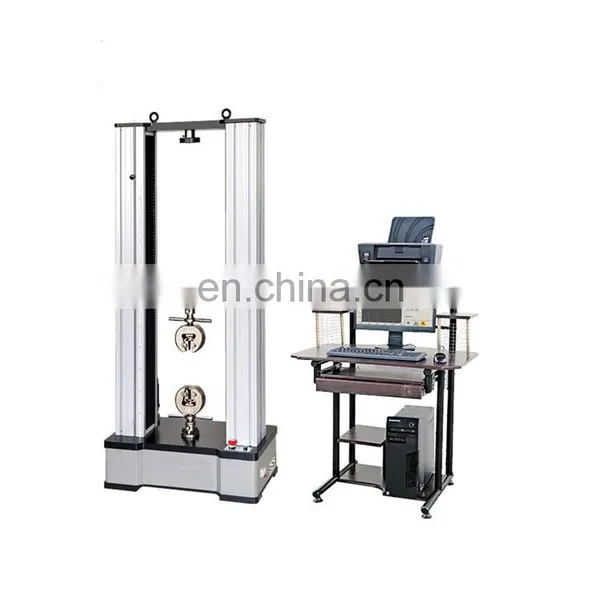

WDW-0 10kn Table Type Dual Column Tensile Testing Machine
Application:
WDW series Dual Column Tensile Testing Machine is suitable for wide range of material for tensile, compression, bending, split, cut, torn, punctured, burst, yield strength, elongation, nonproportional
strength, modulus of elasticity, and other parameters.
Test Material:
It is for metal, rubber, plastic, spring, textile, rope, glass and other composite materials testing.
It applies to aerospace industry, engineering inspection, university and college, iron and steel industry , research institution and other fields.Computer automatic control machine rise,
fall, test and stop etc. Easy operation, stable performance.
Technical parameter:
Model |
WDW-20 |
WDW-30 |
WDW-50 |
WDW-100 |
WDW-200/ 300 |
WDW-500/ 600 |
|||
Max. Load |
20kN |
30KN |
50KN |
100kN |
200kN |
300kN |
500kN |
600kN |
|
Structure |
Four-column Floor Type (upper is compression and lower is tensile) |
||||||||
Control model |
Constant stress, constant strain,constant displacement closedloop control System |
||||||||
Load accuracy |
1 class/ 0.5 class optional |
||||||||
Load range |
2%-100% of full scale /0.4%-100% optional |
||||||||
Load resolution |
1/300000 |
||||||||
Deformation test range |
2%~100% |
||||||||
Deformation accuracy |
≤±1% |
||||||||
Displacement accuracy |
≤±1% |
||||||||
Disp. resolution |
0.04um |
||||||||
Displacement speed |
0.05-500mm/min |
0.05-200mm/min |
|||||||
Tensile space |
600mm |
700mm |
550mm |
700mm |
|||||
Compression space |
600mm |
700mm |
550mm |
700mm |
|||||
Test width |
400mm |
450mm |
600mm |
650mm |
|||||
Clamp way |
Manual clamp / Hydraulic clamp (optional) |
Hydraulic clamp |
|||||||
Load Cell Configuration |
One(max load), more load cells can be added according to customer requirement |
||||||||
Extend configuration |
Large deformation extensometer, high or low temperature teste chamber, high temperature oven |
||||||||
Power supply |
AC220/380V±10%,50Hz (can be customized) |
||||||||
