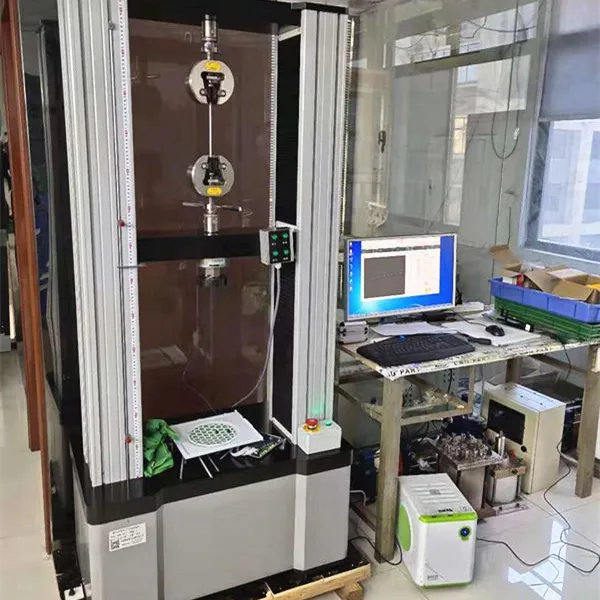

Help CenterRubber Plastic Fabric Paper Leather Wood Tensile Test Machine Universal Tension Tester
Related Products
-
100KN Plywood Bonding Static Bending Screw Griping Elastic Modulus Tensile Testing MachineUS$ 31490.55 - 34989.50MOQ: 1 Set -
MWW-10E 10kn Plywood Bonding Tensile Static Bending Strength Testing MachineUS$ 26592.02 - 31490.55MOQ: 1 Set
-
MWW-50 50kn Plywood Bonding Tensile Static Bending Strength Testing MachineUS$ 26592.02 - 31490.55MOQ: 1 Set
-
100kn Plywood Bonding Tensile Bending Strength TesterUS$ 26592.02 - 31490.55MOQ: 1 Set
-
HST MWW Series Auto Wood Composite Testing Machine - Tensile, Elastic Modulus, Hardness - GB/T17657-1999US$ 4500 - 7800MOQ: 1 Set

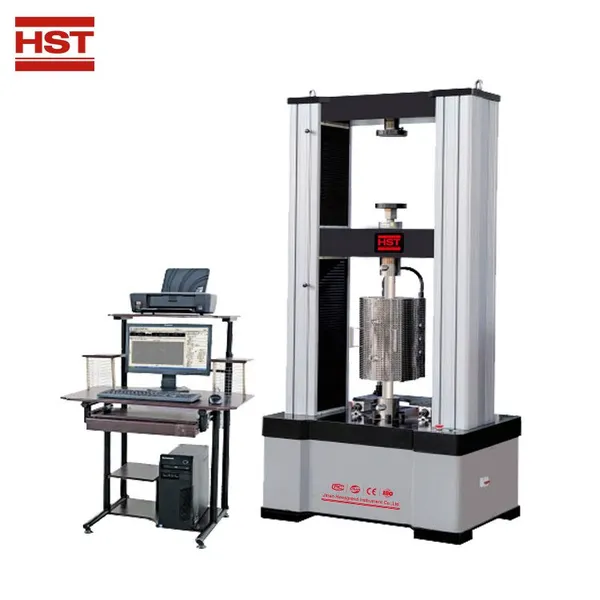

HST WDW-600E 600kn Steel Rebar Electromechanical Universal Tensile Strength Testing Machine
Application
This series electromechanical testing machines is designed according to ASTM, ISO, DIN, EN etc. standards. It is computer-controlled precision testing machine, suitable for extensive metallic & nonmetallic materials for tension, compression, bending, shearing and low cycle test etc. It features as high precision, high stability as well as high reliability. Equipped with PC system & printer, graph, test result display, data processing and printing can be done easily. Complete with modulus for metal, spring, textile, rubber, plastic and other material testing. It is widely used in many fields of such as industry factories, research & development, test institutes and training centers etc.
It adopts rigid load frames, high accurate load weighting system, advanced PCIE measuring & control system and intuitive modular application software. Configured with extensive range of accessories for various applications, it can provide the optimal testing solutions for your individual application needs. With abundant experience of 20 years of involvements in materials testing industry & application knowledge on all kinds of sectors, TE is capable of configuring the exactly suitable solutions & more accurately test system to customer involving the choice of load frame, core measuring & control elements, software package, grip/fixture etc based on their specified test application and
requirements.
Standards:
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846, EN 10002-4.
Safety: This machine shall conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN 61010-1
Metal:
ASTM E8, ISO 6892, BS EN 10002-1, ASTM E21, IS0 783, EN ISO 7438, ISO 14589, ASTM F606
Plastics/ Composites:
ASTM D638, EN ISO 6259, EN ISO 527-1, ISO 604, ASTM D695, ASTM D3846, EN ISO 844, EN ISO 13968, EN ISO 9969, etc.
Geo-textiles:
ASTM D3950, ASTM D 6775-02, BS EN ISO 10319, JBT 8521(EN 1492-2).Rubber: ISO 37, ASTM D41
|
Load Capacity (kN) |
5 |
10 |
20 |
30 |
50 |
100 |
|
Load accuracy |
Class 0.5 |
|||||
|
Testing Load Accuracy |
±0.5% |
|||||
|
Testing Load Range(FS) |
0.2%-100% |
|||||
|
Load Resolution |
1/500,000FS |
|||||
|
Deformation accuracy |
≤±0.5% of 0.4%~100% of rated capacity |
|||||
|
Position resolution (μm) |
0.025 |
|||||
|
Position accuracy |
±0.02mm or 0.5% of displacement (whichever is greater) |
|||||
|
Crosshead speed range(mm/min) |
0.001-1000 |
0.001-500 |
||||
|
Crosshead speed accuracy |
±0.5% of set speed (zero or constant load) |
|||||
|
Crosshead Travel(mm) |
1000 |
1100 |
||||
|
Max. Tensile Testing Space(mm) |
670 |
670 |
670 |
770 |
770 |
650 |
|
Max. Compression Testing Space(mm) |
900 |
900 |
900 |
1000 |
1000 |
1000 |
|
Test width (mm) |
450 |
450 |
450 |
450 |
450 |
550 |
|
Compression Platen(mm) |
98 |
98 |
98 |
98 |
98 |
98 |
|
Load cell |
High-precision USA load cell offers high stiffness, high stability, and high linearity Over-load protection ,lateral loading protection, Bi-direction allows tension and compression test Self-recognition (TEDS) function, Regular self-calibration |
|||||
|
Position limit switch |
Upper and lower lights |
|||||
|
Power Supply |
AC220V±10%, 50Hz/60Hz |
|||||
|
Overall Dimensions (L*W*H: mm) |
850 x 590 x 1750 |
840 x 570 x 1850 |
950x660x2000
|
|||
|
Net Weight(kG) |
370 |
370 |
370 |
420 |
420 |
680
|
|
Note: *Extra wide and/or extra height frames are available. *Power supply system is completely customizable. *Tensile space, test width, and speed is completely customizable. |
||||||
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,16 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 7-15days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional aftersale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate.
We can arrange engineer to train the operation of equipment to customer's company when you need.
products are widely recognized and trusted by users.
