100kn 200kn 300kn High Low Temperature Chamber Tensile Strength UTM Universal Tensile Testing Machine
Application
This series materials testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive KStest software.
Typical test applications for wide range of tension, compression, bending, shearing and low cycle test. include metal, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts, etc.
4. Parameters:
|
Load frame |
||||
|
Max. Load(kN) |
30 |
50 |
100 |
300 |
|
Tensile space(mm) |
700 (can be customized) |
|||
|
Compression space(mm) |
700 (can be customized) |
|||
|
Test width(mm) |
500(can be customized) |
|||
|
Travel distance(mm) |
1050 |
|||
|
Ambient temperature |
+10 ... +35 °C |
|||
|
Conformity |
ISO 9000 and CE |
|||
|
Force transducer |
||||
|
Load accuracy |
Class 1/ Class 0.5 |
|||
|
Load range |
2%~100%F·S/ 0.2%~100%F·S |
|||
|
Load resolution |
1/300000 |
|||
|
Displacement transducer |
||||
|
Resolution of deformation |
0.04um |
|||
|
Accuracy of displacement |
Within±0.5%of indicating load |
|||
|
Resolution of displacement |
0.01mm |
|||
|
Drive system |
||||
|
Motor |
AC servo-motor |
|||
|
Test speed(mm/min) |
0.05-500 |
0.05-500 |
0.05-500 |
0.05-200 |
|
within ±1% / ±0.5% of set speed |
||||
|
Power supply |
AC220V±10%,50Hz/60Hz (can be customized) |
|||
|
Video show
|
|
|||
|

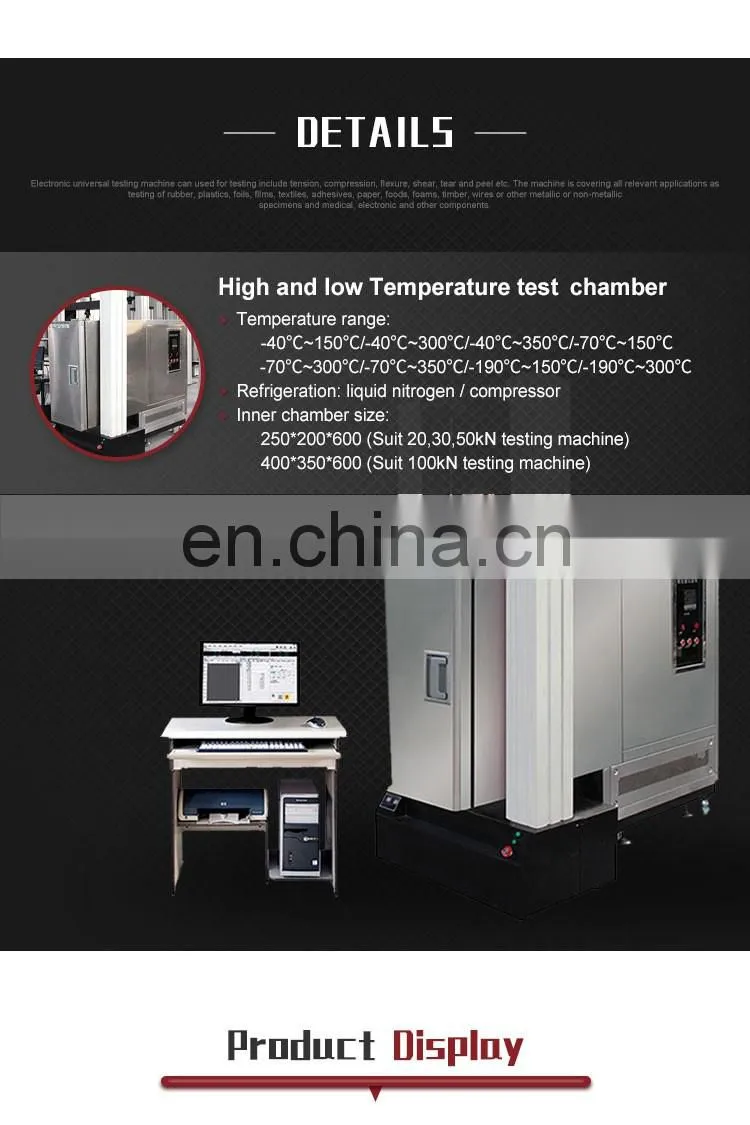

High Temperature Furnace |
||||
|
Temperature range |
-40/-70℃~150/300/350℃(compressor or liquid nitrogen) -190℃~~300℃/350℃(liquid nitrogen) 25℃~150/300/350℃
|
|||
|
Inner chamber size |
250*200*600(Suit 20,30,50KN testing machine) 400*350*600(Suit100KN testing machine) or can according to customer's requirement Door central position observation window no observation window (350℃) |
|||
