High Temperature Electric Furnace Use For Electronic Tensile Testing Machine

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2009

Factory Size:

1,000-3,000 square meters

Hst Group Co.,ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

High Temperature Electric Furnace Use For Electronic Tensile Testing Machine

1.Application:

Application to the tensile and creep relaxation strength test if the round specimen, rectangular specimen,

and tubular product and other products under GB/T4338 (metal material of high temperature tensile test

method), HB5195 (The metal high temperature tensile test method), GB/T2039 (the tensile creep rupture

and test method), HB5150 (metal high temperature tensile durable test method).

2.Structure:

The high temperature test furnace adopting cylinder open structure or monolithic construction, normally is

three step control. Mainly composed by test electric stove, temperature controller, high temperature rod,

high temperature chuck, ect. Can do high temperature tensile test of metal and non metal materials.

If normal temperature test, just move high temperature furnace away.

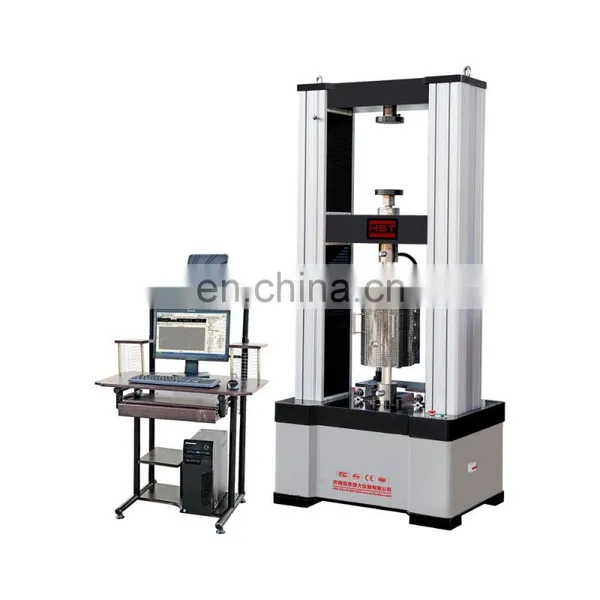

3.Connection With Testing Machine:

High temperature furnace test unit through the rotating arm which is installed on the mobile trolley column,

folding arm can be adjusted according to request any height and horizontal position, and can lock after

positioning. The normal temperature test, furnace body can be removed lightly.

4.Main Technical Parameter:

Model		HST-1100
Installation Way		Vertical Type
Working Temperature		200℃ ~ 1100℃ (Can Customize)
Long-term Working Temperature		1100℃
Heating Element Material		FeCrAl Resistance Wire
Furnace Wire Diameter		Φ1.5mm
Thermometric Element		K Type Temperature Measuring Thermocouple (Including Special Compensation Conductor)
Soaking Zone Length		100mm
Heating Sections Quantity		3
Temperature Measuring Point Number		3
Temperature Measuring Sensitivity		0.1℃
Temperature Measuring Accuracy		0.2%
Temperature Accuracy	Test Temperature (℃)	Temperature Departure	Temperature Gradient
		GB/T4338
	≤300~600℃	±3
	≥600~900 ℃	±4
	>900℃	±5
Heath Inner Diameter		Diameter * Length: Φ80 mm*360mm
Dimension		Diameter * Length: Φ300*450mm
Tensile Jig, Bar Sample		M12*Φ5
Temperature Measurement And Control System		HMI Human Computer Interface
Working Voltage		380V
Heating Power		Temperature Limit Power 5KW
Thermostat Specifications		High Precision Temperature Control Meter, Multilevel PID Adjust, Interval 1°C, Accuracy: 0.5°C
Temperature Fluctuation		±1°C
Uniform Temperature Zone Length		More Than 150mm
Size Of Oven Body		Hearth: Depth * Width* Height 650240400mm Overall Size: 1000390600mm
Material		Stainless Steel Inner Shell, Long Durability, Good Anti-corrosion Performance.
