Product Description

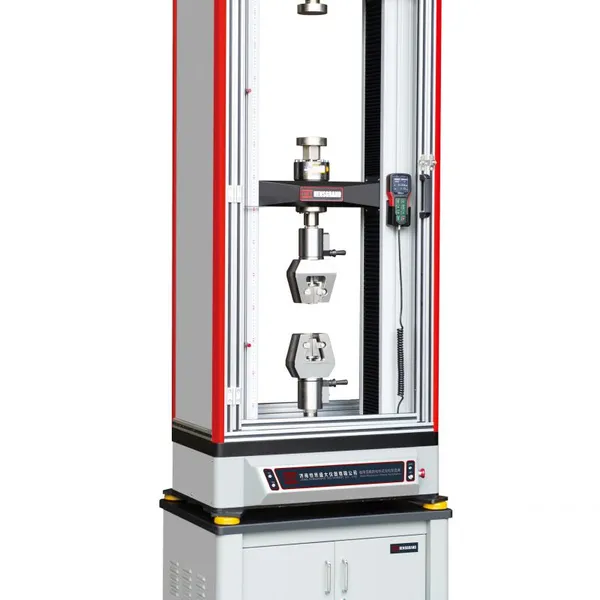

ASTM D6319 10 kN 2250 lbf Surgical rubber mitten tensile strength testing machine
1 .Application:
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software. Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
2. Test standard:
ISO6361-2-2014;ISO6892-1-2016;JIS H4000-2014;EN1396-2015;EN10002-1;EN485-2;EN14024;ASTM B209M-07;ASTM E8M-04;ASTM E9-89a(2000);ASTM E8M-08;AAMA TIRA8-08;SAE J2749;GB/T33227-2016;GB/T30069.1-2013;
Main Technical Parameters:
|
Model |
WDW-10kN |
WDW-20kN |
WDW-50kN |
WDW-100kN |
WDW-200kN WDW-300kN |
|||||
|
Max. Load(kN) |
10 |
20 |
50 |
100 |
300 |
|||||
|
Crosshead-Table distance |
1140 |
|||||||||
|
Tensile space(mm) |
800 |
800 |
700 |
700 |
550 |
|||||
|
Compression space(mm) |
800 |
800 |
700 |
700 |
550 |
|||||
|
Effective test width(mm) |
400 |
400 |
500 |
550 |
600 |
|||||
|
Ambient temperature |
+10 ... +35 °C |
|||||||||
|
Test speed |
6m/min & 100mm/s & 240in/min |
|||||||||
|
Force transducer |
||||||||||
|
Load accuracy |
Standard |
Class 1, Conforms to EN 10002-2 Grade1, ISO75001-1 Class 1, BS 1610 Class 1, ASTM E4, and JIS B7721 Class 1 |
||||||||
|
High-Precision |
Class 0.5, Conforms to EN 10002-2 Grade0.5, ISO75001-1 Class 0.5, BS 1610 Class 0.5, ASTM E4, and JIS B7721 Class 0.5 |
|||||||||
|
Load range |
2%~100%F·S/ 0.2%~100%F·S |
|||||||||
|
Load resolution |
1/500000 |
|||||||||
|
Displacement transducer |
||||||||||
|
Resolution of deformation |
0.04um |
|||||||||
|
Accuracy of displacement |
Within±0.5%of indicating load |
|||||||||
|
Resolution of displacement |
0.01mm |
|||||||||
We have digital model and computer control models for choice:
