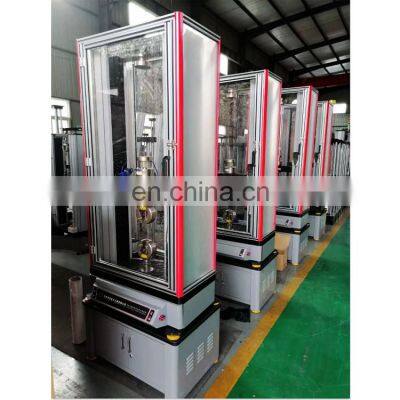

Static Car Safety Components/seat Belt/airbag Fibers Connectors Testing Machine

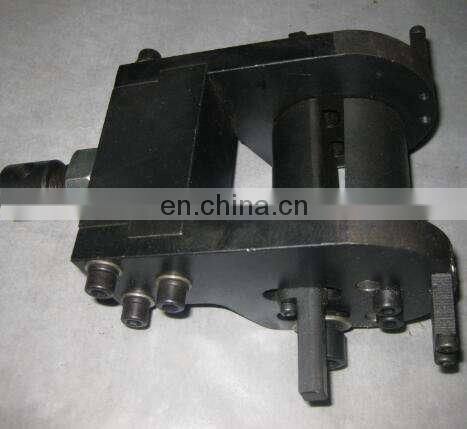

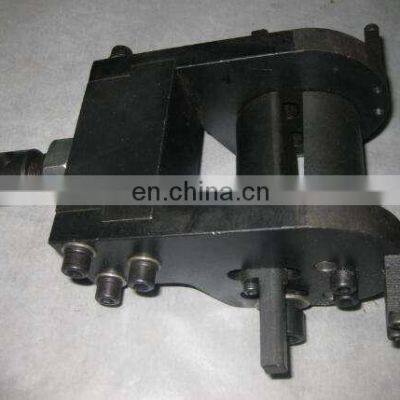

Will attach suitable fixtures for your seat belts and materials

1 .Application:

1.1 6m/min&100mm/s&240in/min Strain Control High Speed Tensile Testing Machine,test and Research on High Strain Tensile Properties of Body Coverings, Body Structures, Aluminum and Aluminum Alloy Plate and Aluminum and Aluminum Alloy Strips for Passenger and Passenger Cars

1.2 It is used for high-speed tensile of aluminum alloy composite strip, high-speed tensile of aluminum and aluminum alloy coating strip, high-speed tensile of aluminum alloy foil, high-speed tensile of aluminum alloy sheet strip of battery shell, high-speed tensile of aluminum alloy sheet of battery cover, high-speed tensile of aluminum alloy sheet of high-speed train, high-speed tensile of aluminum alloy strip of cable, high-speed tensile of aluminum alloy sheet of tank car, high-speed tensile of aluminum and aluminum alloy sheet of rail transit, high-speed tensile of aluminum alloy profile of vehicle structure, high-speed tensile of aluminum and aluminum alloy sheet strip of industrial use, high-speed tensile of deformed aluminum and its alloy sheet.

1.3 High-speed tensile of aluminum alloy composite strip, high-speed drawing of aluminum alloy coated strip, aluminum alloy foil

1.4 The real stress-strain test and research of high-speed tensile, filling and reinforced composite can be completed.

2. Test standard:

ISO6361-2-2014;ISO6892-1-2016;JIS H4000-2014;EN1396-2015;EN10002-1;EN485-2;EN14024;ASTM B209M-07;ASTM E8M-04;ASTM E9-89a(2000);ASTM E8M-08;AAMA TIRA8-08;SAE J2749;GB/T33227-2016;GB/T30069.1-2013;Aluminium and aluminium alloy sheets and strips used for motor;Coated aluminum and aluminum alloy strips for electrical components;Aluminium alloy clad sheets,;strips and foils for brazing;Aluminum and aluminum alloys plates,sheets and strips for cans and of new energy power batteries;Aluminium and Aluminium alloys used on EMU.Part4:Profiles;Copper clad aluminum plate,sheets and strips;Wrought aluminium alloy extruded profiles for architecture-Part6:Thermal barrier profiles;Test pieces and method for tensile test for wrought aluminium and magnesium alloys products;;Wrought aluminium and aluminium alloys-Sheets,strips and plates-Part2:Mechanical properties;Metallic materials-Tensile testing at high strain rates-Part1:Elastic-bar-type systems;

3. Safety Device

3.1 Stroke protection: Machinery,computer double protection, prevent over preset

3.2 Force protection: system setting

3.3 Emergency stop device: handing emergencies

4. General installation conditions and energy medium requirements

4.1 Temperature within the range 5c~35c

4.2 Relative humidity lower than 82%

4.3 In an environment without obvious magnetic interference and surrounding non-corrosive media

4.4 In a shock-free, vibration-free environment

4.5 Leave space not less than 0.7m around the tester, clean and dust-free work environment

4.6 The base and rack are properly installed on a solid level base

4.7 Power supply: AC 3Phrases 5 wires 220V±10% 50Hz 5 A

Main Technical Parameters:

We have digital model and computer control models for choice:
