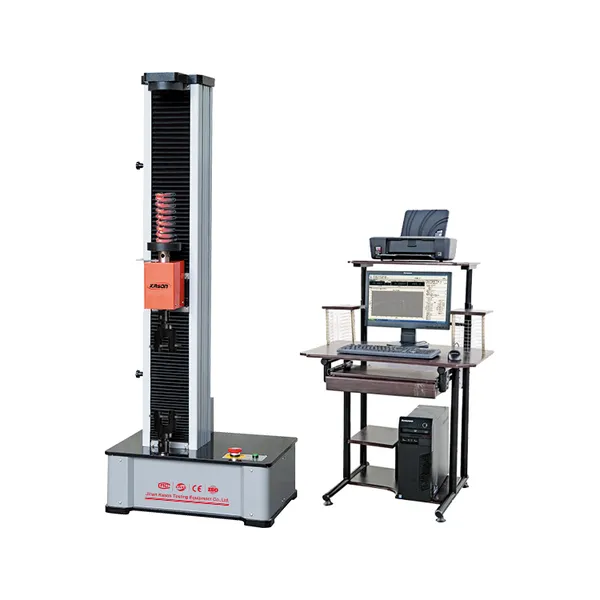

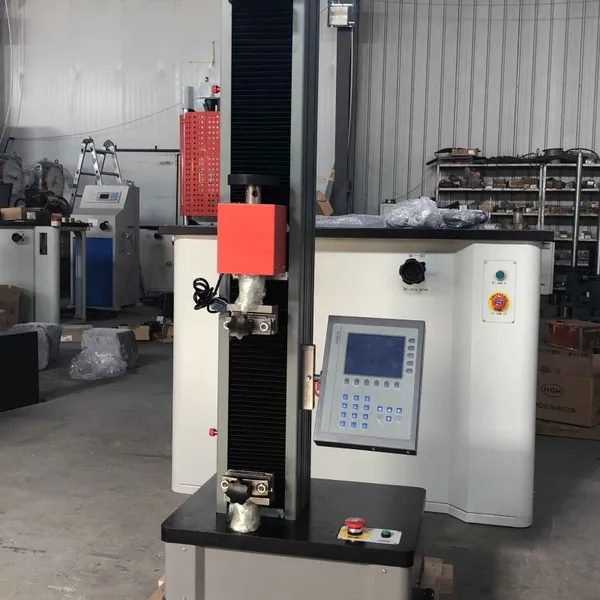

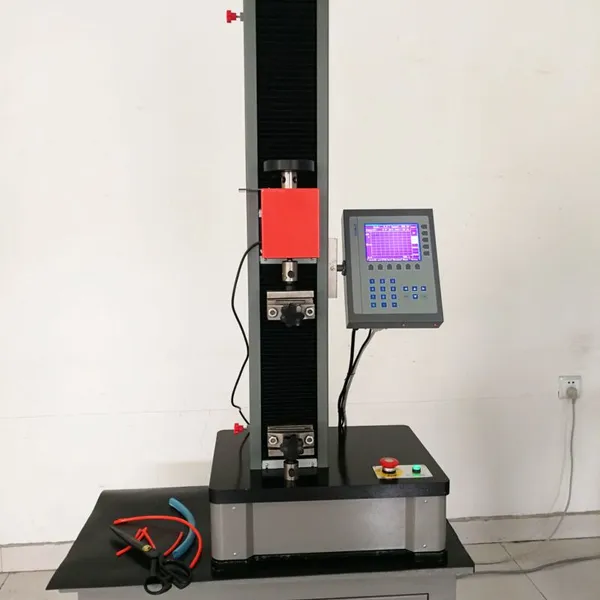

Peel Force Compression Pull Tensile Tester / Universal Testing Machine
1. Application:
WDS series digital display Universal Tensile Strength Testing Machine are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2.Main Specifications:
|
Model |
WDS-02 |
WDS-05 |
WDS-1 |
WDS-2 |
WDS-3 |
WDS-5 |
|
Max. Load |
0.2kN 20kgf 44.8lbf |
0.5kN 50kgf 112lbf |
1kN 100kgf 224lbf |
2kN 200kgf 448lbf |
3kN 300kgf 672lbf |
5kN 500kgf 1120lbf |
|
Load accuracy |
≤±1% |
|||||
|
Load range |
2%-100% of full scale |
|||||
|
Disp. resolution |
0.01mm |
|||||
|
Test speed |
0.05-500mm/min|0.001968-19.685in/min |
|||||
|
Tensile space |
750mm|30in |
|||||
|
Dimension |
550×350×1580mm |
|||||
|
Power supply |
220V, 1ph, 0.5KW |
|||||
|
Weight (kg) |
150KG|330lb |
|||||
