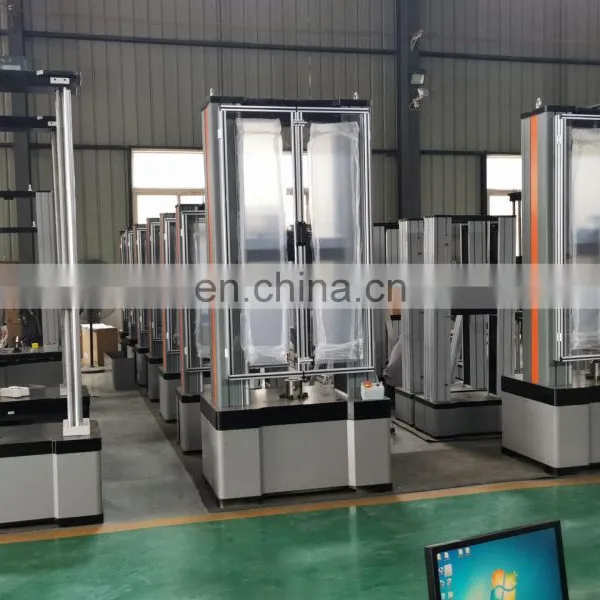

Scaffold Fastener Tensile Testing Machine

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2009

Factory Size:

1,000-3,000 square meters

Hst Group Co.,ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Scaffold fastener tensile testing machine

Product Description

1. Application

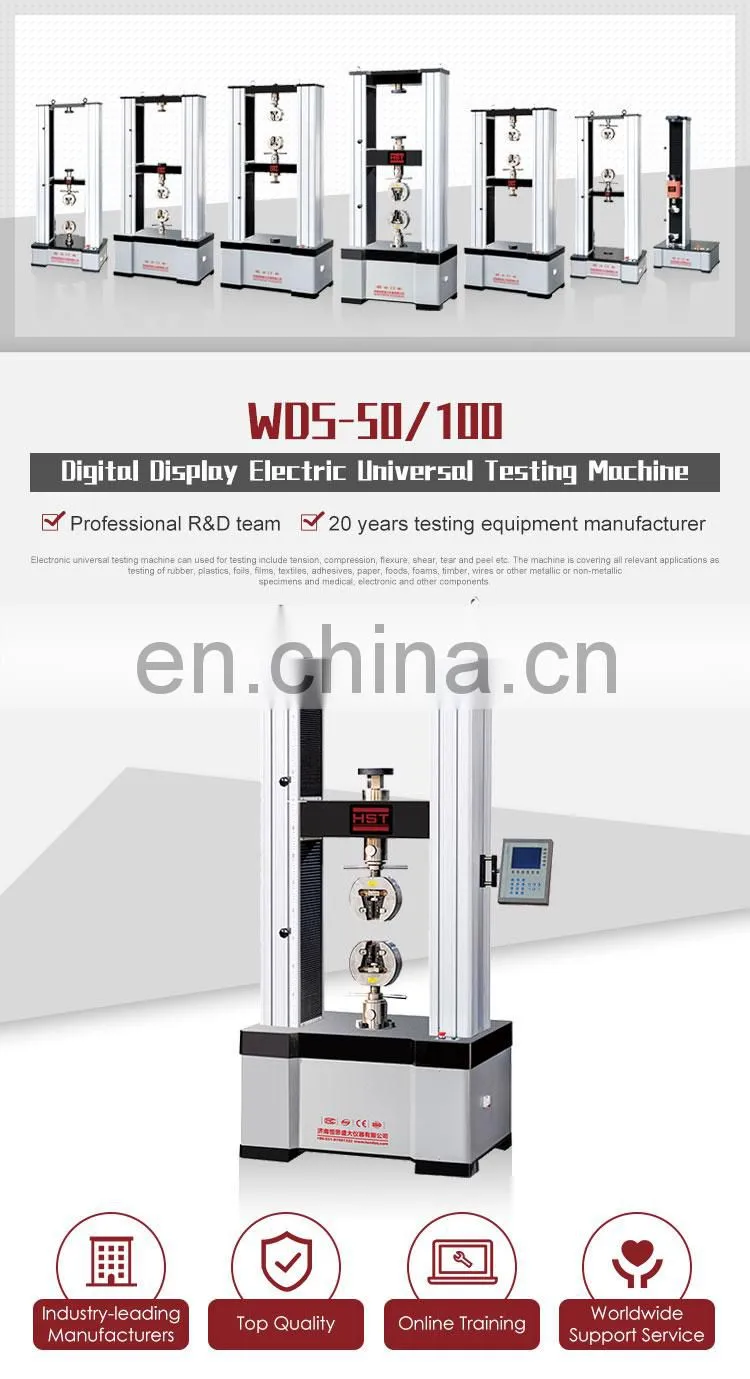

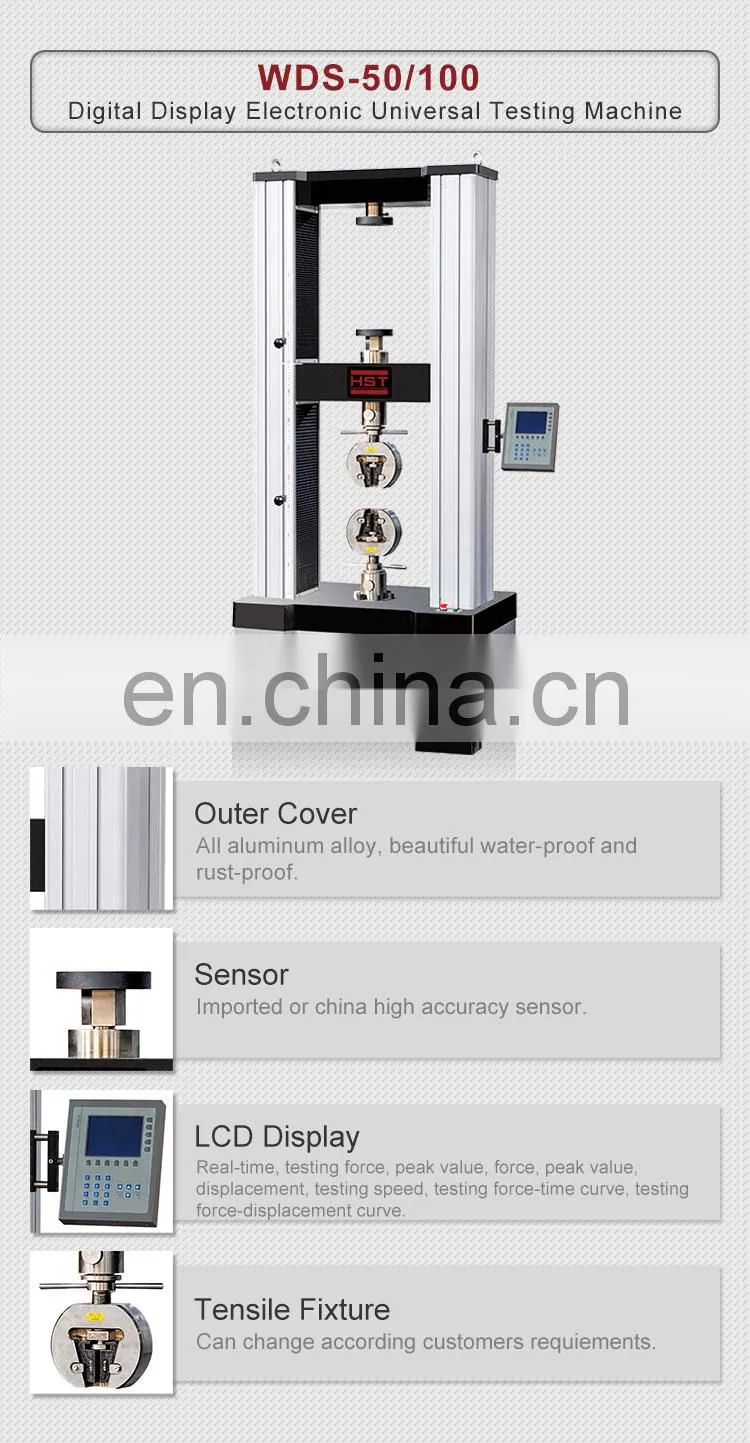

WDS series digital display electronic universal testing machines are designed and manufactured according to ASTM,

ISO, DIN, GB and other international standards. Applicable for wide range of material for tensile, compression,

bending, shearing and low cycle test. It is for metal, rubber, plastic, spring, textile, and components testing. Widely used

in corresponding industries, research and development, test institutes and training centers etc.

2. Specification

Model	WDS-100
Structure	Four-column floor or desk model, (upper is compression and lower is tensile)
Max. Load(kN)	100
Load accuracy	ISO 7500 Class 1
Load range	2%~100%F·S
Load resolution	1/ 50000
Resolution of displacement	0.01mm
Test speed(mm/min)	0.05-500 stepless arbitrary setting
Speed accuracy	within ±1% / ±0.5% of set speed
E-Tensile space(mm)	700 (can be customized)
E-Compression space(mm)	700 (can be customized)
D-Test width(mm)	550 (can be customized)
F-Beam travel distance(mm)	1150
H-Workbench thickness(mm)	68
I-Base height(mm)	460
Power supply	AC220V±10%,50Hz/60Hz(can be customized)
