Home > Instruments & Meters > Test Instrument > Test Machine > 200N Tensile Testing Machine for Checking the Breaking Strength and Elongation of Nylon Yarn and Polypropylene Yarn

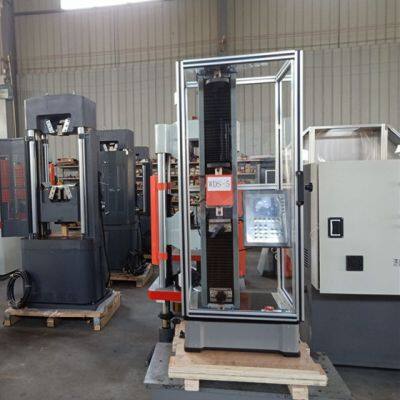

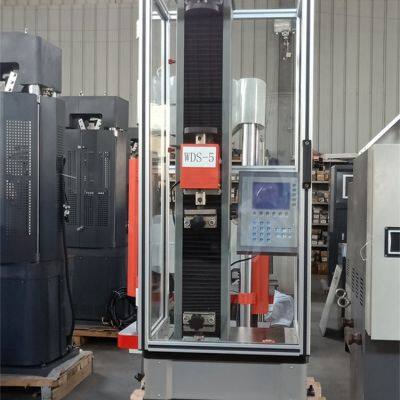

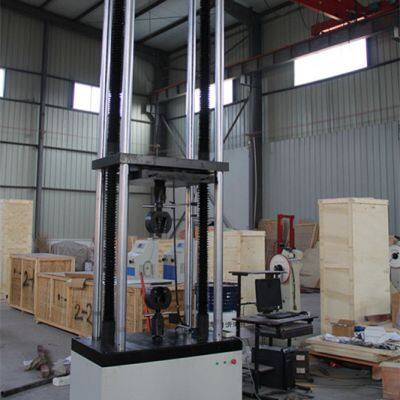

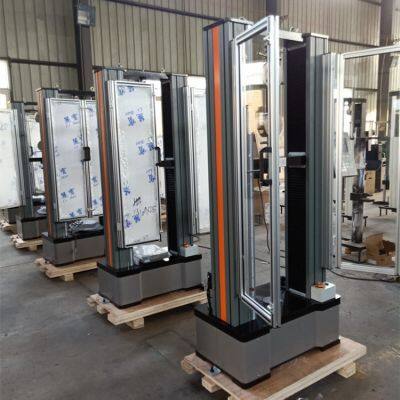

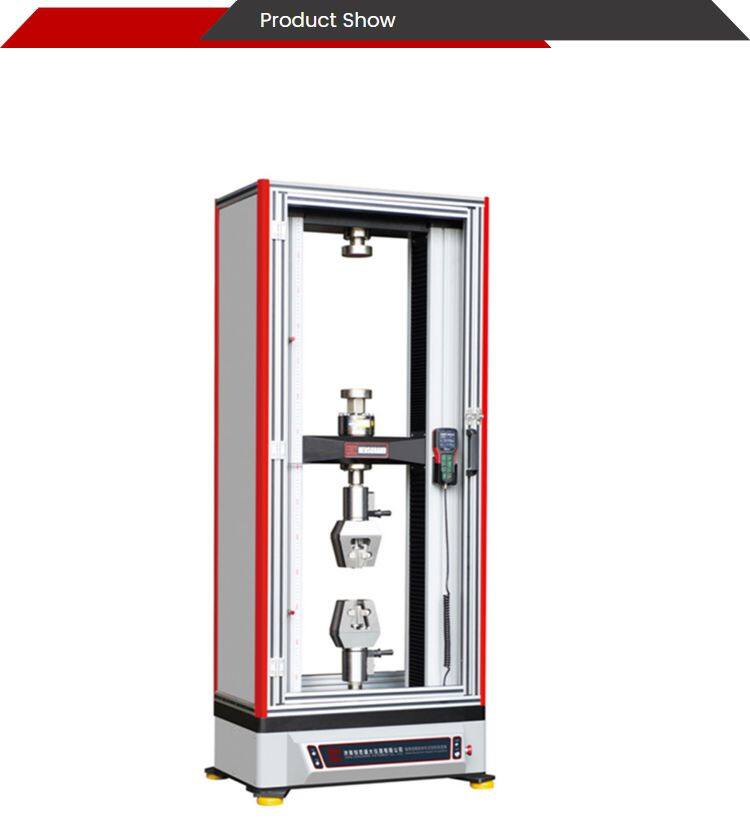

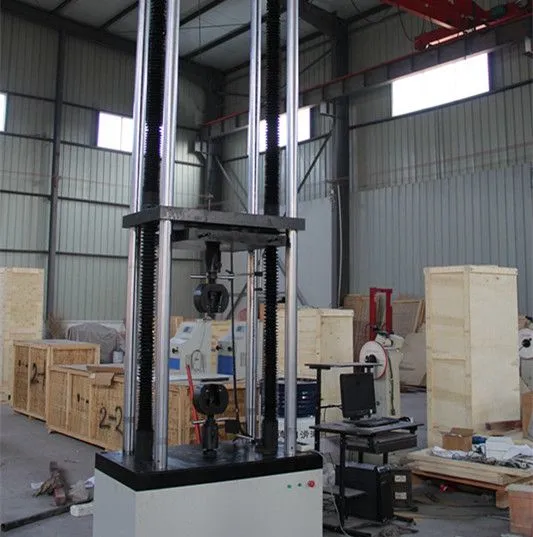

200N Tensile Testing Machine for Checking the Breaking Strength and Elongation of Nylon Yarn and Polypropylene Yarn

200N Tensile Testing Machine for Checking the Breaking Strength and Elongation of Nylon Yarn and Polypropylene Yarn thumbnail-3

200N Tensile Testing Machine for Checking the Breaking Strength and Elongation of Nylon Yarn and Polypropylene Yarn thumbnail-4

200N Tensile Testing Machine for Checking the Breaking Strength and Elongation of Nylon Yarn and Polypropylene Yarn thumbnail-5

200N Tensile Testing Machine for Checking the Breaking Strength and Elongation of Nylon Yarn and Polypropylene Yarn thumbnail-6

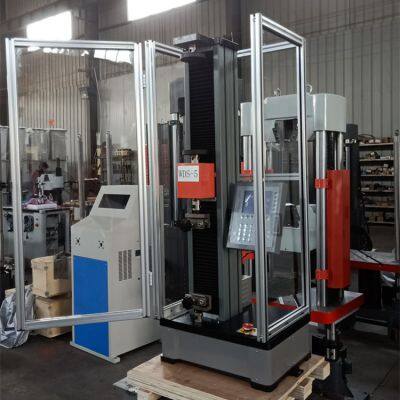

200N Tensile Testing Machine for Checking the Breaking Strength and Elongation of Nylon Yarn and Polypropylene Yarn photo-1

200N Tensile Testing Machine for Checking the Breaking Strength and Elongation of Nylon Yarn and Polypropylene Yarn photo-2

200N Tensile Testing Machine for Checking the Breaking Strength and Elongation of Nylon Yarn and Polypropylene Yarn photo-3

200N Tensile Testing Machine for Checking the Breaking Strength and Elongation of Nylon Yarn and Polypropylene Yarn photo-4

200N Tensile Testing Machine for Checking the Breaking Strength and Elongation of Nylon Yarn and Polypropylene Yarn photo-5

200N Tensile Testing Machine for Checking the Breaking Strength and Elongation of Nylon Yarn and Polypropylene Yarn photo-6

US$ 45486.35 1 - 4 Set

US$ 43386.98 ≥5 Set

Key Specifications

Get Latest Price

Warranty:

1 Year

Model Number:

WDW single column

Brand Name:

HST

Contact Supplier Request Quote Chat Now

Hst Group Co.,ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Warranty 1 Year

Model Number WDW single column

Brand Name HST

Place of Origin Shandong, China

Max test force 1KN/2KN/3KN

Load accuracy 1 CLASS

Load range 2%~100% FS

Disp. resolution 0.01mm

Test speed 0.05-500mm/min

Color white and black

clamp type Manual clamp

Compression space 600mm

Tensile space 600mm

Control Method computer control

Customized support OEM, ODM, OBM, Software Reengineering

Power Electronic

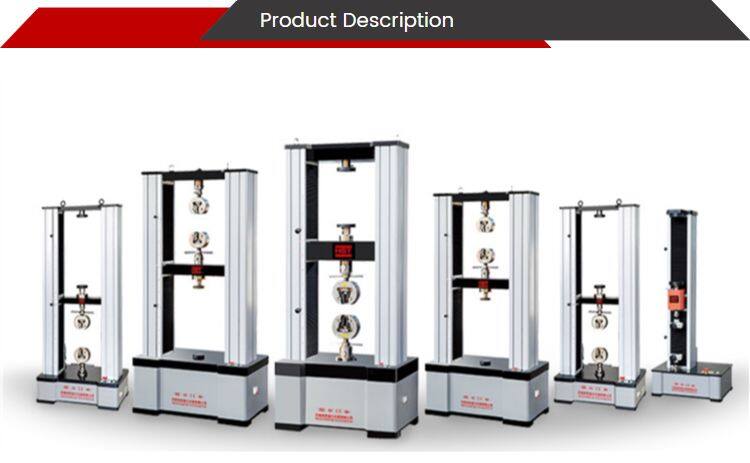

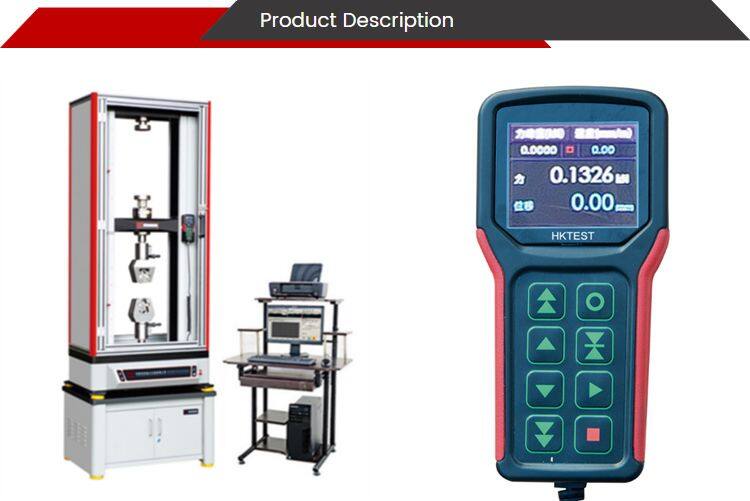

1. Application

It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

2. Standards

ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,

GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc

Model	WDW-10	WDW-10E	WDW-20	WDW-20E
Max. Load(kN)	10	10	20	20
Load accuracy	Class 1	Class 0.5	Class 1	Class 0.5
Load range	2%~100%F·S	0.2%~100%F·S	2%~100%F·S	0.2%~100%F·S
Load resolution	1/300000
Resolution of deformation	0.04um
Accuracy of displacement	Within 0.5%of indicating load
Resolution of displacement	0.01mm
Test speed(mm/min)	0.05-1000 stepless arbitrary setting
Speed accuracy	within 1% / 0.5% of set speed
E-Tensile space(mm)	800 (can be customized)
E-Compression space(mm)	800 (can be customized)
D-Test width(mm)	400 (can be customized)
F-Beam travel distance(mm)	1140
H-Workbench thickness(mm)	30
I-Base height(mm)	210
Power supply	AC220V10%,50Hz/60Hz (can be customized)

HST Group

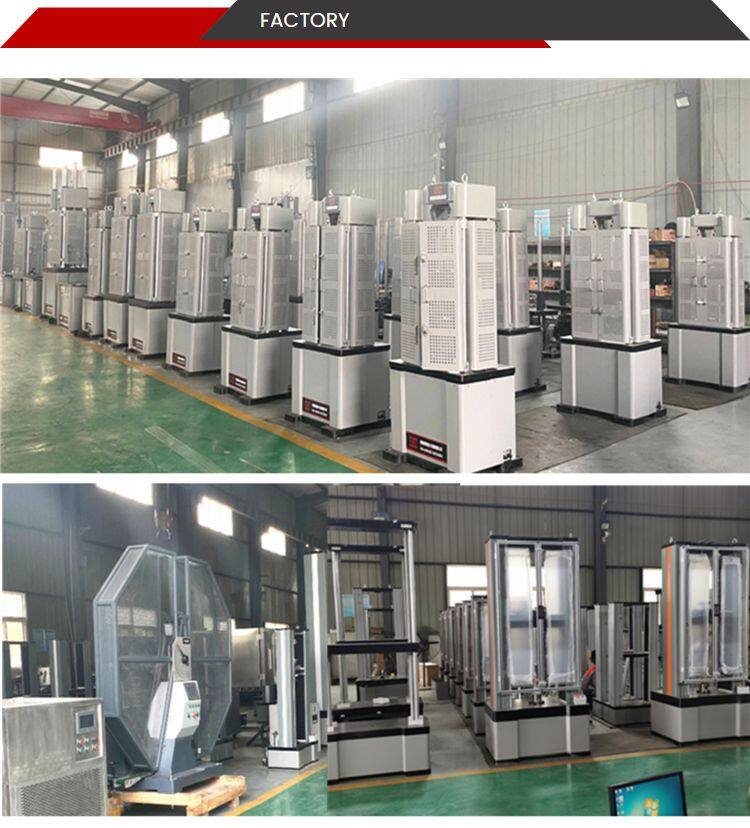

HST GROUP is specialized in developing and manufacturing testing equipments for metal ,non-metal and composite materials with all kinds of testing standards of GB,ISO,ASTM,BS, EN etc.Our main products contains the followings with CE and ISO certifications:Tensile Testing Machine, Electronic Universal Testing Machine, Hydraulic Universal Testing Machine, Impact Testing Machine, Compression Testing Machine, Torsion Testing Machine, etc.With modernized standard workshops and advanced production tools and machinery, we have strong ability to research and develope new production independently. With enough technical engineers , skilled workers and after-sale services team , we are able to supply best test solutions ,machines and services.We sincerely welcome customers from home and abroad to visit us, let''s make progress together and reach win-win cooperation!

Transport mode: Free sample is available once you accept the freight collect

Payment term: 30% T/T, L/C at sight

FAQ

1.Are your company a trading one or a factory ?
Factory + trade (integration),18 years focusing on test instruments field,13 years exporting experience.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.What''s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 3-10 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don''t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 110 countries, like USA, Canada, Russia,UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam, Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won''t be damaged. We''ve delivered many testing machines abroad by sea or by air without damage.
9.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
10.How to install and use the product
The product is shipped with an operating instructions and video of English version.
