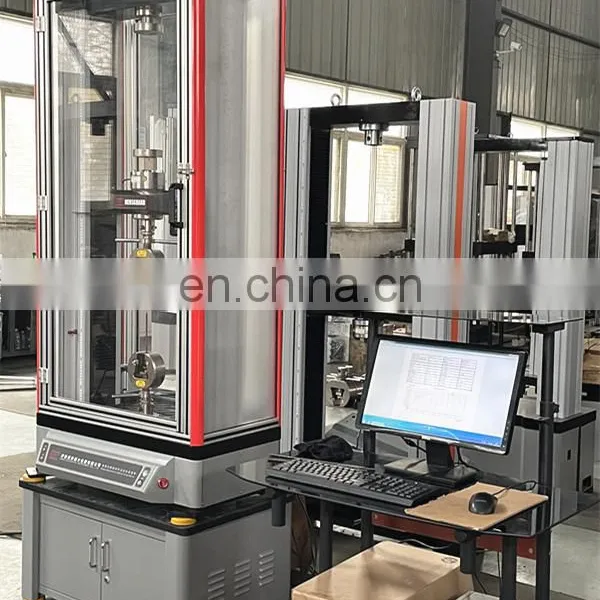

UTM Electronic Extensometer for Universal Testing Machine Use YYU/YYJ/YYS

Main Feature

1.1 YYU series axial deformation extensometer, which is applicable to metal, non-metallic material test. It includes regular extensometer, average strain extensometer, special extensometer (large standard steel hinge line, concrete, rocks, wood, etc.) Used to measure elastic modulus E, provisions non-proportional extension intensity RP, stipulated total extension strength RT, various elongations, strain hardening exponent N and other parameters.

1.2 YYJ series fracture mechanics and the lateral deformation of extension plan, is used to measure Poisson's ratio U, plastic strain R, KIC, COD parameters.

Also used in reverse shear modulus G, regulation disproportional torsion stress RP (for example Rp0.015, Rp0.3, etc.) of the torsion extensometer.

1.3 YYS series 0.5 level high-precision axial static, dynamic extensometer.

Technical parameters

1. The strain gauge resistance: 350 ohms

2. Bridge voltage value: acuities 6V (dc, ac all can)

3. Output sensitivity: about 2mV/V

4. Extensometer gauge length: YYU series20~200 mm, YYJ series 5~25 mm

5. Maximum deformation: YYU series25 mm, YYJ Series 4mm

6. Output terminal connector: four core or five core plugs, etc

The above is general parameters, if users have special requirements, we can provide special

production according to need. Please inform us when ordering.

Q1:Are your company a trading one or a factory?

A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.

Q2:After an order is placed, when to deliver?

A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.

Please be aware that our production lead times depend on specific items and item quantities.

Q3:What about the warranty with after - sales services?

A:The testing machine is guaranteed for 16 months by HST,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest

problems and complaints in a professional and timely.

Q4:What about the product' services and quality?

A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. Products are widely recognized and trusted by users.
