100KN Computer-controlled High and Low Temperature Box -60℃-300℃ Class 0.5 Electronic Universal Testing Machine HST-EGD100
US$ 11150 - 13380
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST Installation-free Hot Sale Laboratory Computer Universal Strength Material Tensile Testing Machine Price Test EquipmentUS$ 45486.35 - 48985.30MOQ: 1 Set -
300KN WDW Electronic Universal Testing Machine Computer Control Model HST WDW-300E 300KN Double Columns Class 0.5US$ 13400 - 19083MOQ: 1 Set
-
200KN Computer Control Electronic Universal Testing Machine Factory Price HST WDW-200E 200KN Double Columns Class 0.5US$ 13000 - 17867MOQ: 1 Set
-
100KN Double Columns Computer Control Electronic Universal Testing Machine HST WDW-100E Class 0.5 Taiwan DELTA AC Servo MotorUS$ 5700 - 7633MOQ: 1 Set
-
50KN Computer Control Electronic Universal Testing Machine Factory Price HST WDW-50E 50KN Double Columns Class 0.5US$ 5050 - 6917MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing, Tensile, comprssion, bending test
customized support
OEM, ODM
power
/KW
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
Electromechanical Universal Testing Machine
Model
HST-EGD100
Load Capacity (kN)
100
Load accuracy
Class 0.5
Testing Load Accuracy
±0.5%
Testing Load Range(FS)
0.2%-100%
Load Resolution
1/500,000FS
Operating temperature range
-70 -300℃

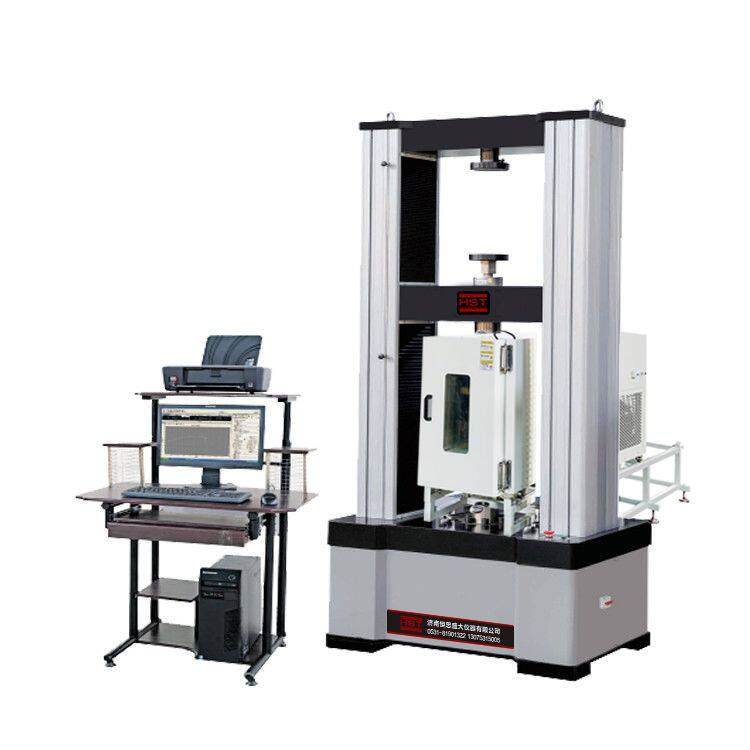

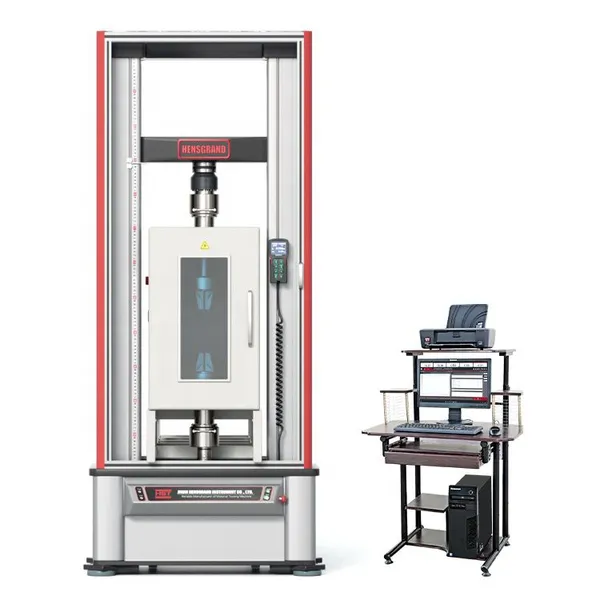

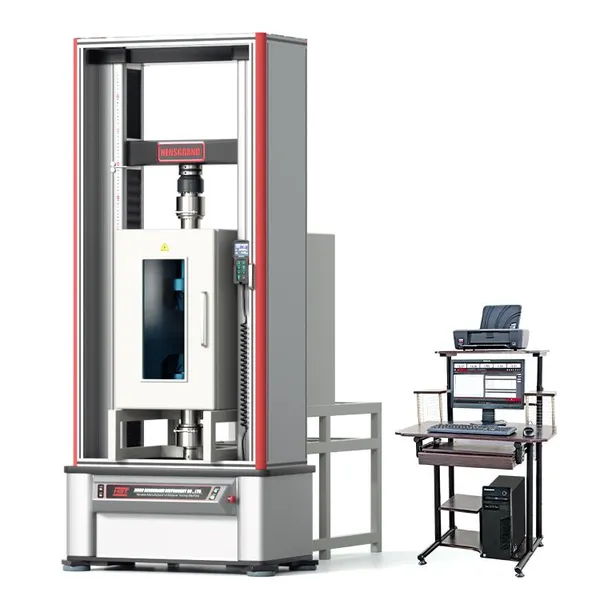

HST-EGD100 Computer-controlled high and low temperature box electronic universal testing machine
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application:
This series testing machines is mainly suitable for rubber, plastic profile, plastic pipe, sheet, sheet, film, wire and cable,
waterproof coil, wire and other materials in high temperature or low temperature environment, tensile, compression, bending,peeling, tearing, shear and other mechanical properties of the test; It is very convenient for users to carry out research and
development, qua lity control work, and is an ideal testing instrument for industrial and mining enterprises, commodity inspection arbitrati on, scientific research units, colleges and universities, engineering quality departments.
waterproof coil, wire and other materials in high temperature or low temperature environment, tensile, compression, bending,peeling, tearing, shear and other mechanical properties of the test; It is very convenient for users to carry out research and
development, qua lity control work, and is an ideal testing instrument for industrial and mining enterprises, commodity inspection arbitrati on, scientific research units, colleges and universities, engineering quality departments.
Applied Standards:
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846, EN 10002-4. Safety: This machine shall
conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN 61010-1
Metal: ASTM E8, ISO 6892, BS EN 10002-1, ASTM E21, IS0 783, EN ISO 7438, ISO 14589, ASTM F606
Plastics/ Composites: ASTM D638, EN ISO 6259, EN ISO 527-1, ISO 604, ASTM D695, ASTM D3846, EN ISO 844, EN ISO 13968, EN ISO9969,
etc.
Geo-textiles: ASTM D3950, ASTM D 6775-02, BS EN ISO 10319, JBT 8521(EN 1492-2).Rubber: ISO 37, ASTM D41
Load Frame: The frames all incorporate human factor considerations in the design to ensure safety, reduce operator fatigue, and
provide the highest level of flexibility. Extremely robust crosshead guidance is incorporated in all frame designs providing the
highest level of lateral crosshead stiffness.
Load cell is with high accuracy interchangeable for all frames allowing each frame to operate full capacity.
High accuracy: The preloaded precision ball-screw with high speed & low noise ensures high speed and position measurement accuracy
and less noise.
High stiffness: The load frame is with 4 columns and heavy duty pre-loaded bearings. Preloaded ball screws, precision guidance
columns, and a symmetrical drive system improve frame stiffness and alignment
Safety features: The testing machine stops automatically when the change in the test force exceeds a specified value during
operations.
Over-Travel Limits
Dual over-travel limits, located on the front console, help prevent crosshead overshooting and sensor overloads. A graduated rule
along the column can be used to preset these limits to specific distances.
Large space in the working area: The insides of columns provide wide space for the operator.
Over-stroke limiter: The range of the crosshead movement mechanically limited.
Comfortable working area
The wide legroom under the load unit provides a comfortable working area for attaching and removing jig
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846, EN 10002-4. Safety: This machine shall
conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN 61010-1
Metal: ASTM E8, ISO 6892, BS EN 10002-1, ASTM E21, IS0 783, EN ISO 7438, ISO 14589, ASTM F606
Plastics/ Composites: ASTM D638, EN ISO 6259, EN ISO 527-1, ISO 604, ASTM D695, ASTM D3846, EN ISO 844, EN ISO 13968, EN ISO9969,
etc.
Geo-textiles: ASTM D3950, ASTM D 6775-02, BS EN ISO 10319, JBT 8521(EN 1492-2).Rubber: ISO 37, ASTM D41
Load Frame: The frames all incorporate human factor considerations in the design to ensure safety, reduce operator fatigue, and
provide the highest level of flexibility. Extremely robust crosshead guidance is incorporated in all frame designs providing the
highest level of lateral crosshead stiffness.
Load cell is with high accuracy interchangeable for all frames allowing each frame to operate full capacity.
High accuracy: The preloaded precision ball-screw with high speed & low noise ensures high speed and position measurement accuracy
and less noise.
High stiffness: The load frame is with 4 columns and heavy duty pre-loaded bearings. Preloaded ball screws, precision guidance
columns, and a symmetrical drive system improve frame stiffness and alignment
Safety features: The testing machine stops automatically when the change in the test force exceeds a specified value during
operations.
Over-Travel Limits
Dual over-travel limits, located on the front console, help prevent crosshead overshooting and sensor overloads. A graduated rule
along the column can be used to preset these limits to specific distances.
Large space in the working area: The insides of columns provide wide space for the operator.
Over-stroke limiter: The range of the crosshead movement mechanically limited.
Comfortable working area
The wide legroom under the load unit provides a comfortable working area for attaching and removing jig
MODEL | HST-EGD100 | |
Testing Machine Specifications | ||
Load Capacity (kN) | 100 | |
Load accuracy | Class 0.5 | |
Testing Load Accuracy | ±0.5% | |
Testing Load Range(FS) | 0.2%-100% | |
Load Resolution | 1/500,000FS | |
Deformation accuracy | ≤±0.5% of 0.4%~100% of rated capacity | |
Position resolution | 0.025μm | |
Position accuracy | ±0.02mm or 0.5% of displacement (whichever is greater) | |
Crosshead speed range | 0.001-500 | |
Crosshead speed accuracy | ±0.5% of set speed (zero or constant load) | |
Crosshead Travel(mm) | 1100 | |
Room temperature Tensile Space(mm) | 650 | |
Room temperature Compression Space(mm) | 1000 | |
Room temperature Test width (mm) | 550 | |
Load cell | High-precision USA load cell | |
Position limit switch | Upper and lower lights | |
Power Supply | AC220V±10%, 50Hz/60Hz | |
Overall Dimensions (L*W*H: mm) | According to the size of High and Low temperature test chamber | |
Weight(kG) | According to the size of High and Low temperature test chamber | |
Note:Extra wide and/or extra height frames are available.Power supply system is completely customizable. Tensile space, test width, and speed is completely customizable. | ||

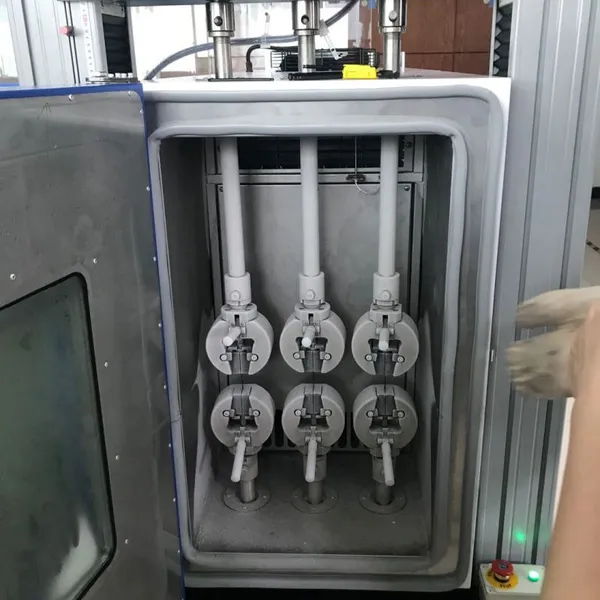

High and low temperature environmental test chamber Specifications | ||
Operating temperature range | -70 -300℃ | |
Cooling system | compressor | |
Temperature uniformity | < 200 ≤±2°C , ≥ 200 ≤±3,5°C | |
Temperature Fluctuation | ≤±1°C | |
Heating rate | 2-3℃/min | |
Power | 220V | |
Material of inner box | stainless steel | |
Outer box material | stainless steel | |
Heating system | Nickel-chromium alloy heating wire heater | |
Insulation Materials | Ultra-fine glass wool or rigid foam | |
Air supply circulation system | a: motor; b: lengthened shaft; c: centrifugal fan | |
Chamber Door | Monolithic door | |
Controller | Temperature Controller | |
Control panel | Rotary switch | |
Inside dimensions(mm) | 350*260*400 | |
Outside dimensions(mm) | 1100*420*560 | |
