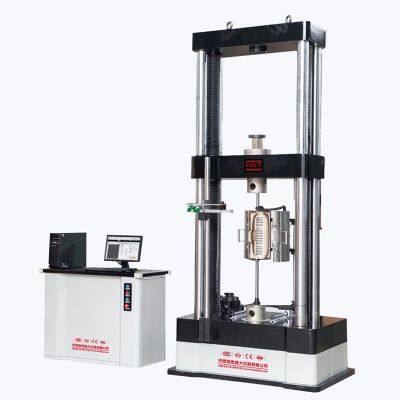

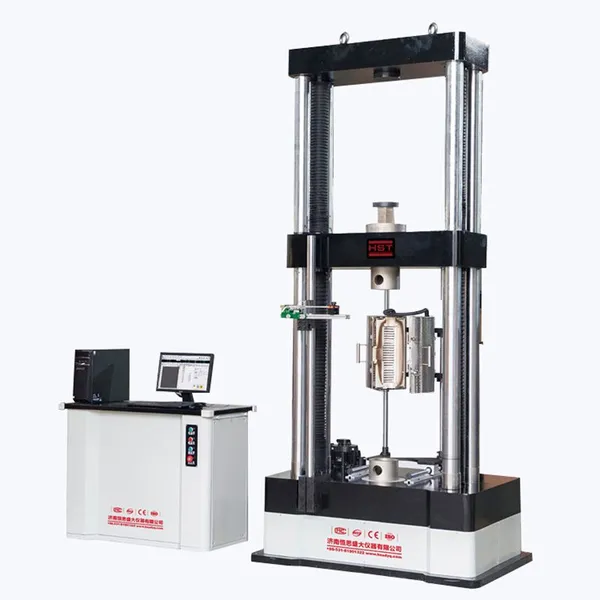

300KN WDW Electronic Universal Testing Machine Computer Control Model HST WDW-300E 300KN Double Columns Class 0.5
US$ 13400 - 19083
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
12months
Accuracy:
≤± 0.5%
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
200KN Computer Control Electronic Universal Testing Machine Factory Price HST WDW-200E 200KN Double Columns Class 0.5US$ 13000 - 17867MOQ: 1 Set -
100KN Double Columns Computer Control Electronic Universal Testing Machine HST WDW-100E Class 0.5 Taiwan DELTA AC Servo MotorUS$ 5700 - 7633MOQ: 1 Set
-
50KN Computer Control Electronic Universal Testing Machine Factory Price HST WDW-50E 50KN Double Columns Class 0.5US$ 5050 - 6917MOQ: 1 Set
-
Computer Control Electronic Universal Testing Machine HST WDW-30E 30KN Single Column Double Space Class 0.5US$ 5050 - 6917MOQ: 1 Set
-
Computer Control Electronic Universal Testing Machine HST 20KN 30KN With Standard Tensile Grip and Compression Grip WDW-20EUS$ 5000 - 5250MOQ: 1 Set
Warranty
12months
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing, Tensile, comprssion, bending test
customized support
OEM, ODM
power
2.5KW
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
300KN Double Columns Electromechanical Universal Testing Machine
Model
WDW-300E
Power supply
220V, 50HZ/60HZ
Test control mode
Three closed loop control, stress, strain and displacement
Standard
ASTM , ISO, EN, GB, etc
Certificate
CE, ISO
Protection way
Overload, overcurrent, protection net, etc

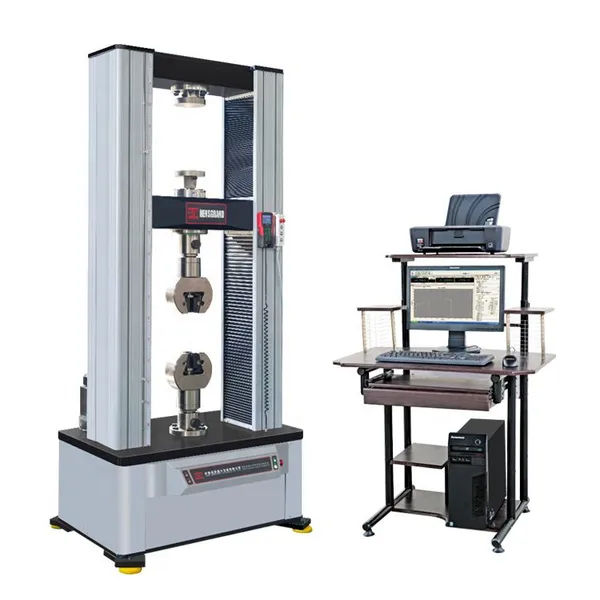

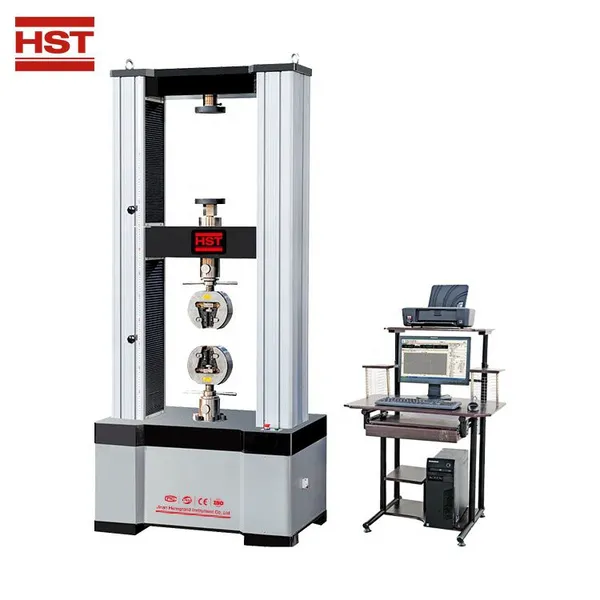

HST-WDW -E SERIES 10-300KN 10KN 20KN 50KN 100KN 200KN 300KN Double Columns Electromechanical Universal Testing Machine
Products Description
Application:
WDW series electromechanical testing machines offer force, displacement or deformation
closed loop testing in tension, compression, flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
closed loop testing in tension, compression, flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
Applied Standards:
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN51221. Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846, EN 10002-4.
Safety: This machine shall conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN61010-1
Safety: This machine shall conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN61010-1
Model |
WDW-10E |
WDW-20E |
WDW-50E |
WDW-100E |
WDW-200E |
WDW-300E |
|||||
Max Load(KN) |
10 |
20 |
50 |
100 |
200 |
300 |
|||||
Testing Force Accuracy |
± 0.5% |
||||||||||
Testing Force Range |
0.2％～100％ FS |
||||||||||
Force Resolution |
1/500000 of FS |
||||||||||
Displacement Accuracy |
≤± 0.5% |
||||||||||
Displacement Resolution(mm) |
0.04 |
||||||||||
Speed Range(mm/min) |
0.001-1000 |
0.001-500 |
0.005-500 |
0.005-500 |
|||||||
Crosshead speed accuracy |
within ± 0.5% of the value |
||||||||||
Crosshead Travel(mm) |
1100 |
1100 |
1100 |
||||||||
Max. Tensile Testing Space(mm) |
770 |
650 |
650 |
||||||||
Max.Compression Test Space(mm) |
900 |
1000 |
1000 |
||||||||
Test width (mm) |
450 |
550 |
600 |
||||||||
Load Frame Dinension(mm) |
850*550*1824 |
1108*798*2450 |
1108*798*2450 |
||||||||
Weight(KG) |
420 |
680 |
1800 |
||||||||
Power Supply |
AC220V±10%, 50Hz/60HZ |
||||||||||
