Man-made Wood Universal Tensile Testing Machine
Application:
Thismachine made for the wood manufacturing and quality supervision station. Can do the following test: bone strength, surface bone strength, tensile strength, static bending strength, modulus of elasticity test, screw griping test and shear test of of MDF,shaving board, plywood, core-board.
Standard:
EN310, JIS A 5908, GB/T17657-1999, ASTM, GB/T 16491-1996
Technical parameter:
|
Model |
MWW-10 |
|
Max testing force(KN) |
10 |
|
Testing force level |
1 Level |
|
Testing range |
2%--100%FS |
|
Relative error of indicating value |
≤±1% |
|
Force resolution |
1/300000 |
|
Displacement resolution |
≤±1% |
|
Displacement resolution(mm) |
0.01 |
|
Load speed(mm/min) |
0.05-500 |
|
Effective tensile space(mm) |
750 |
|
Effective testing width(mm |
350 |
|
Overall dimension |
690×380×1650mm |
|
Weight |
320kg |
|
Power |
220V,50Hz,0.5KW |
Package list:
|
Name |
Quantity |
|
10KN high strength host |
1 pc |
|
High precision photoelectric encoder |
1 pc |
|
Digital servo control system and digital servo control motor |
1 set |
|
High precision ball screw assembly |
2 sets |
|
High precision arc synchronous gear system |
1 set |
|
High precision arc synchronous gear system |
1 set |
|
Special measurement and control system |
1 set |
|
Under WINDOWS operating environment MAXTEST special software |
1 set |
|
LENOVO computer |
1 set |
|
HPA4 printer |
1 set |
|
Standard configuration with 6 sets testing fixtures as below |
|
|

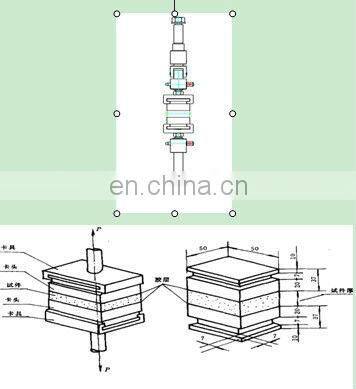

Surface bonding strength testing fixture |
1 set |
|
Internal bonding strength testing fixture |
1 set |
|
Screw holding strength testing fixture |
1 set |
|
Static bending strength testing fixture |
1 set |
|
Elastic modulus testing fixture |
1 set |
|
Screw griping testing fixture |
1 set |
|
Technical document |
1 set |

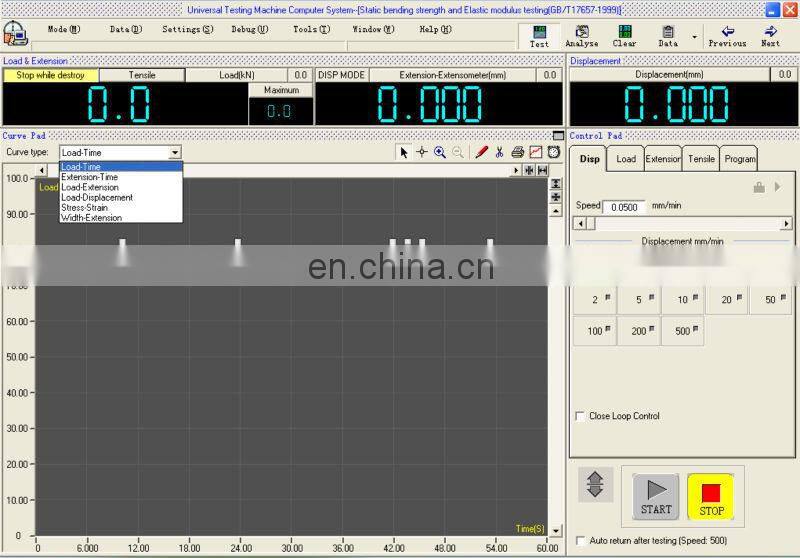

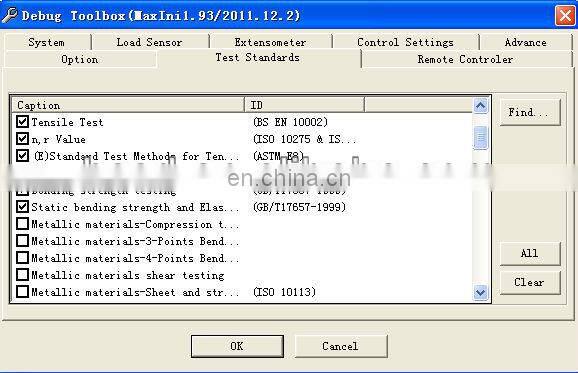

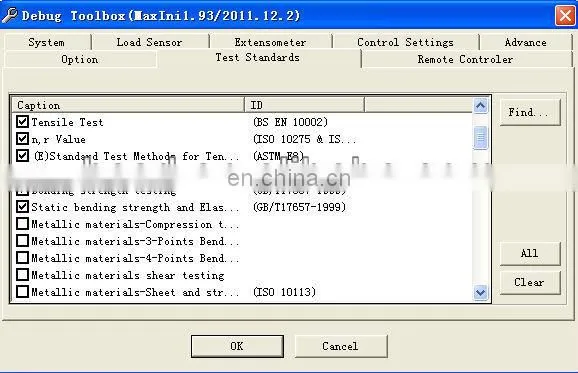

Software interface:
1) Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
2) Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
3) Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
4) Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. Products are widely recognized and trusted by users.
