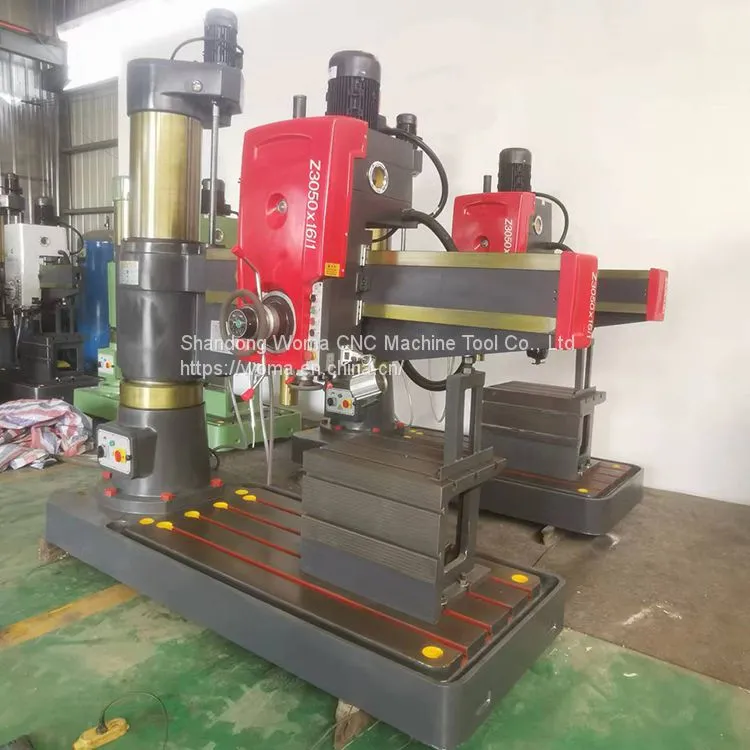

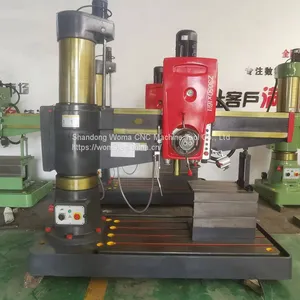

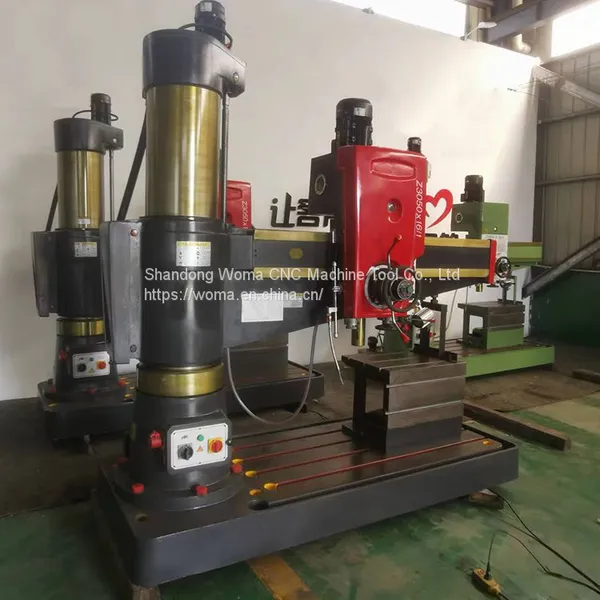

Help CenterWoma CNC Z3050 Radial Drilling Machine Zoje Hydraulic Clamping Variable Speed Automatic Feed
Related Products
-
Woma CNC GB4250 Horizontal Metal Band Sawing Machine Automatic Lifting Hydraulic Clamping Electric Feeding FrameUS$ 5,260 - 5,537MOQ: 1 Set -
BC6063 Mechanical Shaper Wal Mart CNC BC6066 Metal Planing EquipmentUS$ 4,155 - 4,847MOQ: 1 Set
-
Worma CNC Machine VMC1160 Machining Center Fourth Axis Linkage Kandi System Center Water OutletCNY 250000 - 280000MOQ: 1 Piece
-
Woma CNC X6132 Horizontal Milling Machine, Metal Gear Processing, Keyway Milling Equipment, Mechanical Automatic Tool FeedingUS$ 15000 - 20000MOQ: 1 Set
-
WOMA CNC CK6140X1000 CNC Lathe Horizontal Automatic Feed System Selection Metal CuttingUS$ 6,644 - 6,921MOQ: 1 Set
The main performance characteristics:
Hydraulic transmission
Hydraulic clamping
Hydraulic pre-selection
electricity machinery double insurance
Product main technical parameters
| SPECIFICATIONS | Z3050×16 |
| Max.drilling dia (mm) | 50 |
| Distance from spindle nose to table surface(mm) | 320-1240 |
| Distance between spindle axis and column surface (mm) | 350-1640 |
| Spindle travel (mm) | 330 |
| Spindle cone(MT) | 5 |
| Spindle speeds range (r.p.m) | 25-2000 |
| Spindle speed step | 16 |
| Spindle feeding range(r.p.m) | 0.04-3.2 |
| Spindle feeding step | 16 |
| Rocker rotary angle (°) | ±90° |
| Main motor power (kw) | 5.5 |
| Movements motor power (kw) | 1.5 |
| Weight (kg) | 3500 |
| Overall dimensions (mm) | 2500×1060×2800 |
Company Information
Shandong Woma CNC Machine Tool Co., Ltd. is one of the leading machine tool manufacturers and exporters in Shandong Province, China. We have more than 20 years of manufacturer experience. Our main products include CNC machining centers, CNC gantry milling machines, vertical milling machines, horizontal milling machines, universal milling machines, gantry milling machines, ram milling machines and vertical drilling machines, with a total of 30 categories.
We are a manufacturer, not a trading company. All our products have passed CE and ISO9001 certification. Our main customers include KNUTH of Germany and Bernardo of Austria. You can trust our quality and service.
I hope we can establish a long-term business relationship with you.
