Help CenterWoma CNC X6132 Horizontal Milling Machine, Metal Gear Processing, Keyway Milling Equipment, Mechanical Automatic Tool Feeding
Related Products
-
WOMA CNC CK6140X1000 CNC Lathe Horizontal Automatic Feed System Selection Metal CuttingUS$ 6,644 - 6,921MOQ: 1 Set -
Wal Mart CNC CW6163 Horizontal Ordinary Lathe Has High Cutting Power and Strong RigidityUS$ 11,073 - 11,765MOQ: 1 Set
-
Woma CNC Z3050 Radial Drilling Machine Zoje Hydraulic Clamping Variable Speed Automatic FeedUS$ 7,334 - 7,611MOQ: 1 Set
-
Woma CNC GB4250 Horizontal Metal Band Sawing Machine Automatic Lifting Hydraulic Clamping Electric Feeding FrameUS$ 5,260 - 5,537MOQ: 1 Set
-
BC6063 Mechanical Shaper Wal Mart CNC BC6066 Metal Planing EquipmentUS$ 4,155 - 4,847MOQ: 1 Set
X6132 horizontal universal milling machine
Specification
specification |
unit |
X6132 |
X6132B |
X6132H |
X6132BH |
Table size |
mm |
320X1325 |
320X1600 |
320X1325 |
320X1600 |
Max Longitudinal travel(manual/auto) |
mm |
700/680 |
900/880 |
700/680 |
900/880 |
Max transverse travel(manual/auto) |
mm |
255/240 |
|||
Max vertical travel(manual/auto) |
mm |
320/300 |
410/390 |
||
Max rotary angle |
±45° |
||||
Distance between spindle axis table |
mm |
30/350 |
30/440 |
||
Spindle speed step |
18 steps |
||||
Spindle speed range |
30-1500 |
||||
Feed range of table travel |
steps |
18 steps |
|||
Main motor power |
kw |
7.5 |
|||
Feed motor power |
kw |
1.5 |
|||
Overall size (L x W x H) |
mm |
2294X1770X1610 |
2294X2050X1610 |
2294X1770X1790 |
2294X2050X1790 |
N.W/G.W |
kg |
2650/2950 |
2740/3040 |
2850/3150 |
2940/3240 |
Standard Accessories
1 |
Crank |
|
2 |
Double head wrench |
13*14 |
3 |
Double head wrench |
27*30 |
4 |
Double head wrench |
32*36 |
5 |
Inner hexagon |
5 |
6 |
Inner hexagon |
8 |
7 |
Inner hexagon |
10 |
8 |
Milling arbor |
22 |
9 |
Milling arbor |
27 |
10 |
Milling arbor |
32 |
11 |
ISO50 Milling Arbor |
|
12 |
Milling Bar |
|
13 |
Push grease gun |

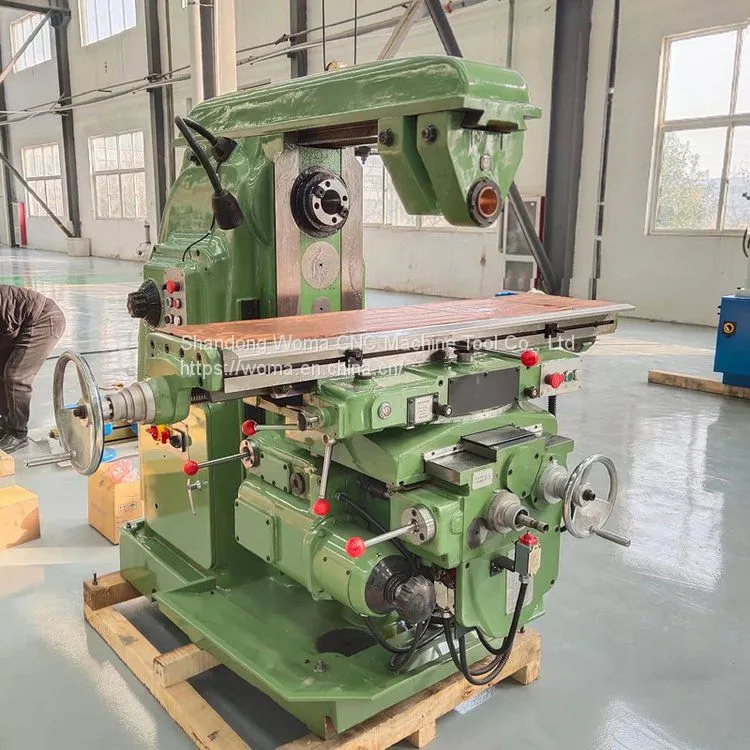

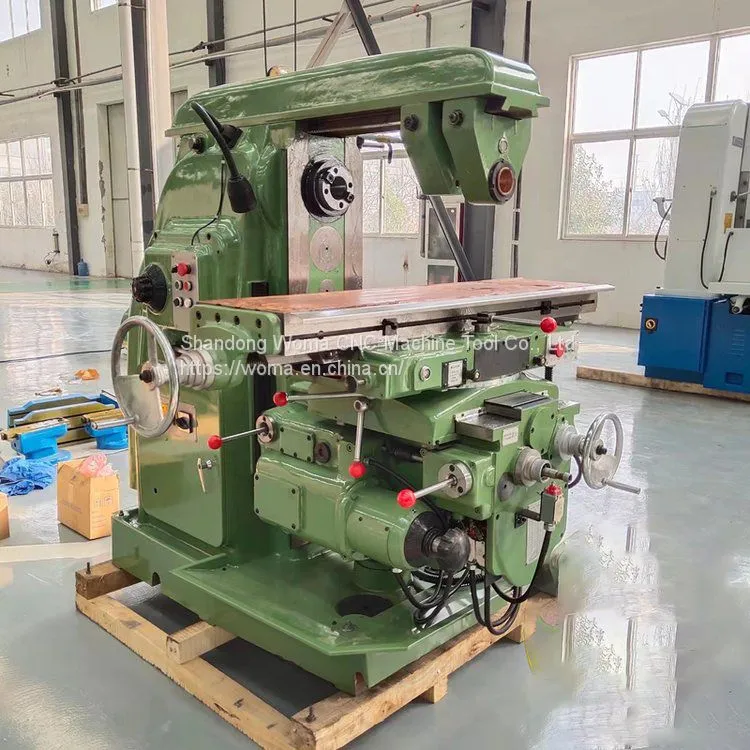

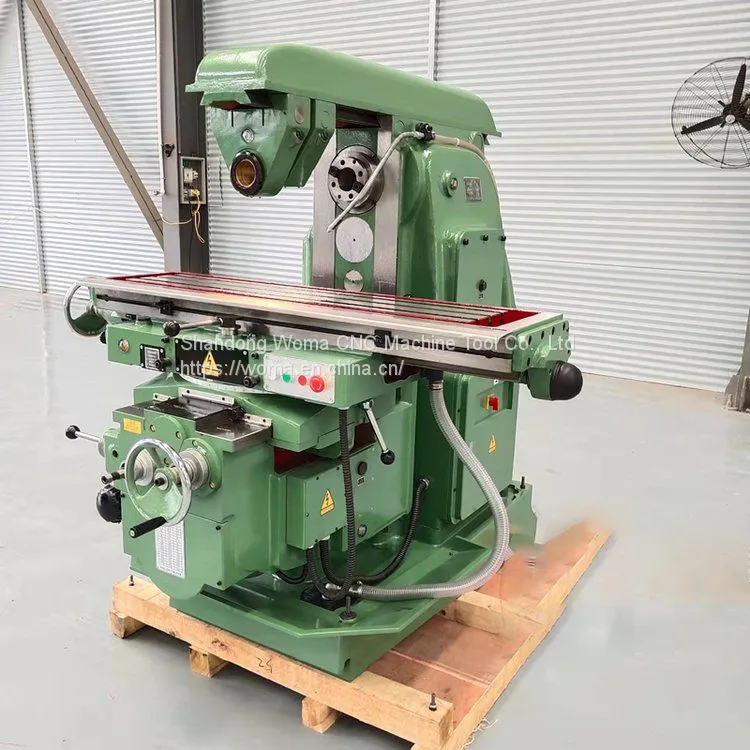

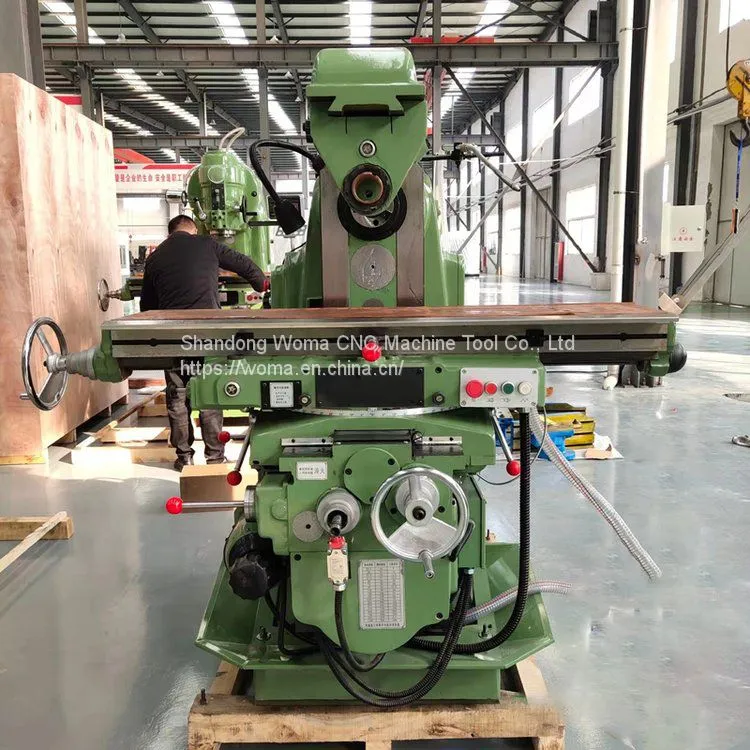

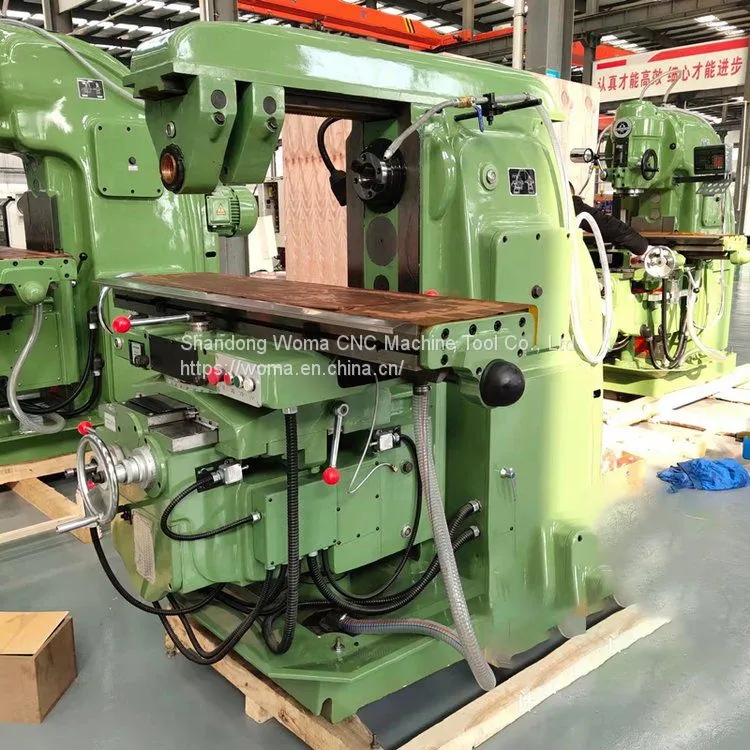

X6132 Photos
Company Information
Shandong Woma CNC Machine Tool Co., Ltd. is one of the leading machine tool manufacturers and exporters in Shandong Province, China. We have more than 20 years of manufacturer experience. Our main products include CNC machining centers, CNC gantry milling machines, vertical milling machines, horizontal milling machines, universal milling machines, gantry milling machines, ram milling machines and vertical drilling machines, with a total of 30 categories.
We are a manufacturer, not a trading company. All our products have passed CE and ISO9001 certification. Our main customers include KNUTH of Germany and Bernardo of Austria. You can trust our quality and service.
I hope we can establish a long-term business relationship with you.
Our service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
