radial drilling machine/drilling machine/drill
- 100 Set / Sets per Month
- Shanghai port.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
drilling & milling machine/drilling machine/milling machine/driller
-
cnc drill machine///drill machine///CNC drilling machine
-
(glass drilling machine)glass drill machine/drilling machine
-
high precision low cost drilling and milling machine
-
drill bit grinder 26A/D
-
Double Action Hydraulic Press Machine
Product Details
| Condition | New | CNC or Not | Normal | |
| Place of Origin | Jiangsu, China | Brand Name | SMAC | |
| Model Number | /RD3207/RD3210 | Voltage | 380V | |
| Power(W) | 0.75/1.5/2.2KW | Dimension(L*W*H) | 1230x55x1200~2040x750x2360mm | |
| Weight | 1200/1250/1600KG | Certification | ISO / CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

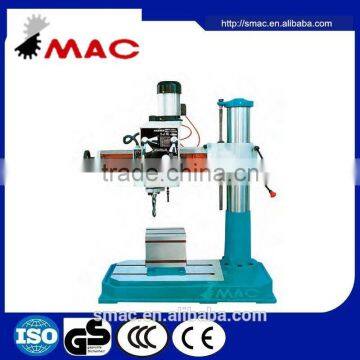

radial drilling machine
Standard Accessories:
Box shape worktable
Taper sleeve
Tool releasing Wrench
Drift
Eyelet bolts
Optional Accessories:
Quick instead chuck
Tapping chuck
Grease gun
Foot stand (RD3207)

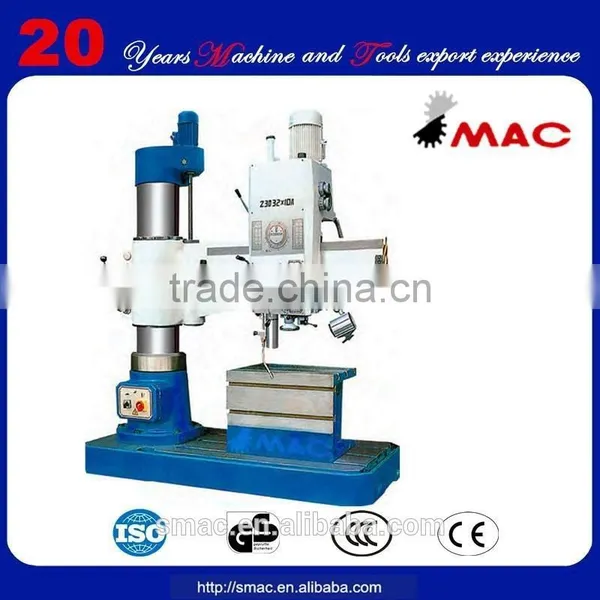

radial drilling machine
| Model | RD3213 | RD3210 RD4010 | RD3209 | RD3208 RD4008 | RD3207 RD3207P |
| Max. Drilling capacity (mm) | 32 | 32/40 | 32 | 32/40 | 32 |
| Distance Spindle axis to column generating line (mm) | 200-1300 | 300-1000 | 260-900 | 320-820 | 300-700 |
| Diameter of column (mm) | 240 | 220 | 200 | 150 | |
| Spindle taper (mm) | MT4 | MT4 | MT4 | MT4 | MT3 |
| Spindle travel (mm) | 250 | 280 | 210 | 210 | 150 |
| Spindel speeds range (mm) | 71-1800 | 32-2500 | 75-1250 | 75-1220 | 100-1600 |
| Spindle speeds series | 8 | 16 | 6 | 6 | 8 |
| Range of Spindle feeds (mm/r) | 0.13-0.54 | 0.10-1.25 | 0.05-0.16 | 0.1-0.25 | 0.08, 0.14, 0.23 |
| Spindle feed | 4 | 8 | 3 | 3 | 360 |
| Max. Distance nose to working surface of base (mm) | 264-1064 | 220-1000 | 250-1100 | 320-900 | 275-680 |
| Dimension of worktable (mm) | 600x450x450 | 400x400x350 | 400x400x350 | 250x250x250 | |
| Dimension of base (mm) | 1710x800x160 | 1500x700x160 | 1370x700x160 | 1050x550x120 1200x325x155 | |
| Overall Size (cm) | 204x75x236 | 176x80x205 | 150x70x210 | 140x72x188 | 123x55x120 123x62x123 |
| Power of main motor (W) | 2.2 | 2.2 | 1.5 | 1.5 | 0.75 |
| G.W/N.W | 2100/1600 | 2100/1600 | 1380/1250 | 1425/1200 | 475-380 |
| Packing dimension (cm) | 187x97x220 | 187x97x220 | 160x75x220 | 155x77x210 | 123x62x134 |
radial drilling machine
Our service:
1,Your inquiry will be replied in 24 hours.
2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6
years.And there is more industry technology experience for 20 years with our manufactures
3.To offer free spare parts and service within one year of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
