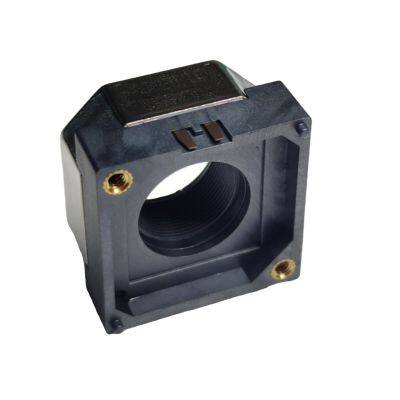

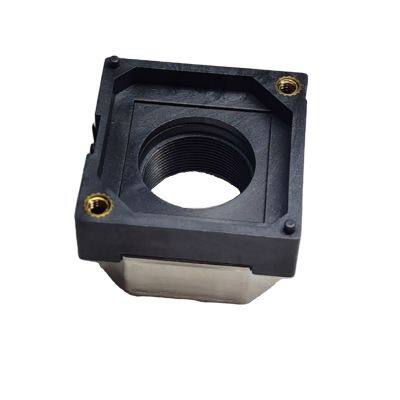

Name: 22.2× 22.2× 14.6mm M12XP0.5 Voice Coil Motor Actuator VCM Vca
Brand: CCHT
SKU: 171231661
Availability: InStock

ALL CATEGORIES

22.2× 22.2× 14.6mm M12XP0.5 Voice Coil Motor Actuator VCM Vca

Send Inquiry to This Supplier

Mr. Peter Guan

General Manager

Chengdu Century Huasha Trading Co.,Ltd.

Chengdu, Sichuan, China

Message

0/5000

* Email

Want the best price? Post an RFQ now!

Technical Parameter of Voice Coil Motor
Model No.	04-006-001	04-006-002	04-006-013	04-006-012
Dimension	18.2×18.2×10.3mm	22.2×18.2×10.3mm	22.2×22.2×14.6mm	22.2×22.2×14.6mm
Weight	5g	5g	13g	13g
Mount	M12xP0.5	M12xP0.5	M12xP0.5	M12xP0.5
Weight of lens	<5g	<5g	<8g	<8g
RFL	3~5mm	3~5mm	3~8mm	2~8mm
Displacement direction	Along Tilt	Along Tilt	Along Tilt	Along Tilt
Working ambient temperature range	-30ºC~+60ºC	-30ºC~+60ºC	-30ºC~+60ºC	-30ºC~+60ºC
Storage ambient temperature range	-40ºC~+70ºC	-40ºC~+70ºC	-40ºC~+70ºC	-40ºC~+70ºC
Rated current	<120mA	<120mA	<120mA	<120mA
Max. current	<120mA	<120mA	<120mA	<120mA
Coil resistance	32Ω±2(25ºC)	32Ω±2(25ºC)	32Ω	32Ω±5%(25ºC)
Starting current	15~40mA	15~40mA	20~40mA	15~40mA
Displacement	>0.45mm	>0.45mm	>0.60mm	>0.70mm
Hysteresis accuracy	<0.015	<0.015	<0.01	<0.015
Linearity	<0.02mm	<0.02mm	<0.04mm	<0.03mm
Temperature rise	≤100ºC	≤100ºC	≤100ºC	≤100ºC

22.2× 22.2× 14.6mm M12XP0.5 Voice Coil Motor Actuator VCM Vca

Product Details
