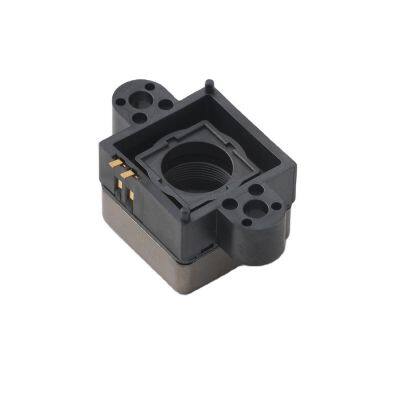

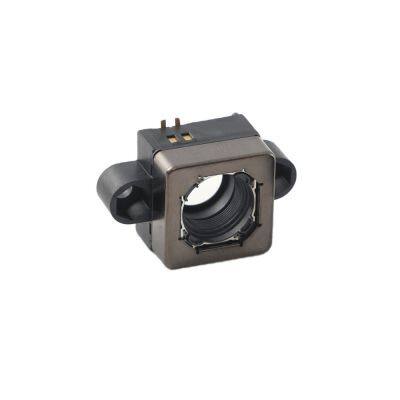

Name: 14X14X5.9mm M8XP0.35 VCM Vca Voice Coil Motor Actuator
Brand: CCHT
SKU: 171614629
Availability: InStock

ALL CATEGORIES

14X14X5.9mm M8XP0.35 VCM Vca Voice Coil Motor Actuator

Send Inquiry to This Supplier

Mr. Peter Guan

General Manager

Chengdu Century Huasha Trading Co.,Ltd.

Chengdu, Sichuan, China

Message

0/5000

* Email

Technical Parameters of Voice Coil Motor
No.	Item	Model No.
		18-006-001	18-006-002	18-006-003	18-006-004	18-006-005	18-006-006
1	Dimension	14 x 14 x 5.9mm
2	Match Lens	M8×P0.35
3	Suitable sensor size	T.B.D.
4	Resolution	T.B.D.
5	Rated current	100mA
6	Absolute Max. current	120mA or less
7	Insulation resitance	1MΩ or more(at 50V DC, between the terminal and cover)
8	Direction of movement	From sensor side to lens top side when (+) voltage is applied to + terminal
9	Mass	2.2g
10	Working conditions	Working temperature range:-30 ~+ 70ºC
		Working humidity ange:10 ~ 90%
11	Storage conditions	Storage temperature range:-40 ~+ 80ºC
		Storage humidity ange:10 ~ 90%
12	Torque	40~200g. Match the lens test: once a month
13	Rated stroke	Sroke: ≥400 µm
		Max. Stroke: ≥450 µm
14	Starting current	25~45mA
15	Hysteresis accuracy	≤10 µm
16	Sensitivity(Slope)	6.5±2.5 µm/mA
17	Terminal resistance	29±3Ω
18	Linearity	≤10 µm
19	Tilt	Dynamic(Moving) Tilt : ≤ 7′

14X14X5.9mm M8XP0.35 VCM Vca Voice Coil Motor Actuator

Product Details
