8.5× 8.5× 2.9mm M6.0× P0.25 8MP Voice Coil Motor for Auto Focus

8.5× 8.5× 2.9mm M6.0× P0.25 8MP Voice Coil Motor for Auto Focus photo-1

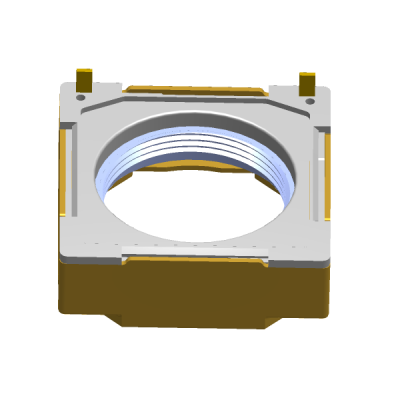

8.5× 8.5× 2.9mm M6.0× P0.25 8MP Voice Coil Motor for Auto Focus photo-2

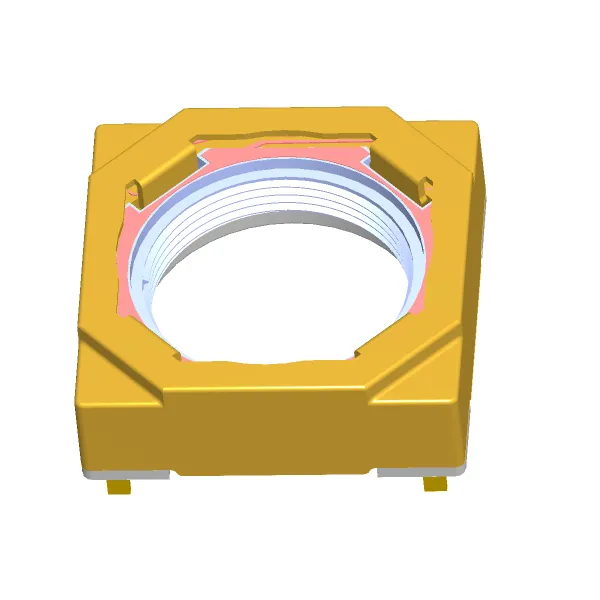

8.5× 8.5× 2.9mm M6.0× P0.25 8MP Voice Coil Motor for Auto Focus photo-3
US$ 0.8 - 1.6 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
CCHT
Place of Origin:
China
Model Number:
03-006-066
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
14 days
Brand Name CCHT
Place of Origin China
Model Number 03-006-066
Certification ROHS, UL
Usage Other, mobile phone
Technical Parameter of Voice Coil Motor
No.Model No.03-006-00103-006-00203-006-01103-006-01203-006-031
1Dimension8.5×8.5×2.6mm8.5×8.5×2.82mm8.5×8.5×2.8mm8.5×8.5×2.9mm8.5×8.5×2.9mm
2Match LensM5.0xP0.25M5.5xP0.25M6.0xP0.25
3Resolution5MP
4Weight 0.5g
5Weight of Lens0.12g Max.
6Rated Current80mA
7Max. Current100mA
8Insulation Resistance 1MΩ Min.
9Resistance Between Terminals 14~25Ω
10Torque20~120gf-cm
11Rated Stroke200μm Min. (@90mA)
12Starting Current20~40mA
13Sensitivity3~8μm/mA
14Hysteresis10μm Max.
15Dynamic Tilt15' Max.
16Posture Deviation50μm Max.
17Linearity15μm Max.
18AF Current10μm Max.


Technical Parameter of Voice Coil Motor
No.Model No.03-006-06403-006-06503-006-06603-006-067
1Dimension8.5×8.5×2.6mm8.5×8.5×2.8mm8.5×8.5×2.9mm8.5×8.5×3.3mm
2Match LensM6.0xP0.25
3Resolution8MP
4Weight 0.5g
5Weight of Lens0.12g Max.
6Rated Current80mA
7Max. Current100mA
8Insulation Resistance 1MΩ Min.
9Resistance Between Terminals 12~20Ω 15~25Ω
10Torque20~120gf-cm
11Rated Stroke200μm Min. (@90mA)
12Starting Current20~40mA
13Sensitivity3~8μm/mA
14Hysteresis10μm Max.
15Dynamic Tilt12' Max.
16Posture Deviation50μm Max.
17Linearity/15μm Max.
18AF Current10μm Max.


Technical Parameter of Voice Coil Motor
No.Model No.03-006-07203-006-07303-006-074
1Dimension8.5×8.5×2.6mm8.5×8.5×2.8mm8.5×8.5×2.9mm
2Match LensM6.5xP0.25
3Resolution13MP
4Weight 0.5g
5Weight of Lens0.12g Max.
6Rated Current80mA
7Max. Current100mA
8Insulation Resistance 1MΩ Min.
9Resistance Between Terminals 12~23Ω 10~20Ω
10Torque20~120gf-cm
11Rated Stroke200μm Min. (@90mA)
12Starting Current20~40mA
13Sensitivity3~8μm/mA
14Hysteresis10μm Max.±10μm
15Dynamic Tilt10' Max.9' Max.
16Posture Deviation50μm Max.±50μm
17Linearity15μm Max./
18AF Current10μm Max./


Product Tags: VCM , voice coil motor , auto focus lens holder , voice coil actuator , face recognization
