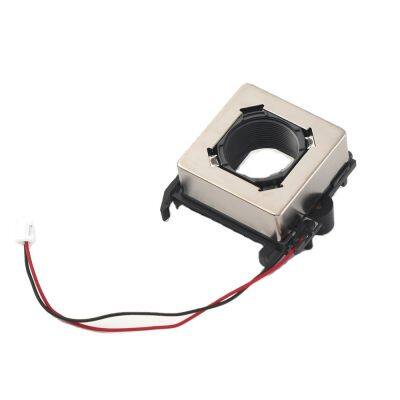

20X20X8.7 M12XP0.5 VCM Voice Coil Motor Actuator

Name: 20X20X8.7 M12XP0.5 VCM Voice Coil Motor Actuator
Brand: CCHT
Availability: InStock

FOB Price

USD $8 - $12 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CCHT		Place of Origin	China
Model Number	18-006-011		Certification	ROHS, UL

Voice Coil Motor
Model No.: 18-006-011
Genaral Technical Conditions
No.	Item	Specification
1	Dimension	20 x 20 x 8.7mm (only VCM, Carrier height 11.05mm)
2	Lens barrel size	M12×P0.5
3	Suitable sensor size	T.B.D.
4	Resolution	T.B.D.
5	Rated current	100mA
6	Absolute Max. current	120mA or less
7	Insulation resitance	1MΩ or more(at 50V DC, between the terminal and cover)
8	Direction of movement	From sensor side to lens top side when (+) voltage is applied to + terminal
9	Mass	8g
10	Working conditions	Working temperature range	-40 ~+ 80ºC
		Working humidity ange	30 ~ 80%
11	Storage conditions	Storage temperature range	-40 ~+ 80ºC
		Storage humidity ange	10 ~ 90%
12	Torque	60~300g. Match the lens test: once a month
Electrical Characteristics
NO.	Item	Specification	Test condition
1	Rated stroke	Up: ≥280 µm	When applied 100mA in the vertical direction (with dummy Lens unit, 5g)
		Horizon: ≥400 µm
2	Starting current	Up: 45~55mA	Current of the point where the displacementbecomes 10 µm from Initial location
		Horizon: 25~35mA
3	Hysteresis accuracy	≤10 µm	Stroke deviation between reciprocating
4	Sensitivity(Slope)	UP: 6±2 µm/mA	Gradient of line by connecting end points at 40~80 mA
		Horizon: 7.5±2.5 µm/mA
5	Terminal resistance	28±3Ω	Resistance between terminals (at 23±2ºC)
6	Linearity	≤10 µm	he maximum difference between lined by connecting points of stroke at 50 µm and 220 µm. Measured data between 10 µm and 250 µm.
7	Tilt	Dynamic(Moving) Tilt : ≤ 5′	The max tilt from10 µm to Rated Stroke
