14X14X5.9mm M8XP0.35 VCM Vca Voice Coil Motor Actuator

14X14X5.9mm M8XP0.35 VCM Vca Voice Coil Motor Actuator photo-1

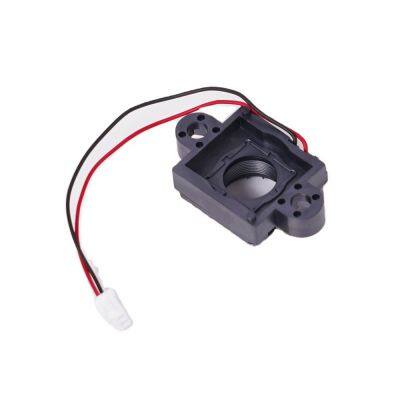

14X14X5.9mm M8XP0.35 VCM Vca Voice Coil Motor Actuator photo-2

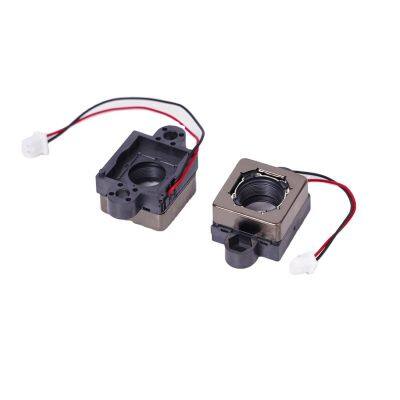

14X14X5.9mm M8XP0.35 VCM Vca Voice Coil Motor Actuator photo-3
US$ 6 - 10 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
CCHT
Place of Origin:
China
Model Number:
18-006-005
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
14 days
Brand Name CCHT
Place of Origin China
Model Number 18-006-005
Certification ROHS, UL


Technical Parameters of Voice Coil Motor
No.ItemModel No.
18-006-00118-006-00218-006-00318-006-00418-006-00518-006-006
1Dimension14 x 14 x 5.9mm
2Match LensM8×P0.35
3Suitable sensor sizeT.B.D.
4ResolutionT.B.D.
5Rated current100mA
6Absolute Max. current120mA or less
7Insulation resitance1MΩ or more(at 50V DC, between the terminal and cover)
8Direction of movementFrom sensor side to lens top side when (+) voltage is applied to + terminal
9Mass2.2g
10Working conditionsWorking temperature range:-30 ~+ 70ºC
Working humidity ange:10 ~ 90%
11Storage conditionsStorage temperature range:-40 ~+ 80ºC
Storage humidity ange:10 ~ 90%
12Torque40~200g. Match the lens test: once a month
13Rated strokeSroke: ≥400 µm
Max. Stroke: ≥450 µm
14Starting current25~45mA
15Hysteresis accuracy≤10 µm
16Sensitivity(Slope)6.5±2.5 µm/mA
17Terminal resistance29±3Ω
18Linearity≤10 µm
19TiltDynamic(Moving) Tilt : ≤ 7′


Product Tags: VCM , voice coil motor , auto focus lens holder , voice coil actuator , face recognization
