Produc description

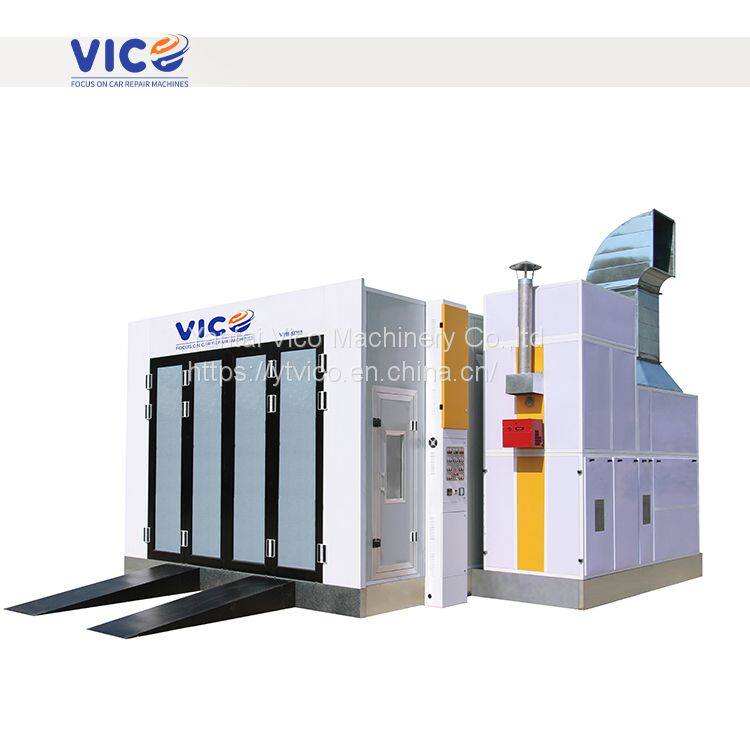

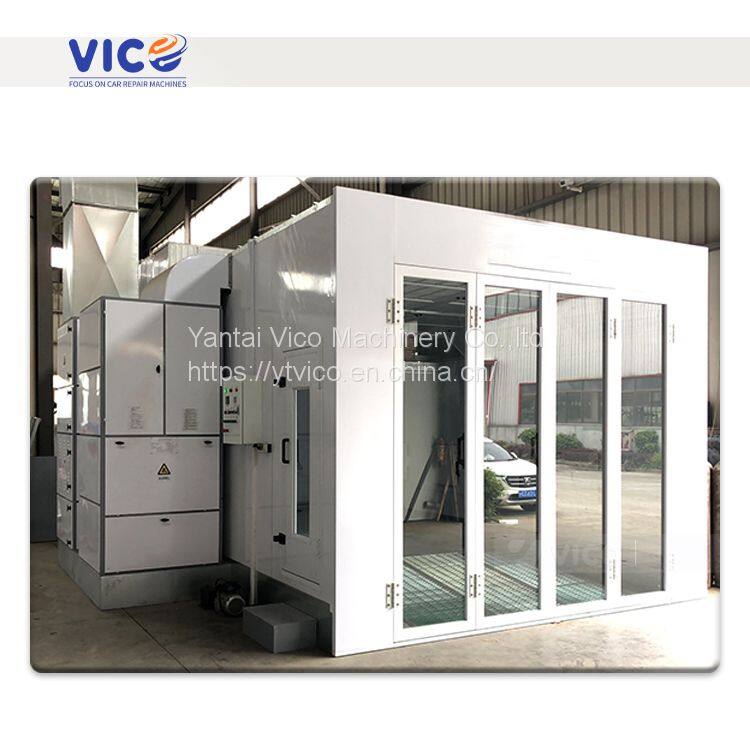

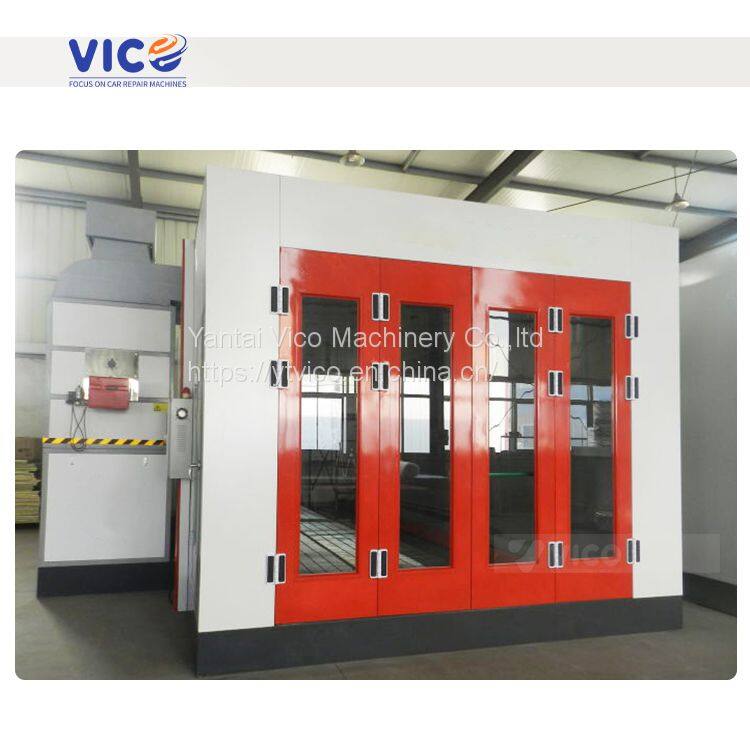

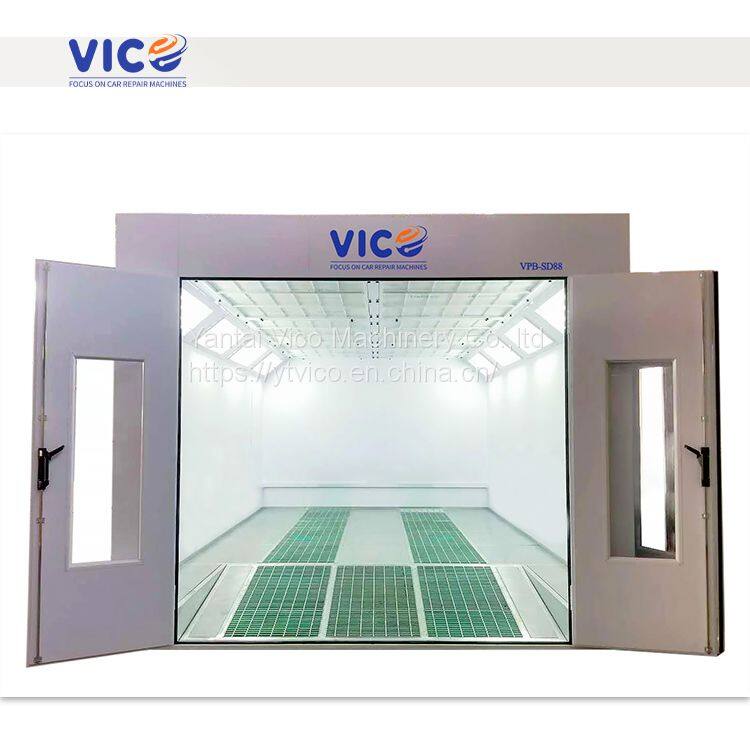

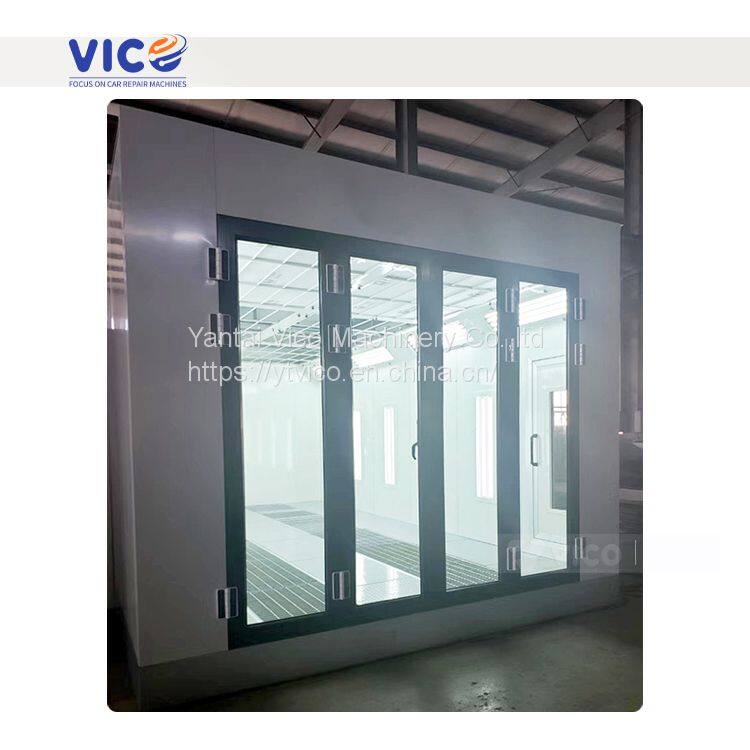

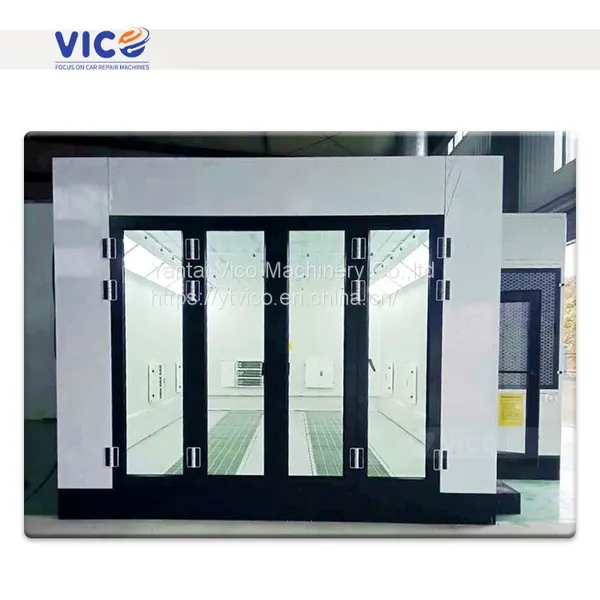

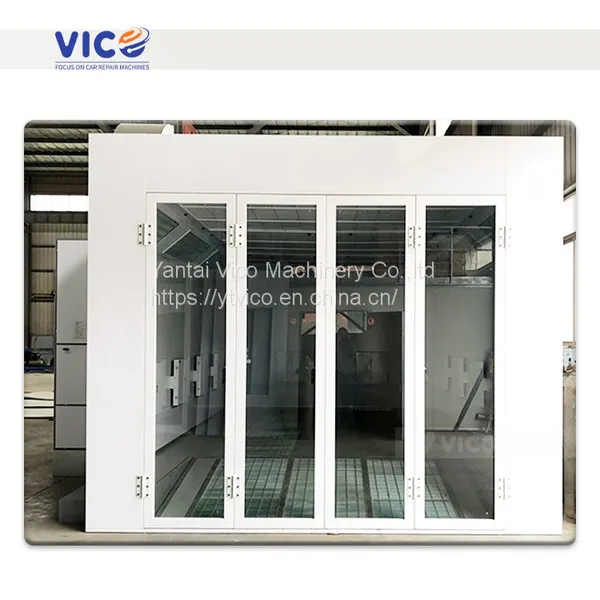

Four Big Glass Door /Spray Painting Booth With Diesel Bakin #VPB-SD88
Specifications
Painting booth description |
One of the hottest sale booths for export, very nice performance,with embedded ramp. |
Outer dimension:(mm) |
7000*5350*3400mm |
Inner dimension:(mm) |
6900*3900*2650mm |
Main door size: |
3000mm(W)*2600mm(H), side small door 700mm*2000mm |
Appearance color |
Red/ Blue / White grey/ Orange |
Frame system |

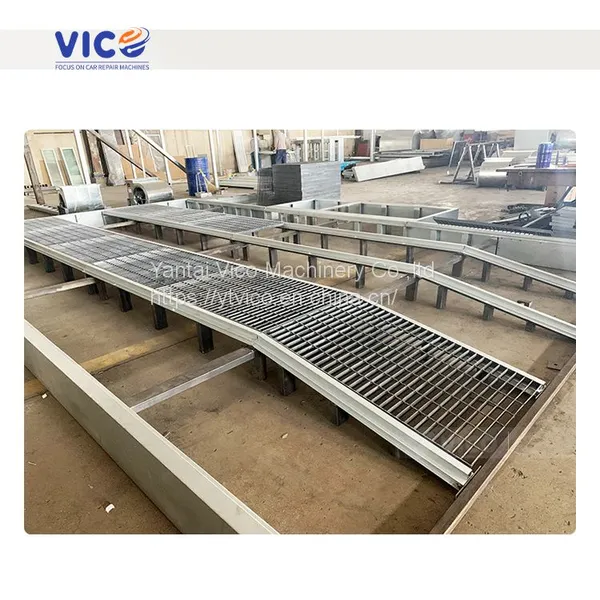

Frame retardant polystyrene insulation board(optional rock wool inside 50mm thickness, 0.426mm thick steel,galvanized steel assembled roof. Aluminum alloy front door frame and galvanized steel fixed room frame. The floor is assembly formed by corrosion-resistant rectangular tube with 2 rows of grids and 3 rows of checkered plates.(Optional full grilles) Bottom with glass filters. Ramps embedded inside of the booth,car drive on directly. |
Air circulation system |
2*4kw double channels centrifugal outer-motor ventilating machines, air flow:25000m3/h, exhaust duct is formed from superior galvanized steel sheet and flange; On load air speed:0.38m/s; Air exchange rate:320 times/h |
Exhaust |
1*5.5 KW centrifugal fan, model YDW 5.5KW, blower capacity 15000 m3/h. |
Filter system |
High-efficiency imported glue-spreading cotton (VF-600) ceiling filter Basement bottom grills bottom with glass filters system. |
Heating system |
RIELLO G20 burner, Max. Calorific value:180,000kcal/h. Exchanger Argon arc welded SUS304 stainless steel Max. Temperature :80℃； Diesel consumption 5-8L/h; Temperature rise rate:5-8min(20-60℃)； |
Lighting system |
Ceiling with two lines of lighting box, each line 4 units. total with 24pcs of 36w LED lamps. Illuminance:800Lux Side lights:8 groups*2 pc=16 pcs 36W LED lights.(Optional) |
E-controlling system |
Adopt superior electronic components, main circuit has multi-protection. Function:Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, pressure gauge, all motors reduced-voltage starting. |
Total power |
16KW |
Electric power supply |
3PH, 220V/380V/415V, 50Hz/60Hz |
Package
20'GP container can load 1 set
