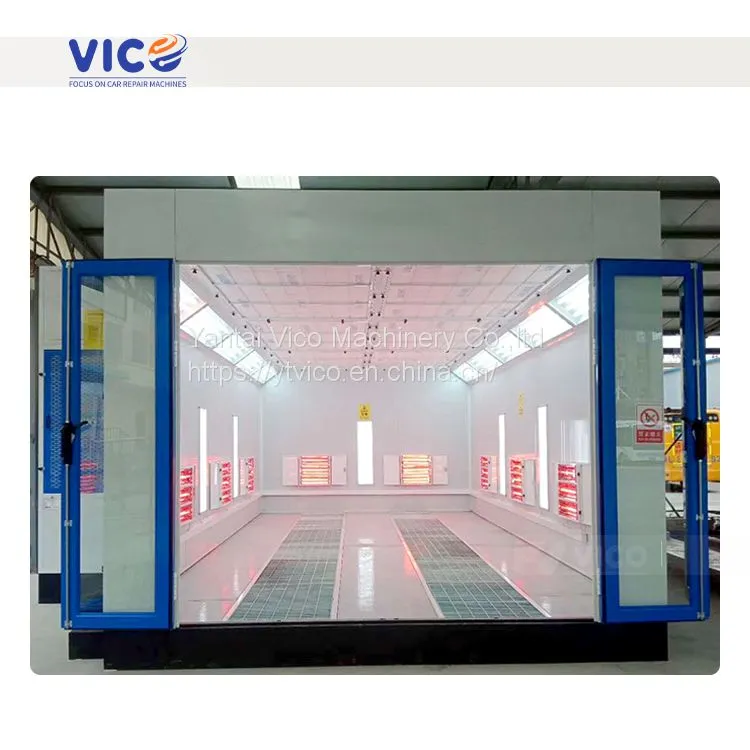

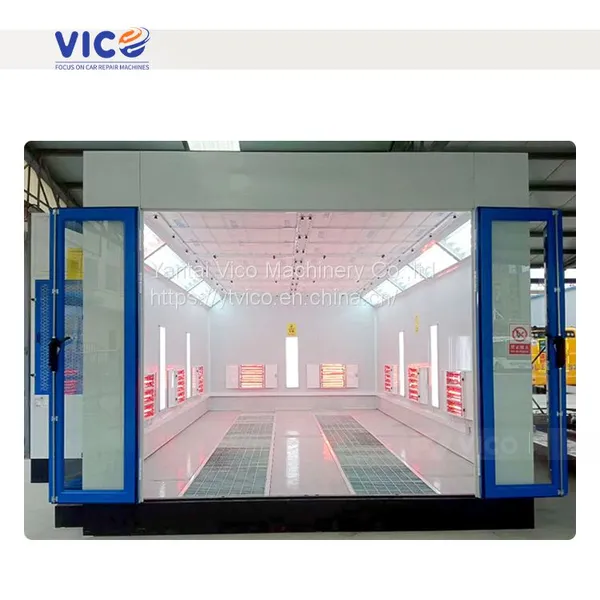

Vico CE Approved Car Spray Booth Paint Booth Baking Booth #VPB-E800

Outer dimension (mm)

7000L*5200W*3370H

Inner dimension:(mm)

6900L*3900W*2650H

Door dimension:(mm)

Front main door 3000W*2600H, side small door 680W*1800H

Heating system

By 10 sets of infrared lights, each set 3 pieces,1.0kw, and total baking power:30kw.

Unit box open with 2pcs door type. Thickness 2.5㎡,500℃ wire, covered with 40*80mm cable tray.

Wall material

50mm EPS wall, steel thickness:0.426mm, Socket type assembling.

Roof material

0.8mm galvanized steel sheet.

Basement

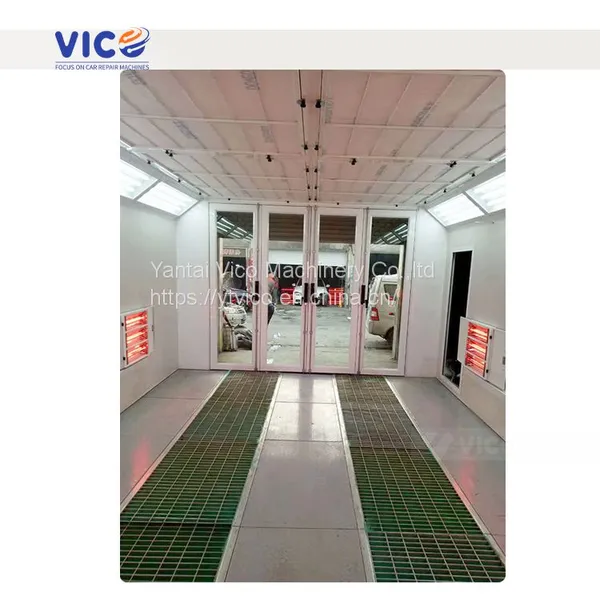

The whole basement is made of galvanized steel, top of basement is 2 rows of grilles and 3 rows of diamond plate. All the materials are antiseptic and durable.

Ramps

Two pieces of 280*1800mm ramps.

Lighting system

Using LED lamps, energy efficiency and longer life time than ordinary light.

With 45°installation at ceiling, 8 Unit box, 3x16W, ≥800Lux

Air intake system

2 sets centrifugal fans,4 KW/set, total air volume:25000m³/h; side draft and the air speed 0.37m/s; air changes:260times/h. Galvanized steel structure and covered by steel board.

Air exhaust system

None blower/Optional, side chimney with air pressure circulation.

Control system

Switch control: lighting, painting, baking, temperature setting, time setting, urgent stop. Size: 500*700mm

Filter system

Primary filtration: high grade fiberglass filter dust ≥10um in the inlet; secondary filtration: EU5CC-600G filters filter the dust ≥5um in the roof. TSP value≤1.4mg/m³.

Waste gas treatment

(Optional)Primary treatment: under basement filters; secondary treatment: activated carbon filters in the exhaust port.

Exhaust chimney

3 straight tubes,1 elbow tube.

Available colors

Blue, Orange, red, grey white
