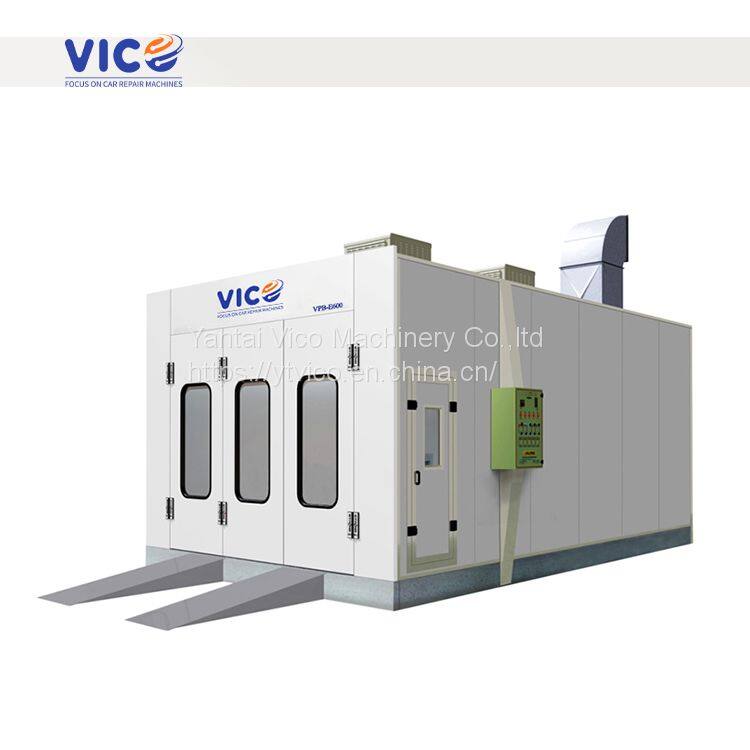

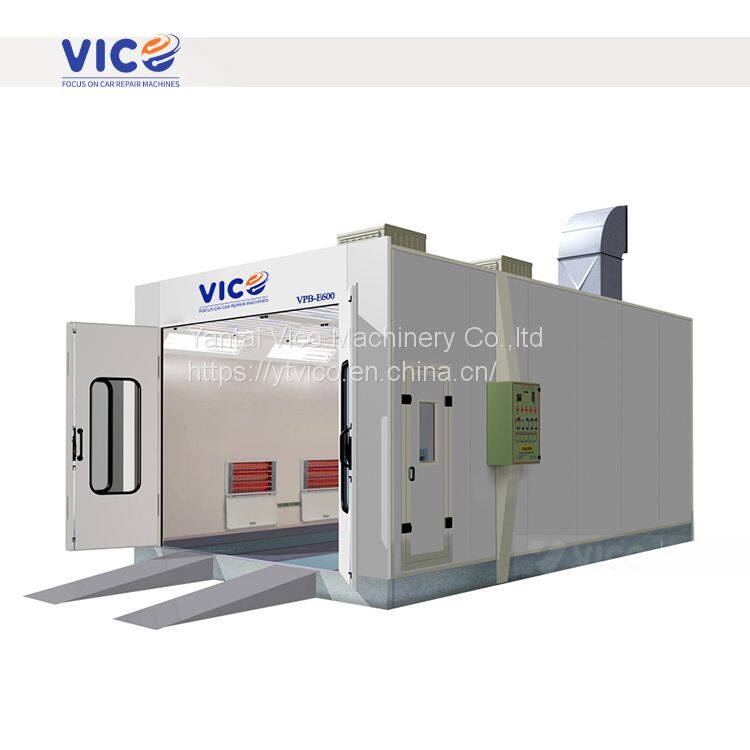

Vico Hot Sale CE Certificate Auto Electric Spray Booth Car Painting Booth VPB-E600

Outer dimension (mm)

7000L*4000W*4370H

Inner dimension:(mm)

6900L*3900W*2650H

Door dimension:(mm)

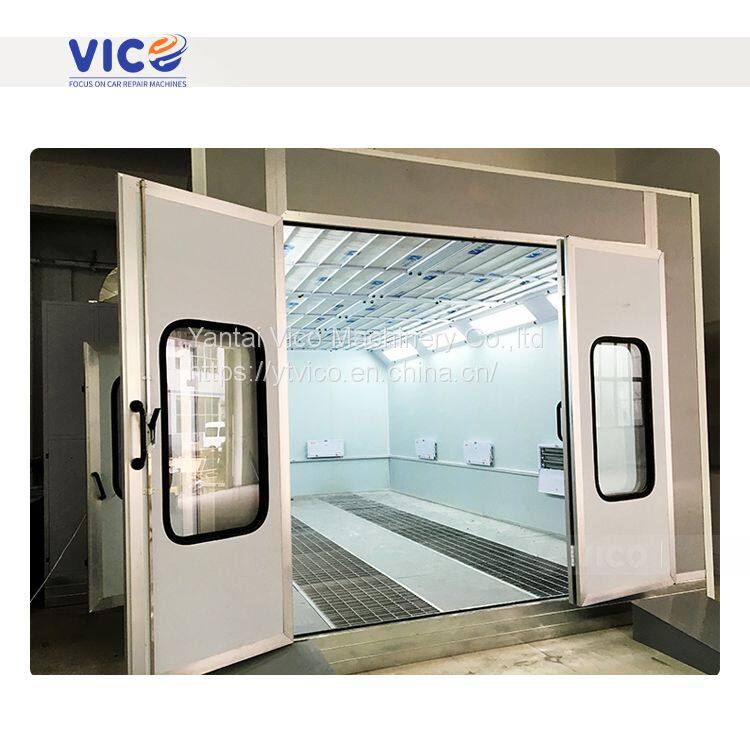

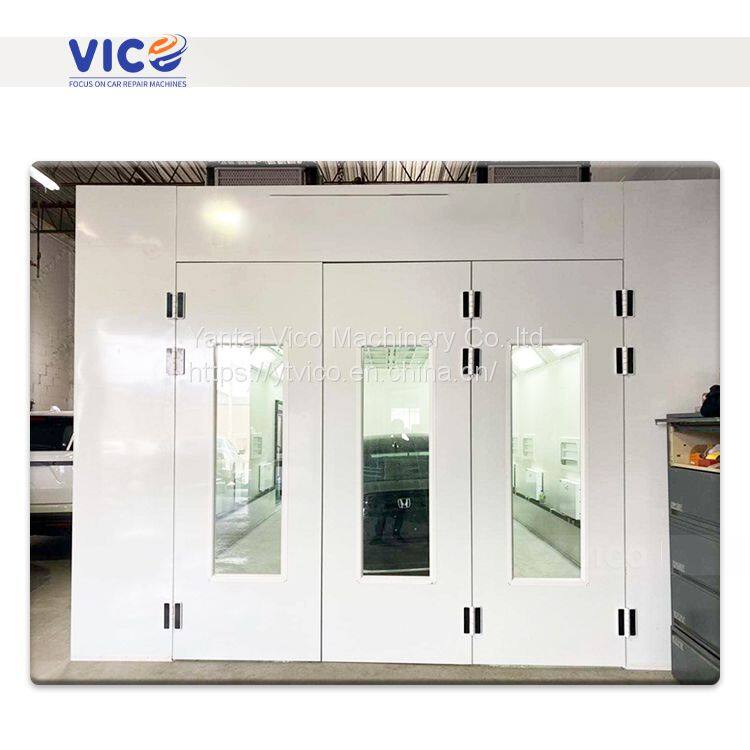

Front main door 3000W*2600H, side small door 680W*1800H

Heating system

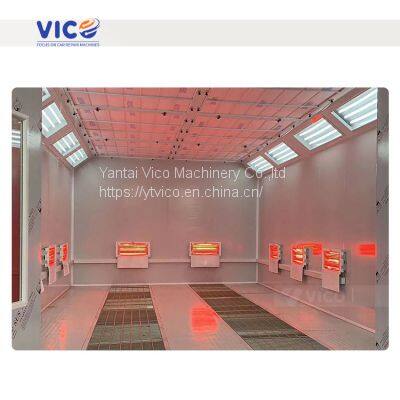

By 10 sets of infrared lights, each set 3 pieces,1.0kw, and total baking power:30kw.

Unit box open with down hanging type. Thickness 2.5㎡,500℃ wire, covered with 40*80mm cable tray.

Wall material

50mm EPS wall, steel thickness:0.426mm, Socket type assembling.

Roof material

0.8mm galvanized steel sheet.

Basement

The whole basement is made of galvanized steel, top of basement is 2 rows of grilles and 3 rows of diamond plate. All the materials are antiseptic and durable.

Ramps

Two pieces of 280*1800mm ramps.

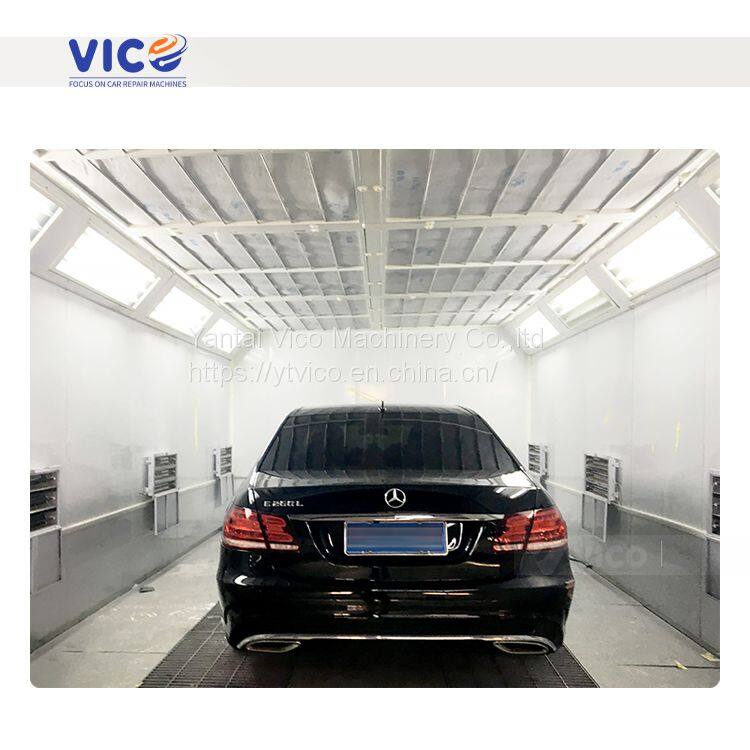

Lighting system

Using LED lamps, energy efficiency and longer life time than ordinary light.

With 45°installation at ceiling, 8 Unit box, 3x16W, ≥800Lux

Air intake system

2 sets axile flow fans,1.1 KW/set, total air volume:24000m³/h; side draft and the air speed 0.35m/s; air changes:280times/h. Galvanized steel structure and covered by steel board.

Air exhaust system

None blower, back exhaust chimney, pressure air outlet.

Control system

Switch control: lighting, painting, baking, temperature setting, time setting, urgent stop. Size: 500*700mm

Filter system

Primary filtration: high grade fiberglass filter dust ≥10um in the inlet; secondary filtration: EU5CC-600G filters filter the dust ≥5um in the roof. TSP value≤1.4mg/m³.

Waste gas treatment

(Optional)Primary treatment: under basement filters; secondary treatment: activated carbon filters in the exhaust port.

Exhaust chimney

3 straight tubes,1 elbow tube.

Available colors

Blue, Orange, red, grey white
