Product description

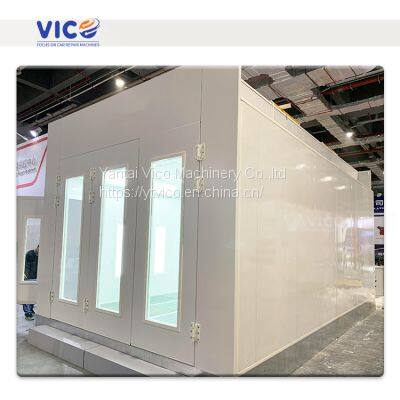

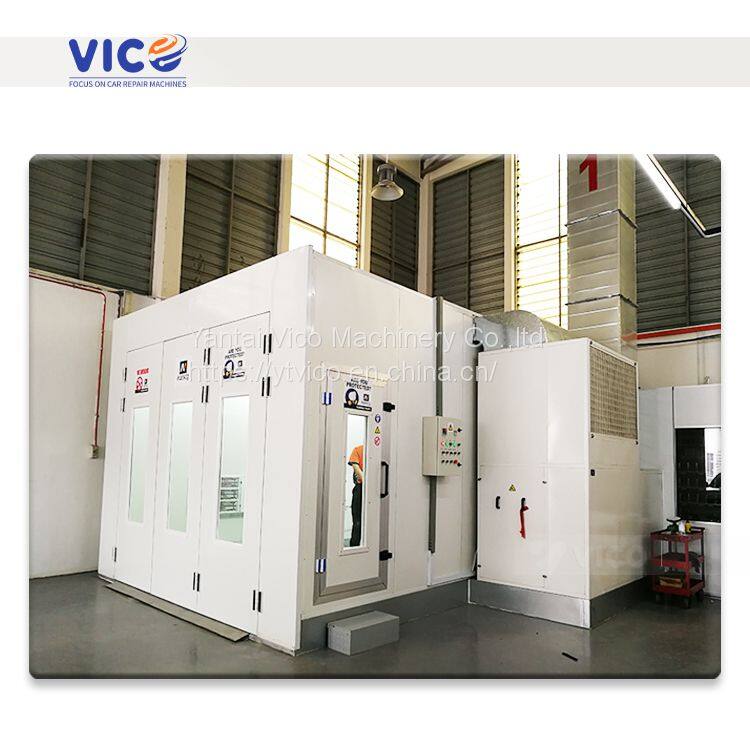

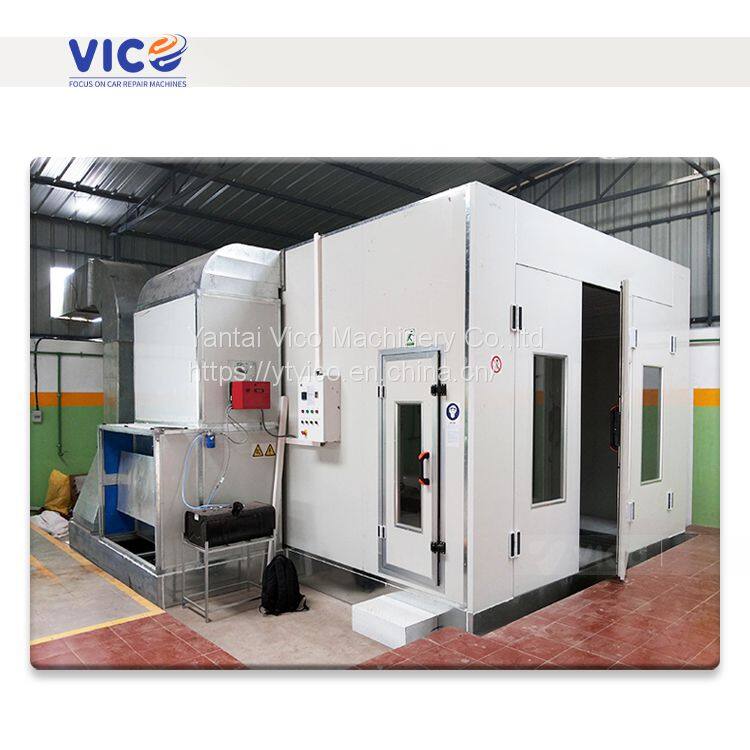

Hot sale spray car painting booth VPB-SD98
Specifications
Outside Dimension (mm) |
7000×5350×3400 |
Inside Dimension(mm) |
6900×3900×2650 |
Front Door(mm) |
3000×2600(W*H) |
Service door(mm) |
800×2000(W*H) |
Total Power |
17kw |
||

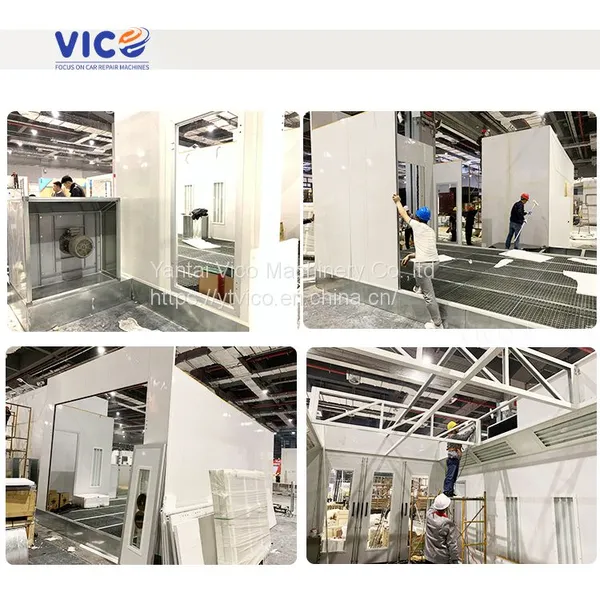

Cabin system |
Front door |
Sheet metal door, double side with PU insulated |
|
Wall panel |
50mm rockwool sandwich panel, steel sheet thickness: 0.426mm |
||
Ceiling panel |
0.8mm galvanized steel sheet |
||

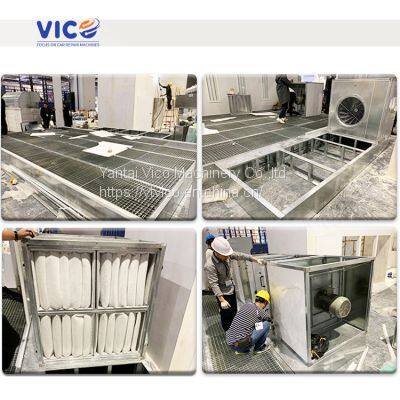

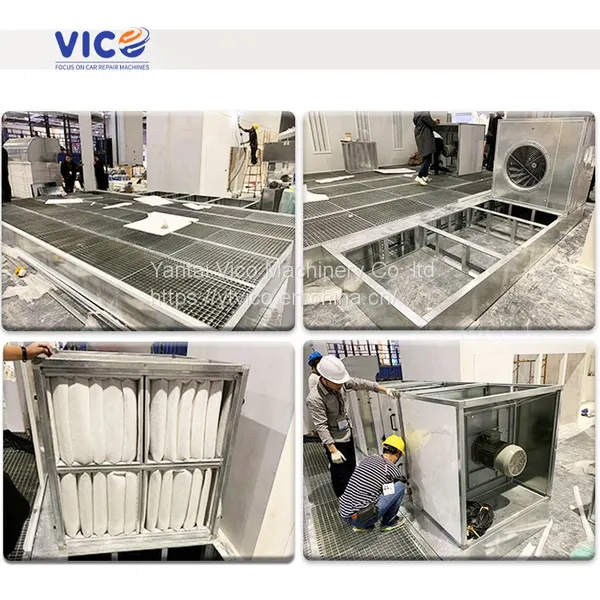

Basement |
300mm depth construction galvanized basement, full galvanized grids |
||
Ramps |
Two pieces 2000*750mm ramps |
||
Door glass |
5mm tempered glass |
||

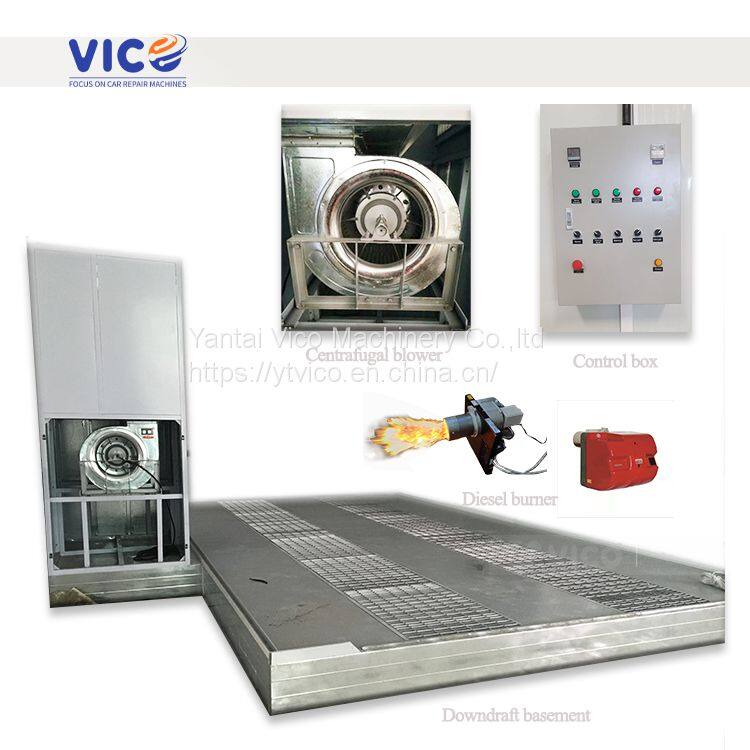

Air make-up system |
Air inlet fan system |
1 set 7.5kw turbo fan, fan model:DDF-630B, with one manual damper |
|
Exhausted fan system |
1 set 7.5kw turbo fan, fan model: DDF-630B, with one manual damper |
||
Air inlet capacity |
30000m3/h |
||
Exhausted capacity |
30000m3/h |
||
Exhausted ducting |
six meters straight galvanized ducting and two 135 degrees elbows |
||
Purification system |
Pre-filter |
G3 grade |
|

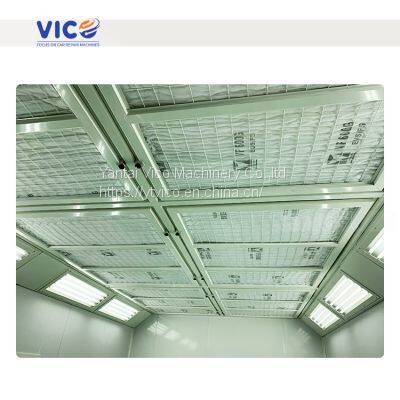

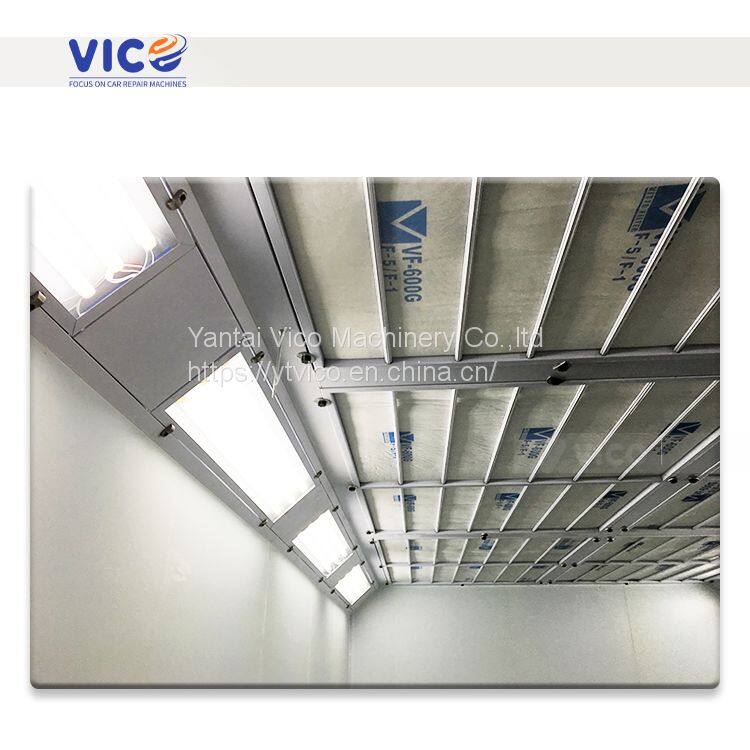

Ceiling filter |
600G filter EU5 / F5 |
||
Floor filter |
Fiber glass filter |
||
Exhausted filter |
Fiber glass and carbon filter |
||
Heating system |
Heat Exchanger |
SUS 304 200KW stainless heating exchanger |
|
Heating burner |
Riello G20 diesel oil burner (gas burner is for option) |
||
Heating productivity |
20000Kcal/hour |
||
Spray to baking switch |
Pneumatic damper |
||
Chimney ducting |
4 meters chimney ducting and one chimney elbow |
||
heating temperature |
Maximum 80℃ |
||
fuel consumption |
6-8L/vehicle |
||
Lighting system |
Ceiling lighting |
8 Units, each 4 * 16.5W LED lamps. |
|
Side lighting |
8 Units, each 2 * 16.5W LED lamps. |
||
Illumination |
1200LUX |
||
Control system |
Switch controlling system |
Spraying & baking switch, lighting switch, timer, temperature controlling switch, emergency stop, breakdown alarm, failure alarm, pressure gauge |
|
Package
20'GP container can load 1 set
40'HC container can load 3~4 sets
