SIMCOM SIM868 GPS 2G Module, GPS GSM Module SIM868
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIMCOM SIM7070E LTE CAT-M & NB-IoT & GPRS Module SIM7070NegotiableMOQ: 1 -
SIMCOM SIM7000A SIM7000E SIM7000G 4G Module LTE IoT NB-IoT LPWA ModuleNegotiableMOQ: 1
-
SIMCOM SIM7000G Cat-M/NB-IoT/GSM ModuleNegotiableMOQ: 1
-
SIMCOM SIM8200EA-M2 Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ Module Up to 4Gbps Data Transfer, 5G Module SIM8200EA SIM8200 M2NegotiableMOQ: 1
-
SIMCOM SIM8200EA-M2 Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ Module, 5G Module up to 4Gbps Data Transfer SIM8200EA SIM8200NegotiableMOQ: 1
Description

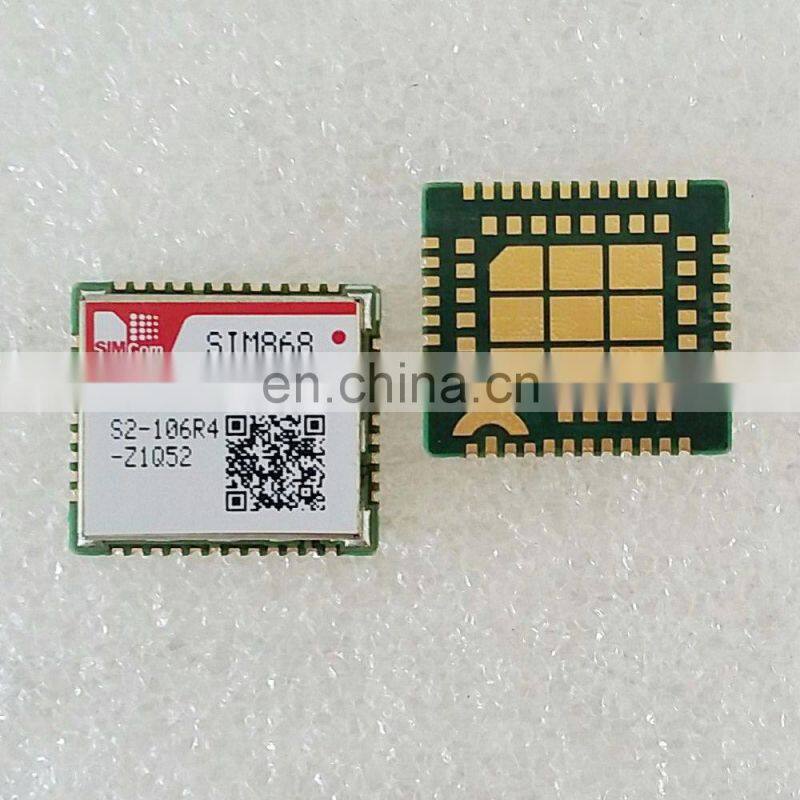

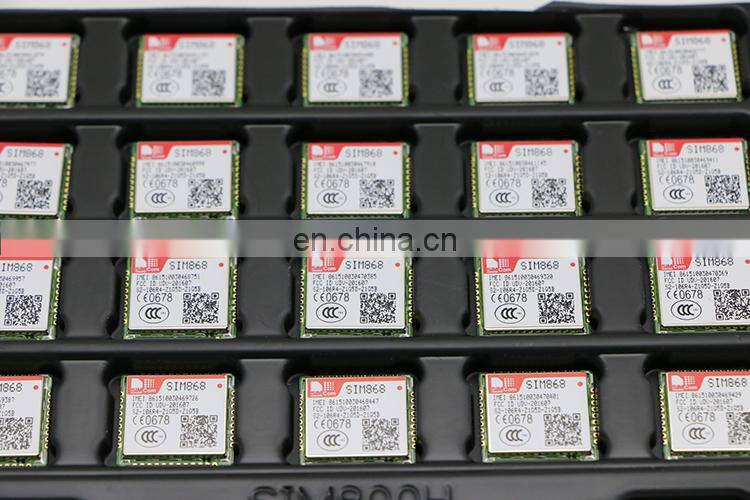

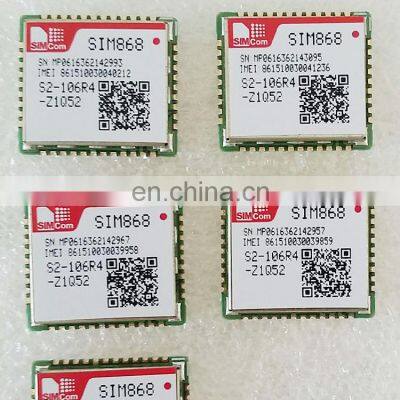

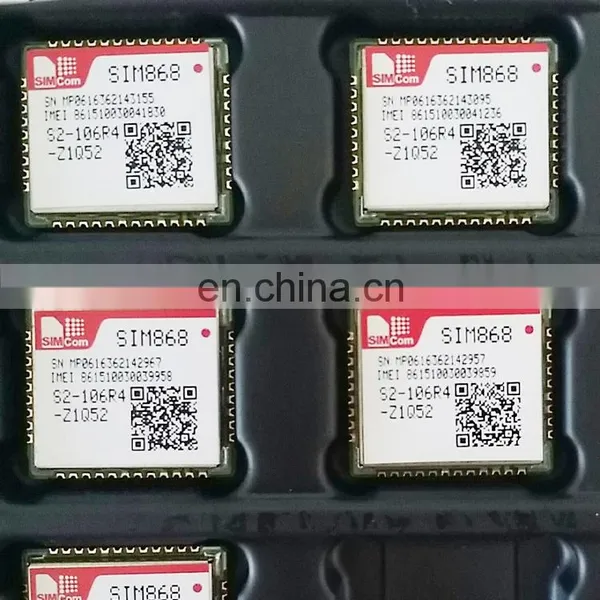

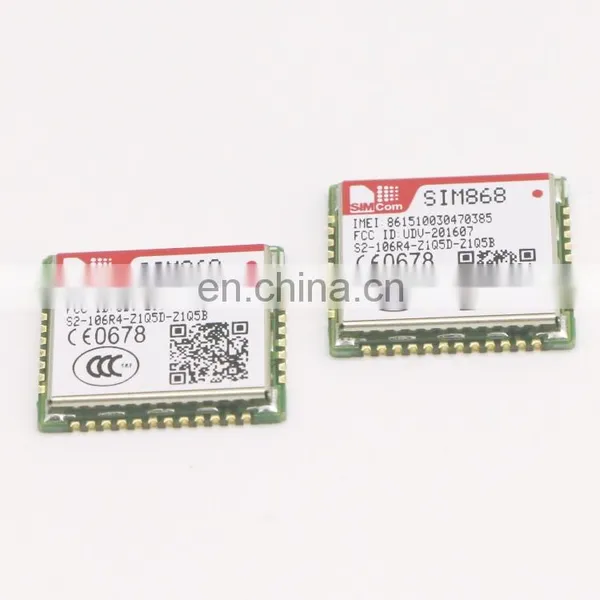

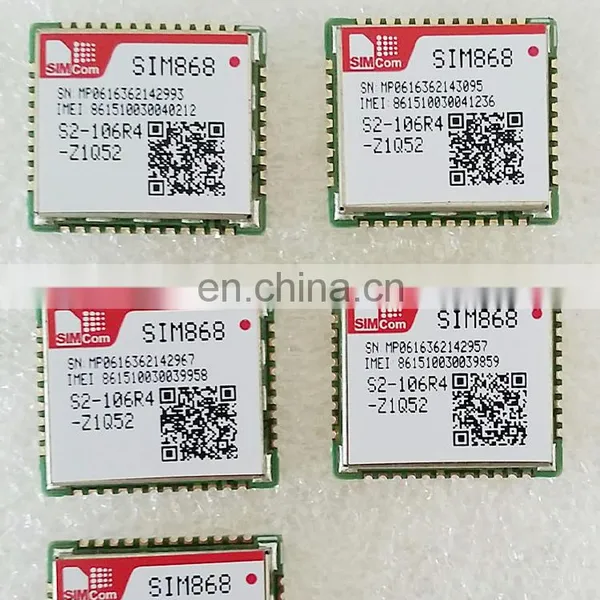

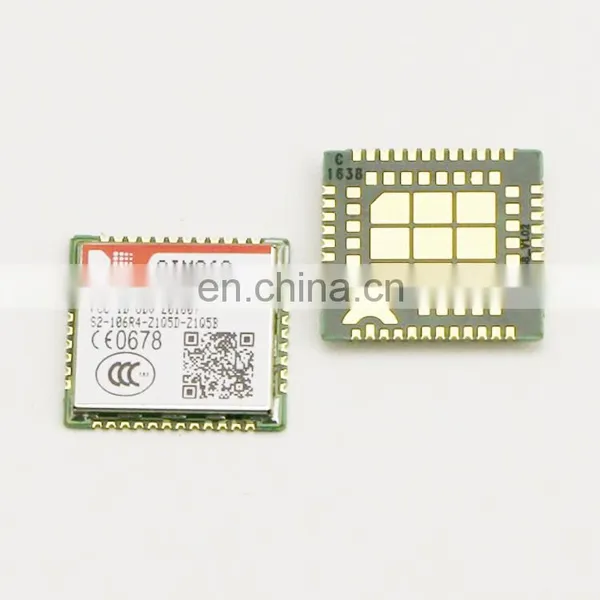

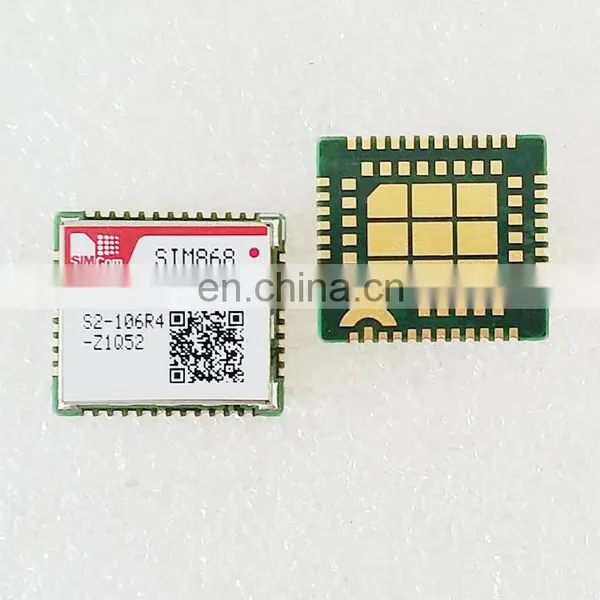

SIMCom SIM868 GSM+GPS/GNSS Module
• SIM868 module is a complete Quad-Band GSM/GPRS module which combines GNSS( GPS/GLONASS/BDS) technology for satellite navigation.
• The compact design with LCC and LGA pads will significantly save both time and costs for customers to develop GNSS enabled applications.
• The compact design with LCC and LGA pads will significantly save both time and costs for customers to develop GNSS enabled applications.
• Featuring an industry-standard interface and GNSS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.
Interfaces
•77 SMT pads
•SIM Card Interfaces
---SIM card: 3V/ 1.8V
•Analog audio interface
•RTC GNSS backup
•I2C interface
•USB interface
•Serial interface
•SD
•GPIO
•ADC
•GSM Antenna pad
•GNSS Antenna pad
Certifications
•CE
•FCC
•ROHS
•REACH
•CCC
•TA
General features
•Quad-band 850/900/1800/1900MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
–Class 4 (2 W @ 850/900MHz)
–Class 1 (1 W @ 1800/1900MHz)
•Support GPS/GLONASS/BD
•Dimensions: 17.6*15.7*2.3mm
•Weight: 1.5g
•Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40℃ ~85℃
Specifications for GPRS Data
•GPRS class 12: max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•USSD
Specifications for SMS via GSM/GPRS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•POP3/SMTP
•DTMF
•Jamming Detection
•Audio Record
•SSL
Specification for GNSS
Receiver type
-33 tracking /99 acquisition -channel
Sensitivity
-Tracking: -167 dBm
-Reacquisition: -161 dBm
-Cold starts : -149 dBm
Time-To-First-Fix
-Cold starts: 28s (typ.)
-Hot starts: <1s
-Warm starts: 22s
Accuracy
-Horizontal position : <2.5m CEP
•Quad-band 850/900/1800/1900MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
–Class 4 (2 W @ 850/900MHz)
–Class 1 (1 W @ 1800/1900MHz)
•Support GPS/GLONASS/BD
•Dimensions: 17.6*15.7*2.3mm
•Weight: 1.5g
•Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40℃ ~85℃
Specifications for GPRS Data
•GPRS class 12: max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•USSD
Specifications for SMS via GSM/GPRS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•POP3/SMTP
•DTMF
•Jamming Detection
•Audio Record
•SSL
Specification for GNSS
Receiver type
-33 tracking /99 acquisition -channel
Sensitivity
-Tracking: -167 dBm
-Reacquisition: -161 dBm
-Cold starts : -149 dBm
Time-To-First-Fix
-Cold starts: 28s (typ.)
-Hot starts: <1s
-Warm starts: 22s
Accuracy
-Horizontal position : <2.5m CEP
Interfaces
•77 SMT pads
•SIM Card Interfaces
---SIM card: 3V/ 1.8V
•Analog audio interface
•RTC GNSS backup
•I2C interface
•USB interface
•Serial interface
•SD
•GPIO
•ADC
•GSM Antenna pad
•GNSS Antenna pad
Certifications
•CE
•FCC
•ROHS
•REACH
•CCC
•TA
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
