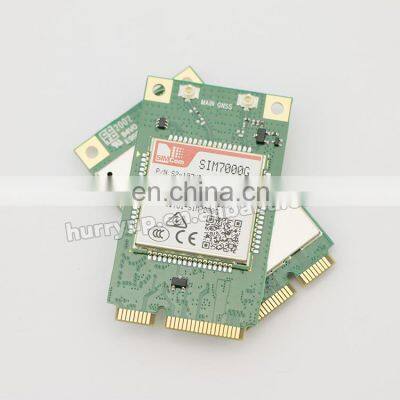

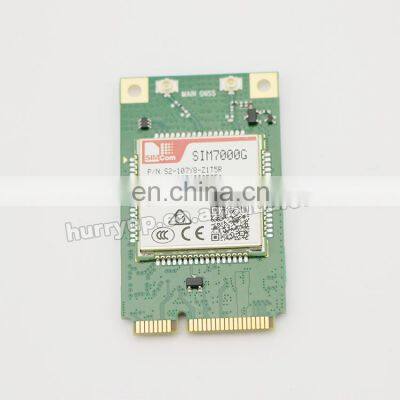

SIMCOM SIM7000G Cat-M/NB-IoT/GSM Module

SIMCOM SIM7000G Cat-M/NB-IoT/GSM Module thumbnail-1
SIMCOM SIM7000G Cat-M/NB-IoT/GSM Module thumbnail-2
SIMCOM SIM7000G Cat-M/NB-IoT/GSM Module thumbnail-3
SIMCOM SIM7000G Cat-M/NB-IoT/GSM Module thumbnail-4
SIMCOM SIM7000G Cat-M/NB-IoT/GSM Module thumbnail-5
SIMCOM SIM7000G Cat-M/NB-IoT/GSM Module photo-1
SIMCOM SIM7000G Cat-M/NB-IoT/GSM Module photo-2
SIMCOM SIM7000G Cat-M/NB-IoT/GSM Module photo-3
SIMCOM SIM7000G Cat-M/NB-IoT/GSM Module photo-4
SIMCOM SIM7000G Cat-M/NB-IoT/GSM Module photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Shenzhen Hurryup Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Description
SIM7000X Cat-M/NB-IoT/GSM
The SIM7000 series has powerful expansibility with abundant interfaces including UART, GPIO, PCM, I2C etc. The SIM7000 series is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc.

Product Advantages ● With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), the SIM7000 series can extend battery life to 10 years ● SIM7000 series provides deeper coverage enhancement compared to GSM ● The form factor and AT commands of the SIM7000 series are compatible with SIM900 and SIM800F
Product
SIM7000G
SIM7000E
SIM7000A
SIM7000JC
SIM7000C
Form factor
LCC, 68PIN
LCC, 68PIN
LCC, 68PIN
LCC, 68PIN
LCC, 68PIN
Dimensions(mm)
24*24*2.6
24*24*2.6
24*24*2.6
24*24*2.6
24*24*2.6
Frequency Bands
Cat-M
B1/B2/B3/B4/B5/B8/B12/B13/B17/
B18/B19/B20/B25/B26/B28/B39
B3/B5/B8/B20/B28
B2/B4/B12/B13
B1/B3/B5/B8/B18/B19/B26
B1/B3/B5/B8
Cat-NB
B1/B2/B3/B4/B5/B8/B12/B13/B17/
B18/B19/B20/B25/B26/B28
B3/B5/B8/B20/B28
B2/B4/B12/B13
B1/B3/B5/B8/B18/B19/B26
B1/B3/B5/B8
GSM
850/900/1800/1900MHz
900/1800MHz
900/1800MHz
GNSS
o
o
o
o
o
Temperature
-40℃ ~ +85℃
-40℃ ~ +85℃
-40℃ ~ +85℃
-40℃ ~ +85℃
-40℃ ~ +85℃
Electrical Features
Supply Voltage Range(V)
3.0~ 4.3
3.0~ 4.3
3.0~ 4.3
3.0~ 4.3
3.0~ 4.3
Power Consumption
Power Off(uA)
7
7
7
7
7
PSM(uA)
9
9
9
9
9
Sleep(mA)
1
1
1
1
1
Idle(mA)
11
11
11
11
11
Data Transfer
Cat-M(Kbps)
300(DL)/375(UL)
300(DL)/375(UL)
300(DL)/375(UL)
300(DL)/375(UL)
300(DL)/375(UL)
Cat-NB(Kbps)
34(DL)/66(UL)
34(DL)/66(UL)
34(DL)/66(UL)
34(DL)/66(UL)
34(DL)/66(UL)
EGPRS(Kbps)
85.6(DL)/85.6(UL)
85.6(DL)/85.6(UL)
85.6(DL)/85.6(UL)
Software Features
Protocol
TCP/UDP/LWM2M/COAP/MQTT/
FTP/HTTP/TLS/DTLS/NTP
TCP/UDP/LWM2M/COAP/MQTT/
FTP/HTTP/TLS/DTLS/NTP
TCP/UDP/LWM2M/COAP/MQTT/FTP/HTTP/TLS/DTLS/NTP
TCP/UDP/LWM2M/COAP/MQTT/
FTP/HTTP/TLS/DTLS/NTP
TCP/UDP/LWM2M/COAP/MQTT/FTP/HTTP/TLS/DTLS/NTP
FOTA
●
●
●
●
●
Embedded AT
●
●
●
●
●
Firmware Upgrade
USB/FOTA
USB/FOTA
USB/FOTA
USB/FOTA
USB/FOTA
Interfaces
SIM Card
1.8V/3.0V
1.8V/3.0V
1.8V/3.0V
1.8V/3.0V
1.8V/3.0V
UART
●
●
●
●
●
USB
●
●
●
●
●
PCM
●
●
●
●
●
ADC
●
●
●
●
●
I2C
●
●
●
●
●
Certification
Regulatory
FCC/IC/CE/3C/GCF/RoHS/REACH
CE/RCM/IMDA/GCF/RoHS/REACH
FCC/IC/GCF/RoHS/REACH
JATE/TELEC/RoHS/REACH
CCC/NAL/SRRC/RoHS/REACH
Carrier
Deutsche Telekom /ORANGE*/
PTCRB
TELSTRA/VDF*/ORANGE*/TIM*/
GCF/Deutsche Telekom
AT&T/VERIZON/
ROGERS*/PTCRB/GCF
KDDI/DoCoMo*
CMCC/CUCC/CT
●: support       o: optional       * : on going
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products? A1. Minimum order quantity starts from ONE piece. Q2. What's the quality of your products? A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products. Q3. Is this product free of shipping or free samples? A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
