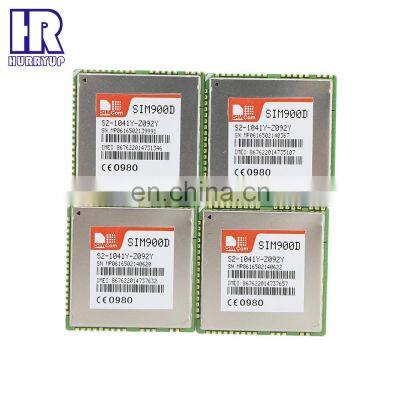

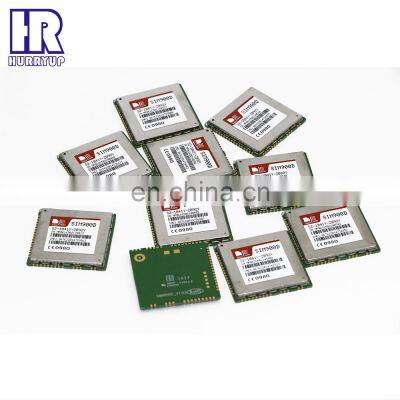

SIMCOM Ultra Compact Wireless GSM GPRS Module SIM900D
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Simcom Gsm/gprs Module Sim900 Evb KitNegotiableMOQ: 1 -
SIMCOM Sim900a Datasheet Sim900 Cheap Price Data SheetNegotiableMOQ: 1
-
SIMCOM SIM900 GSM GPRS Module Sim900te-c DatasheetNegotiableMOQ: 1
-
SIM800 Pin to Pin Sim900a Sim900 Quad Band Gsm Gprs ModuleNegotiableMOQ: 1
-
SIM900 SIMCOM GPRS Gps Wifi Gsm MODULENegotiableMOQ: 1
Description
1. Quad-band GSM/GPRS 850/900/1800/1900MHz
2. Very powerful single-chip processor integrating AMR926EJ-S core
3. SIMCOM New and Original in STOCK!!
2. Very powerful single-chip processor integrating AMR926EJ-S core
3. SIMCOM New and Original in STOCK!!
General features
* Quad-Band 850/ 900/ 1800/ 1900 MHz
* GPRS multi-slot class 10/8
* GPRS mobile station class B
* Compliant to GSM phase 2/2+
- Class 4 (2 W 850/ 900 MHz)
- Class 1 (1 W 1800/1900MHz)
* Dimensions: 33* 33 * 3 (mm)
* Weight: 6.2g
* Quad-Band 850/ 900/ 1800/ 1900 MHz
* GPRS multi-slot class 10/8
* GPRS mobile station class B
* Compliant to GSM phase 2/2+
- Class 4 (2 W 850/ 900 MHz)
- Class 1 (1 W 1800/1900MHz)
* Dimensions: 33* 33 * 3 (mm)
* Weight: 6.2g
• SIMCom presents an ultra compact and reliable wireless module-SIM900D. This is a complete Quad-band GSM/GPRS module in a SMT type and designed with a very powerful single-chip processor integrating AMR926EJ-S core, allowing you to benefit from small dimensions and cost-effective solutions. Furthermore, SIM900D can be compatible with SIM340DZ.
• Featuring an industry-standard interface, the SIM900D delivers GSM/GPRS 850/900/1800/1900MHz performance for voice, SMS, Data, and Fax in a small form factor and with low power consumption. With a tiny configuration of 33mm x 33mm x 3 mm, SIM900D can fit almost all the space requirements in your M2M applications, especially for slim and compact demands of design.
• Featuring an industry-standard interface, the SIM900D delivers GSM/GPRS 850/900/1800/1900MHz performance for voice, SMS, Data, and Fax in a small form factor and with low power consumption. With a tiny configuration of 33mm x 33mm x 3 mm, SIM900D can fit almost all the space requirements in your M2M applications, especially for slim and compact demands of design.
General features
* Quad-Band 850/ 900/ 1800/ 1900 MHz
* GPRS multi-slot class 10/8
* GPRS mobile station class B
* Compliant to GSM phase 2/2+
- Class 4 (2 W 850/ 900 MHz)
- Class 1 (1 W 1800/1900MHz)
* Dimensions: 33* 33 * 3 (mm)
* Weight: 6.2g
* Control via AT commands (GSM 07.07, 07.05 and SIMCOM enhanced AT Commands)
* SIM application toolkit
* Supply voltage range: 3.2...4.8V
* Low power consumption: 1.5mA(sleep mode)
* Operation temperature: -40 ° C to +85° C
Specifications for Fax
* Group 3, class 1
Specifications for Data
* GPRS class 10: Max. 85.6 kbps (downlink)
* PBCCH support
* Coding schemes CS 1, 2, 3, 4
* CSD up to 14.4 kbps
* USSD
* Non transparent mode
* PPP-stack
Specifications for SMS via GSM/GPRS
* Point-to-point MO and MT
* SMS cell broadcast
* Text and PDU mode
* Quad-Band 850/ 900/ 1800/ 1900 MHz
* GPRS multi-slot class 10/8
* GPRS mobile station class B
* Compliant to GSM phase 2/2+
- Class 4 (2 W 850/ 900 MHz)
- Class 1 (1 W 1800/1900MHz)
* Dimensions: 33* 33 * 3 (mm)
* Weight: 6.2g
* Control via AT commands (GSM 07.07, 07.05 and SIMCOM enhanced AT Commands)
* SIM application toolkit
* Supply voltage range: 3.2...4.8V
* Low power consumption: 1.5mA(sleep mode)
* Operation temperature: -40 ° C to +85° C
Specifications for Fax
* Group 3, class 1
Specifications for Data
* GPRS class 10: Max. 85.6 kbps (downlink)
* PBCCH support
* Coding schemes CS 1, 2, 3, 4
* CSD up to 14.4 kbps
* USSD
* Non transparent mode
* PPP-stack
Specifications for SMS via GSM/GPRS
* Point-to-point MO and MT
* SMS cell broadcast
* Text and PDU mode
Software features
* 0710 MUX protocol
* embedded TCP/UDP protocol
* FTP/HTTP( available at July, 2010)
* FOTA ( available at July, 2010)
* MMS (available at July, 2010)
* Embedded AT (available at Q3, 2010)
Specifications for Voice
* Tricodec
- Half rate (HR)
- Full rate (FR)
- Enhanced Full rate (EFR)
Hands-free operation
(Echo suppression)
AMR
- Half rate (HR)
- Full rate (FR)
Interfaces
* Interface to external SIM 3V/ 1.8V
* analog audio interface
* RTC backup
* SPI interface (option)
* Serial interface
* Embedded SIM (option)
* Antenna pad
* GPIO
* ADC
* Charge interface for Li battery
* PWM
Compatibility
* AT cellular command interface
Certificates:
* RoHS
* REACH
Certificates(on going)
* CE
* FCC
* GCF
* IC
* 0710 MUX protocol
* embedded TCP/UDP protocol
* FTP/HTTP( available at July, 2010)
* FOTA ( available at July, 2010)
* MMS (available at July, 2010)
* Embedded AT (available at Q3, 2010)
Specifications for Voice
* Tricodec
- Half rate (HR)
- Full rate (FR)
- Enhanced Full rate (EFR)
Hands-free operation
(Echo suppression)
AMR
- Half rate (HR)
- Full rate (FR)
Interfaces
* Interface to external SIM 3V/ 1.8V
* analog audio interface
* RTC backup
* SPI interface (option)
* Serial interface
* Embedded SIM (option)
* Antenna pad
* GPIO
* ADC
* Charge interface for Li battery
* PWM
Compatibility
* AT cellular command interface
Certificates:
* RoHS
* REACH
Certificates(on going)
* CE
* FCC
* GCF
* IC
