Roll to Sheet Cutting Machine for PET PVC PC PE Reflector Film Insulation Paper Copper/aluminum Foil

Roll to Sheet Cutting Machine for PET PVC PC PE Reflector Film Insulation Paper Copper/aluminum Foil photo-1

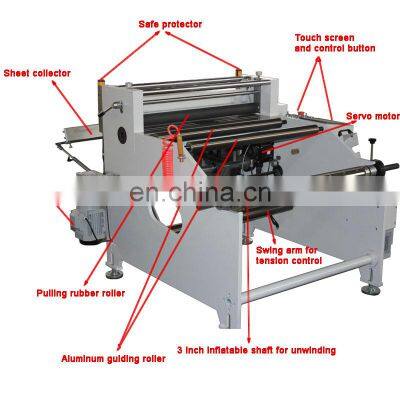

Roll to Sheet Cutting Machine for PET PVC PC PE Reflector Film Insulation Paper Copper/aluminum Foil photo-2
Roll to Sheet Cutting Machine for PET PVC PC PE Reflector Film Insulation Paper Copper/aluminum Foil photo-3
Roll to Sheet Cutting Machine for PET PVC PC PE Reflector Film Insulation Paper Copper/aluminum Foil photo-4

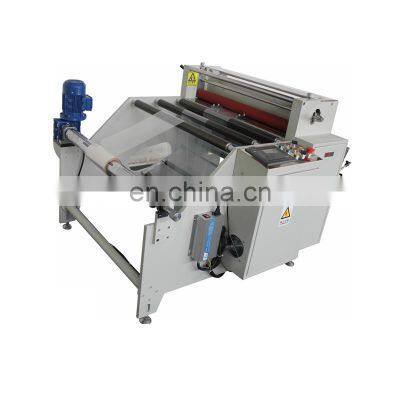

Roll to Sheet Cutting Machine for PET PVC PC PE Reflector Film Insulation Paper Copper/aluminum Foil photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

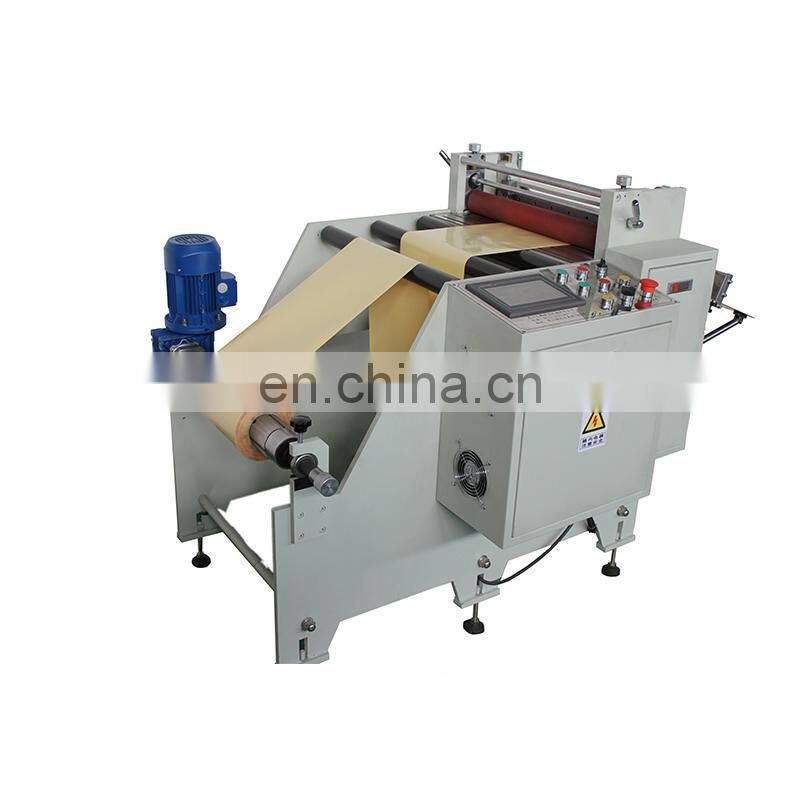

Roll to sheet cutting machine for PET PVC PC PE reflector film insulation paper copper/aluminum foil



Functional Characteristics:

1.DELTA servo motor pull the material,high precision.

2.MITSUBISHI PLC with touch screen to set any length,quantity,speed.

3.3 inch inflatable shaft for unwinding.

4.Pulling roller coat thick PU rubber and won't scratch the material.

5.Polished and anodized aluminum guiding roller,very smooth and never harm the material.

6.Long service life of the SKD11 cutting blade and cut the sheet edge smoothly.

7.Optional:Electrical static eliminator to remove static electricity.Panasonic photocell to track the printed mark for precise cutting.etc



Purpose:

This machine can cut flexible materials from roll to sheet,such as plastic,paper,label,film,foam,etc.



Technical Data:

Model

DP-360 DP-500 DP-600 DP-800 DP-1000 DP-1400

Max Feeding Width ( mm )

360 500 600 800 1000 1400

Max unwind roll diameter(mm )

600 600 600 800 900 800
Max unwind roll weight(kg) 40 40 40 50-60 50-60 50-60
Unwind shaft diameter 3 inch or 6 inch 3 inch or 6 inch 3 inch or 6 inch 3 inch or 6 inch 3 inch or 6 inch 3 inch or 6 inch
speed ( times/minute ) 40 (Cut 450mm)   70 (Cut 320mm) 50-80 (Cut 600mm) 50-80 (Cut 600mm) 50-80 (Cut 600mm) 80 (Cut 100mm)
Total Power 1.5kw 1.5kw 2.5kw 3kw 3kw 4kw
Precision ( mm ) ±0.10        ±0.10      ±0.10 ±0.10      ±0.10      ±0.10

Voltage

380V 50HZ 380V 50HZ 380V 50HZ 380V 50HZ 380V 50HZ 380V 50HZ
