PVC Film Roll to Sheet Cutting Machine With Conveyor Belt and Static Eliminator

PVC Film Roll to Sheet Cutting Machine With Conveyor Belt and Static Eliminator photo-1

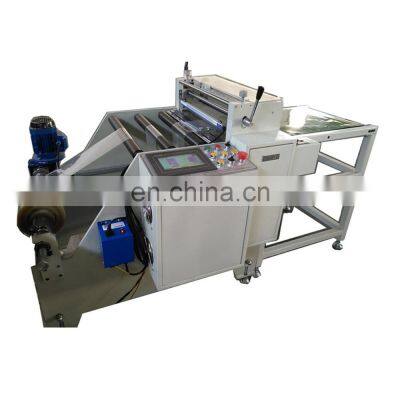

PVC Film Roll to Sheet Cutting Machine With Conveyor Belt and Static Eliminator photo-2
PVC Film Roll to Sheet Cutting Machine With Conveyor Belt and Static Eliminator photo-3
PVC Film Roll to Sheet Cutting Machine With Conveyor Belt and Static Eliminator photo-4
PVC Film Roll to Sheet Cutting Machine With Conveyor Belt and Static Eliminator photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.



PVC Film Roll to Sheet Cutting Machine with Conveyor Belt and Static Eliminator



Functional Characteristics:

1.DELTA servo motor pull the material,high precision.

2.MITSUBISHI PLC with touch screen to set any length,quantity,speed.

3.3 inch inflatable shaft for unwinding.

4.Pulling roller coat thick PU rubber and won't scratch the material.

5.Polished and anodized aluminum guiding roller,very smooth and never harm the material.

6.Long service life of the SKD11 cutting blade and cut the sheet edge smoothly.

7.Electrical static eliminator to remove static electricity.

8.With 700mm length conveyor belt.

9.Other standard machine:360mm,600mm,800mm,1000mm,1400mm.



Purpose:

This machine can cut flexible materials from roll to sheet,such as plastic,paper,label,film,foam,aluminum foil etc.



Technical Data:

Model

DP-500

Max. workable width ( mm )

500

Max. unwind roll diameter(mm )

600
Max. unwind roll weight(kg) 40
Unwind shaft diameter 3 inch or 6 inch
speed ( times/minute ) 70 (Cut 320mm)
Total Power 1.5kw
PLC MITSUBISHI
Servo Motor Servo Driver                                               DELTA
Precision ( mm ) ±0.10

Voltage

380V 50HZ



Electrical listing:

Touch Screen

KUNLUNTONGTAI

Made in China

Programmable Controller

MITSUBISHI

Made in Japan

Servo Driver

Delta

Made in Taiwan

Servo Motor

Delta

Made in Taiwan

Motor of cutting knife

SHENLI

Made in China

AC Contactor

CHNT

Made in China

Solid State Relay 20A

GOLD ELECTRICAL CONTROL

Made in China



PVC Film Roll to Sheet Cutting Machine with Conveyor Belt and Static Eliminator

PVC Film Roll to Sheet Cutting Machine with Conveyor Belt and Static EliminatorPVC Film Roll to Sheet Cutting Machine with Conveyor Belt and Static Eliminator

PVC Film Roll to Sheet Cutting Machine with Conveyor Belt and Static EliminatorPVC Film Roll to Sheet Cutting Machine with Conveyor Belt and Static Eliminator
