PET PVC PE PP protective film aluminum foil paper label foam roll to sheet cutting machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- Leizhan Disc sludge thickener for paper pulp making production line
- 2013HOT SELL Stainless steel structure Disc thickener for paper pulp making production line
- Disc pulp filter machine of fluting and kraft paper production line
- Leizhan waste paper recycle equipment ZNP series disc thickener/paper processing equipment/paper pulp machinery
- disc thickener/paper pulp industrial use
- disc thickener used for washing and thickening/paper making industry
Product Description
Product Overview

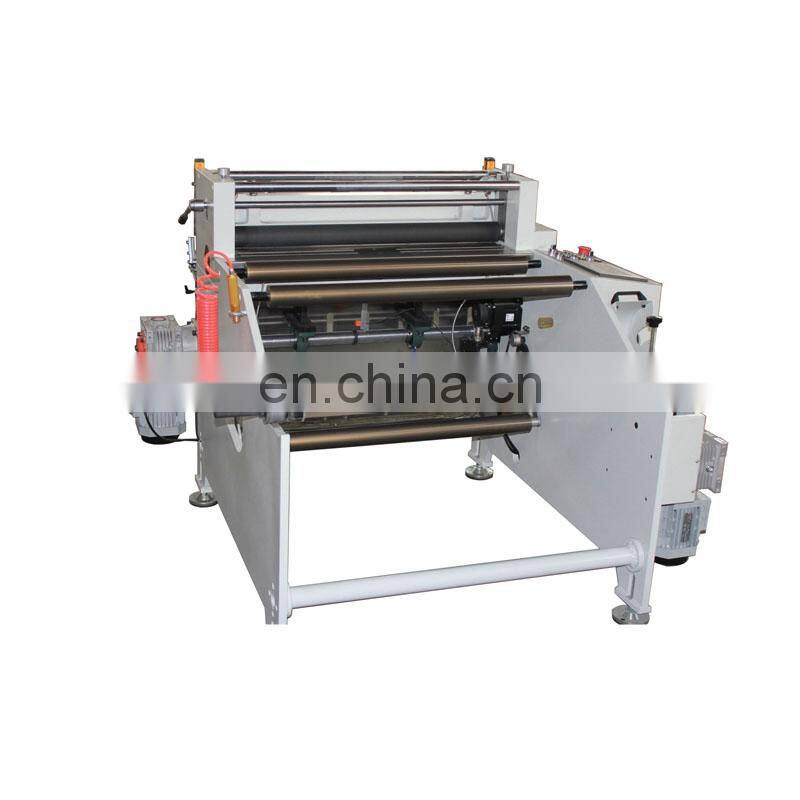

PET PVC PE PP protective film aluminum foil paper label foam roll to sheet cutting machine
This machine can cut flexible materials from roll to sheet,such as plastic,paper,label,film,foam,aluminum foil etc.
DELTA Servo motor pull the material,high precision.
MITSUBISHI PLC with touch screen to set any length,quantity,speed.
Durable SKD11 blade.
FEATURES AT A GLANCE

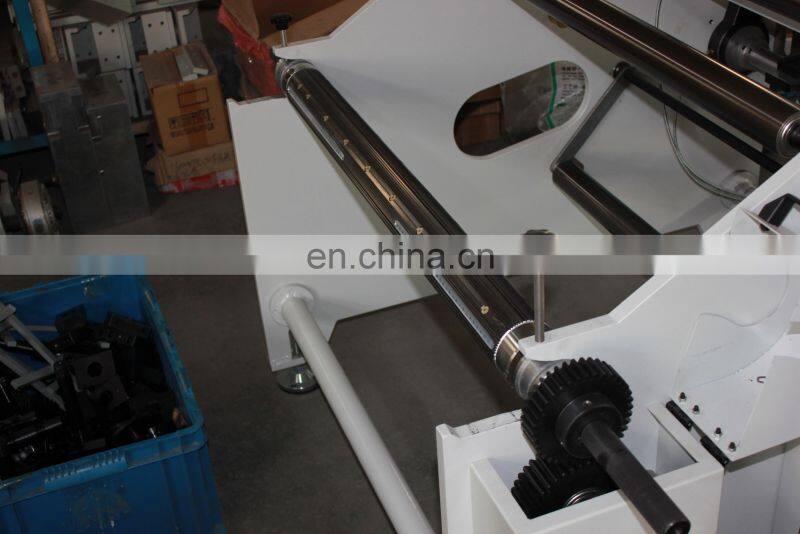

3 inch inflatable shaft for unwinding,6 inch is optional.
The unwind shaft can be taken off for the heavy roll material.

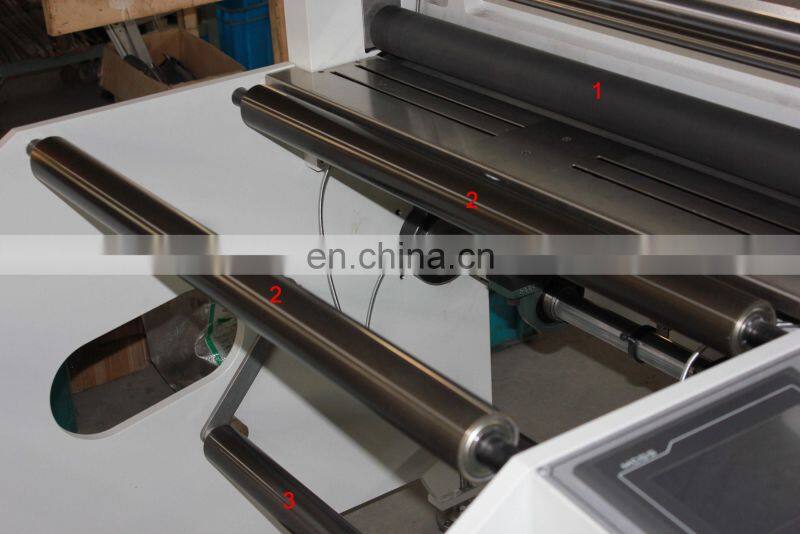

1.Servo motor connect with the rubber roller to pull the material,high precision.
2.Polished and anodized aluminum guiding roller leads the material always in the right way.
3.Swing arm to control the feeding tension.

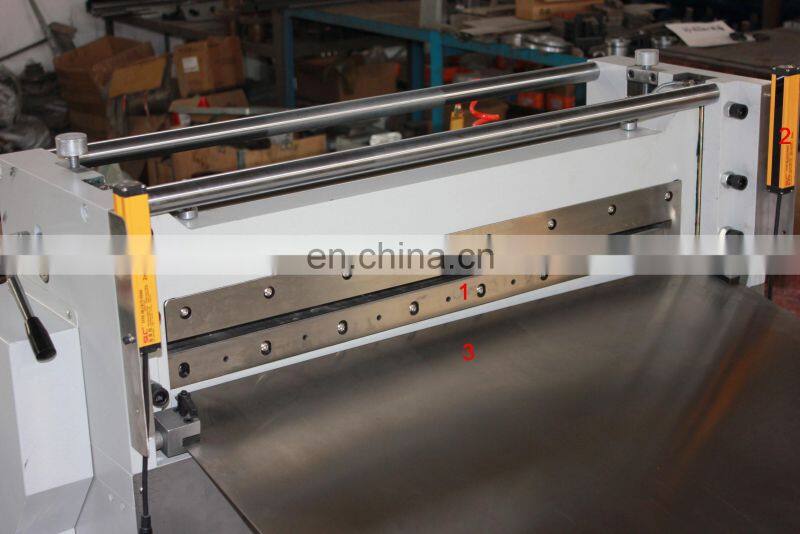

1.Durable SKD11 blade,easy adjust,provide the manual to you.
2.2 sensor to protect operator safe.
3.Mirror polish collector.

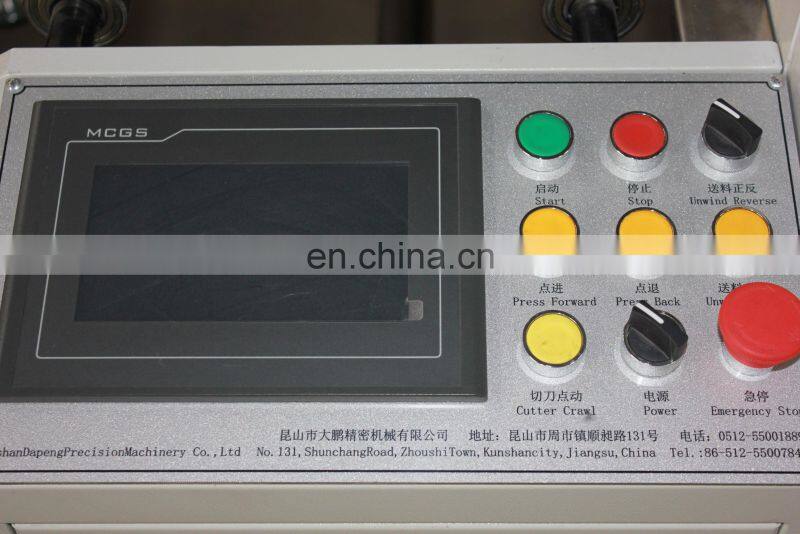

On the touch screen,you can set any length,quantity,speed ,etc.
With standard MITSUBISHI PLC and DELTA servo driver &motor,other brands is optional.

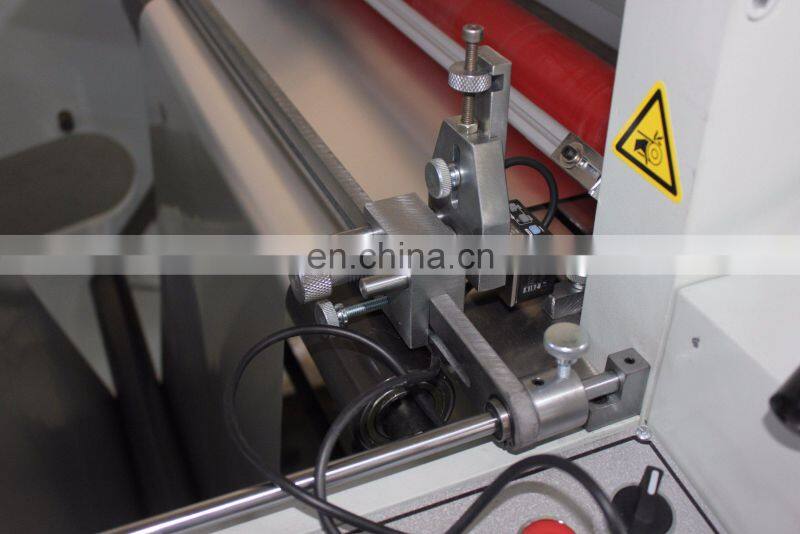

Optional:1.Panasonic photocell to track the printed mark for precise cutting.
2.Electrical static eliminator to remove static electricity.
3.Conveyor belt.
4.Slitting function.
PRODUCT SPECIFICATIONS
Model | DP-360 | DP-500 | DP-600 | DP-800 | DP-1000 | DP-1400 |
Max Feeding Width ( mm ) | 360 | 500 | 600 | 800 | 1000 | 1400 |
Max unwind roll diameter(mm ) | 600 | 600 | 600 | 800 | 900 | 800 |
Max unwind roll weight(kg) | 40 | 40 | 40 | 50-60 | 50-60 | 50-60 |
Unwind shaft diameter | 3 inch or 6 inch | 3 inch or 6 inch | 3 inch or 6 inch | 3 inch or 6 inch | 3 inch or 6 inch | 3 inch or 6 inch |
speed ( times/minute ) | 40 (Cut 450mm) | 70 (Cut 320mm) | 50-80(Cut 600mm) | 50-80 (Cut 600mm) | 50-80 (Cut 600mm) | 80 (Cut 100mm) |
Power | 1kw | 1.5kw | 2.5kw | 3kw | 3kw | 4kw |
Precision ( mm ) | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 | ±0.10 |
Voltage | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ |

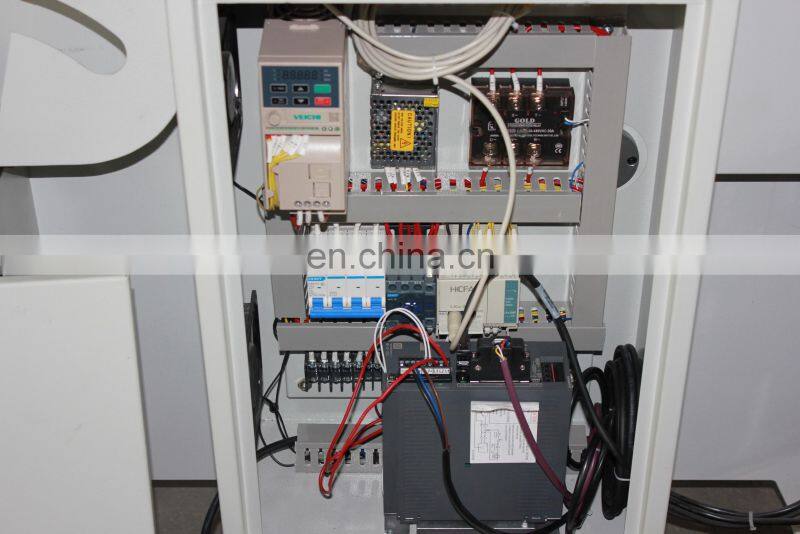

PRODUCT CONFIGURATION
Touch Screen | KUNLUNTONGTAI | Made in China |
Programmable Controller | MITSUBISHI | Made in Japan |
Servo Driver | Delta | Made in Taiwan |
Servo Motor | Delta | Made in Taiwan |
Motor of cutting knife | SHENLI | Made in China |
AC Contactor | CHNT | Made in China |
Solid State Relay 20A | GOLD ELECTRICAL CONTROL | Made in China |
