Roll to sheet cutting machine with slitting function for paper label sticker PET PVC film

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Roll to sheet cutting machine with slitting function for paper label sticker PET PVC film

Functional Characteristics:

1.DELTA servo motor pull the material,high precision.

2.MITSUBISHI PLC with touch screen to set any length,quantity,speed.

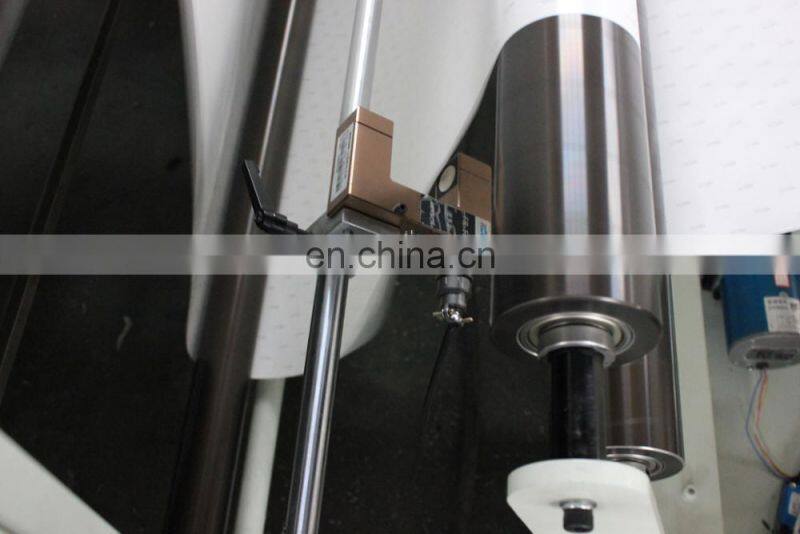

3.3 inch inflatable shaft for unwinding,with ultrasonic rectification system.

4.Pulling roller coat thick PU rubber and won't scratch the material.

5.Polished and anodized aluminum guiding roller,very smooth and never harm the material.

6.Long service life of the SKD11 cutting blade and cut the sheet edge smoothly.

7.With 8 rotary slitting blade,the minimum slitting width is 25mm.

8.Optional:Panasonic photocell to track the printed mark for precise cutting.etc

Purpose:

This machine can cut flexible materials from roll to sheet,such as plastic,paper,label,film,foam,etc.

Technical Data:

Model	DP-360	DP-500	DP-600	DP-800	DP-1000	DP-1400
Max Feeding Width ( mm )	360	500	600	800	1000	1400
Max unwind roll diameter(mm )	600	600	600	800	900	800
Max unwind roll weight(kg)	40	40	40	50-60	50-60	50-60
Unwind shaft diameter	3 inch or 6 inch	3 inch or 6 inch	3 inch or 6 inch	3 inch or 6 inch	3 inch or 6 inch	3 inch or 6 inch
speed ( times/minute )	40 (Cut 450mm)	70 (Cut 320mm)	50-80 (Cut 600mm)	50-80 (Cut 600mm)	50-80 (Cut 600mm)	80 (Cut 100mm)
Total Power	1.5kw	1.5kw	2.5kw	3kw	3kw	4kw
Precision ( mm )	±0.10	±0.10	±0.10	±0.10	±0.10	±0.10
Voltage	380V 50HZ	380V 50HZ	380V 50HZ	380V 50HZ	380V 50HZ	380V 50HZ
