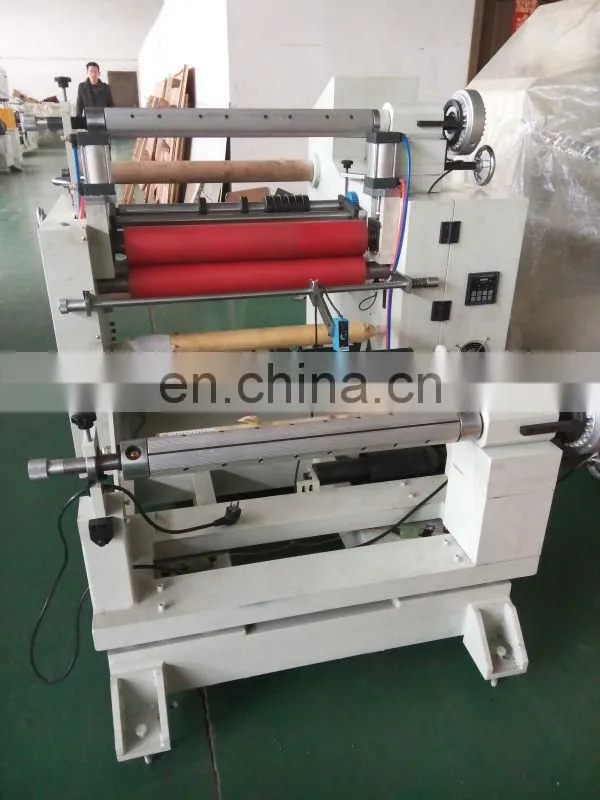

Paper Slitter Machine
1. Tehnical Data
Auto Speed : 80m/min
Material roll max length : 650mm
Feeding material diameter : 600 mm
Put film diameter :350mm
Winding diameter : 450mm
Precision cutting : ±0.1mm
Voltage:220V 50HZ
Main Motor Power: 2.2kw
Total Power : 3kw
Raw material max hole diameter : 3″
Compressed air :(0.4-0.6)Mpa(customer prepare by themselves .)
Standard Slitting finished products Min width: 25mm
Machine size : 2400*1700*1300mm
Weight : 1.5T
2. Feeding Device
Feeding air expansion shaft(3″Pad shaft) 2 sets
magnetic powder brake 25N 1 set
Release of membrane magnetic powder brake 25N 1 set
Feeding tension control system 2 Sets

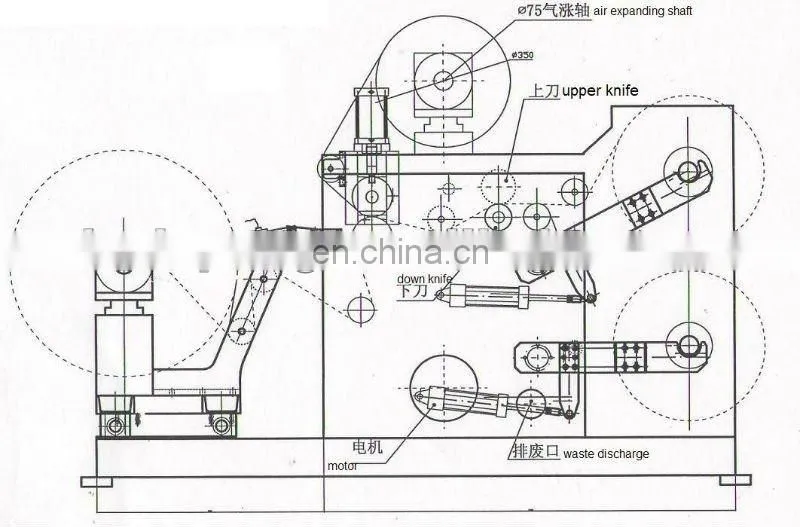

3. Slitting system

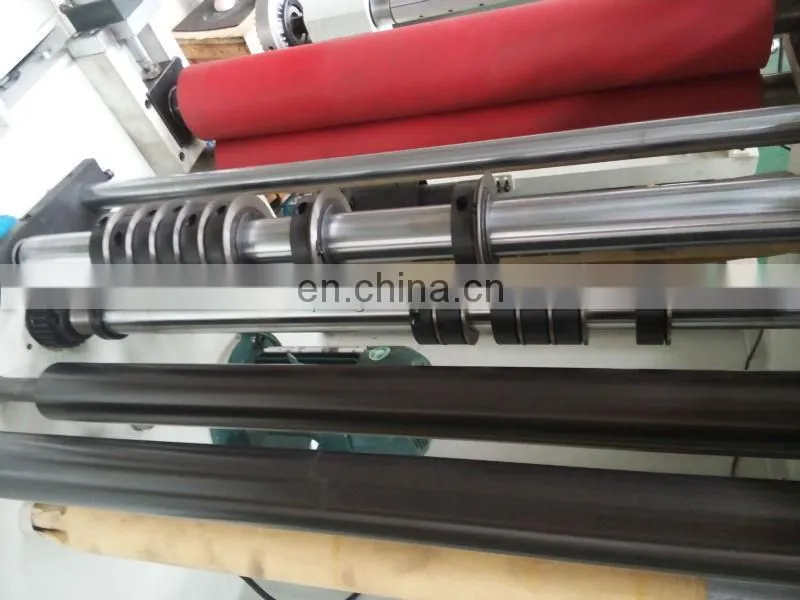

Upper circular cutter shaft Dia.65 1Set
Underneath circular cutter shaft Dia.65 1Set
Manual fine-tuning lock device
Main function profile
Frequency control of motor speed, more easy operation , more accuracy control .
Double the receiving of the center axis of winding , rewinding.
Double receiving magnetic power tension independent control , can rewinding at the same time , and also can independent use .
The electronic counter with function of automatic count meter to set length , automatic stop , accuracy is 0.01 , and error ±0.15m , independent fan of waste discharge.
| Model | 650 multifunction slitting laminating machine |
| Max Feeding Width ( mm ) | 650 |
| Main Engine Power ( KW ) | 2.2 |
| Speed (M/M ) | 80 |
| Size ( mm ) | 2400*1700*1300 |
| Weight ( KG ) | 1000 |
| Rewinding Diameter (mm ) | 600 |
| Winding Diameter ( mm ) | 450 |
| Precision ( mm ) | ±0.10 |
| Power | 220V 50Hz |
