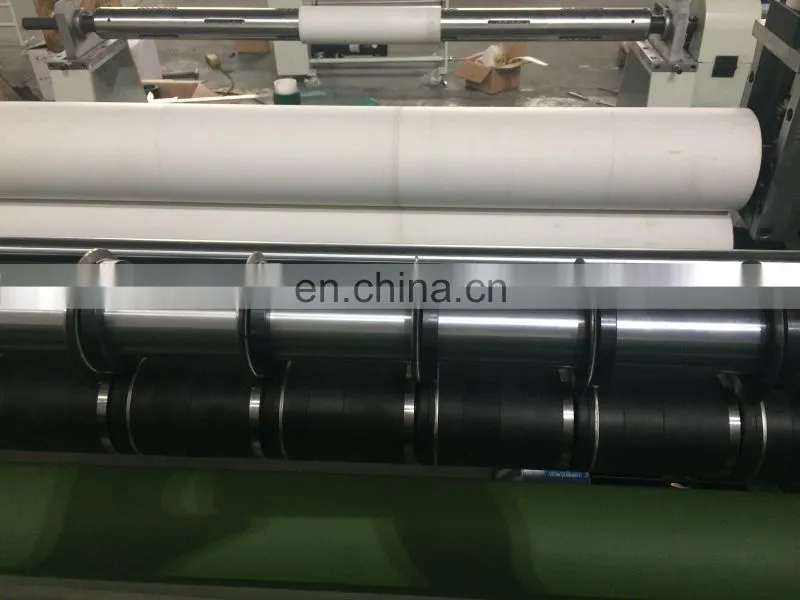

China manufacturer Prepreg DMD Slitting Machine
Product Detail
| max feeding width | 1300mm |
| main engine power | 6KW |
| weight | 1200KG |
| winding diameter | 450mm--1000mm |
| rewinding diameter | 450mm |
| Product Keywords | Prepreg DMD Slitting Machine,High Speed Sheet Plastic Film Slitting Machine,Adhesive Tape Automatic Slitting Machinery |
Quality assurance:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines
1. Technique Data
Machine Speed : 80m/min
Max material width : 1600mm
Can slitting width : 25mm, 38mm, 50mm etc
Feeding Diameter : 600 mm
Rewinding diameter : 450mm
Slitting accuracy :±0.1mm
Voltage: 380V 3 Phase
Total Power: 8kw
Raw material Max hole diameter: 3”
compress air source:(0.4-0.6)Mpa(customer-owned)
Finished products Min. Width by standard slitting :25MM
Main Machine size :2400*2300*1300mm
Feeding Machine size : 1950*880*780mm
Weight : 2.2T
2, Feeding Device
Feeding Air Expansion Shaft (3” Key type Air Shaft) 2 Sets
magnetic powder brake 100N 1 Set
Film release Magnetic Powder Brake 50N 1 Set
Feeding Tension Control System 2 Sets
Rectification system ( micro-computer and Ultrasonic eye) 1 set

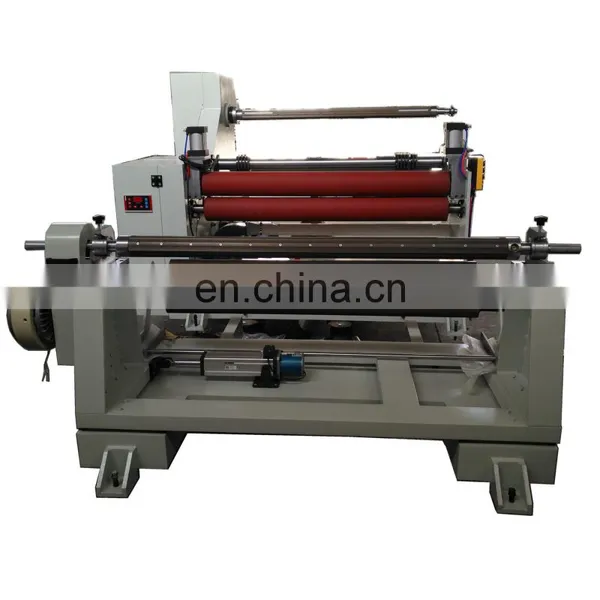

3, Renewal Material Laminating Part :
Upper Laminating rubber roller Dia.135(PU) 1 Set
Under Laminating rubber roller Dia.135(PU) 1 Set
Aluminum guide roller(hard Oxygen surface treatment) 1 Set
Pressure roller pneumatic type top and bottom system adjustable : 1 Set
electronic counter 1 Set
Film Release tensioning adjustable system
4. Reeling end
Receiving Flatulence axis(3″Pad Air shaft) 2 Sets
magnetic powder clutch 50N 2 Sets
he receiving tension control system 2 Sets
Main electrical machine (double motor) 1 Set
Main Power inverter 1 Set
Winding shaft and pneumatic up and down device(Rise,descend ,support) 1 Set
5. Operator control box 1 Set
6.Electric control panel 1 Set
PACKAGE:
Standard export wooden case packing.
DELIVERY TIME:
7-40 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Center Surface Coiling Slitting Rewinding Machine for CPP film
DP-650 Coil Paper Slitter Machine
resin ribbon slitting machine 12 mm slit width
8. Function Profile
frequency control of motor speed, operation more easy. Control more accurate.
Double receiving roller center take up , rewinding
Double receiving magnetic powder tension independent control, can rewinding at the same time , and also can individual use
Electronic meter counter with the function of automaticly count the meter and setting length, automatic stopping ,accuracy 0.01, error ±0.15M
Independent fan waste discharge.
Double motor configuration,The scroll of rewinding can be positive and negative transfer .

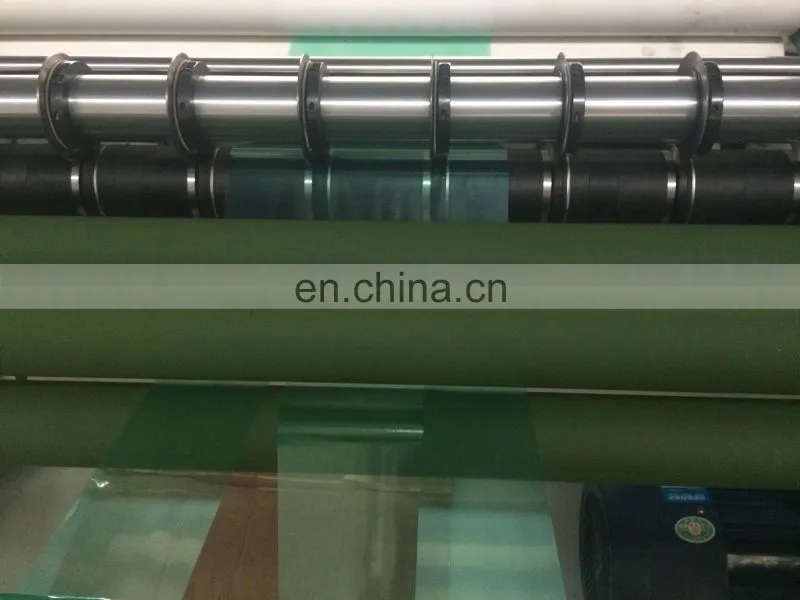

9. Slitting part
Slitting up and down cutter 10 sets
Circle tool apron 10 sets
Slitting up and down cutter gasket:1mm/2mm/5mm/20mm/30mm/50mm /10MM
