Home > Products > laminating and slitting machine > Automatic TPE Film Nomex Paper Slitting Machine Slitting Rewinder 33 Production Capacity 600/800mm +/_0.1mm 150m/min 400mm 6kw

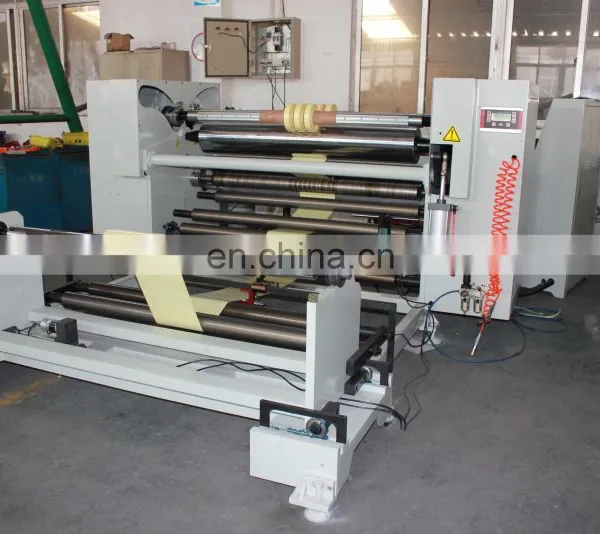

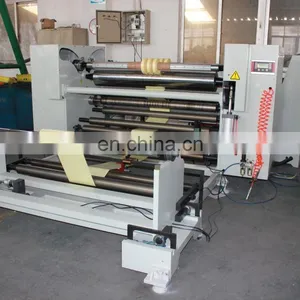

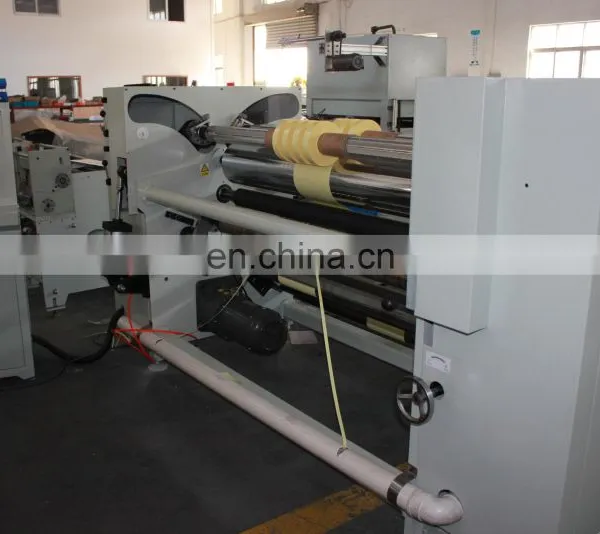

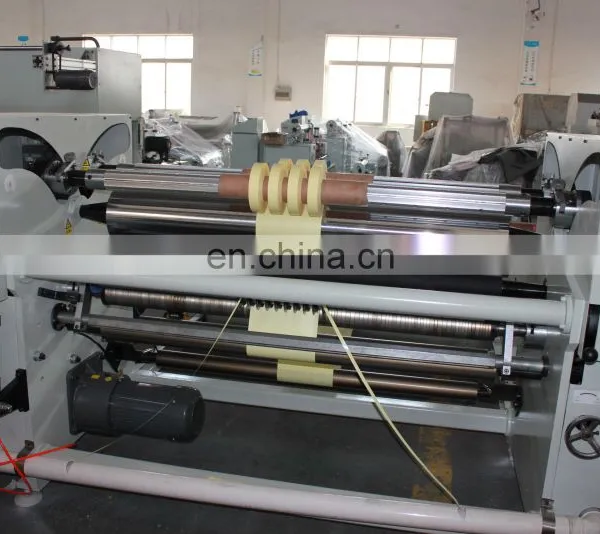

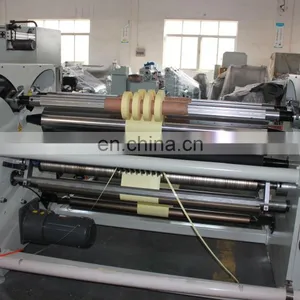

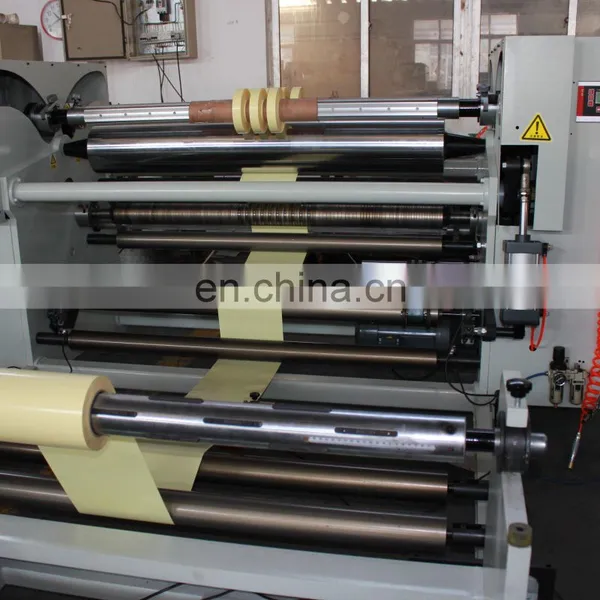

Automatic TPE Film Nomex Paper Slitting Machine Slitting Rewinder 33 Production Capacity 600/800mm +/_0.1mm 150m/min 400mm 6kw
- 1000 per Month
- T/T Credit Card
-
paper stripping machine paper strip cutter Automatic Narrow Strip Paper Rewinder Slitter
-
jumbo roll to small roll paper converting equipment slitting machine
-
Adhesive Tape / Plastic Film / Paper / Aluminum Foil Slitting Laminating Machine
-
automatic printed fabric plastic film cutter PVC cross cut roll to sheet paper cutting machine
-
Automatic kraft paper,aluminum foil roll to sheet cutting machine
-
Servo motor control roll to sheet cutting machine / paper cutter / paper sheeter
Product Description
Nomex Paper Slitting Machine
III. machine main configuration and specifications
(A) unwinding institutions
The device has a manual aspect of offset can be eliminated due to the tension of raw material at both ends arising from Bohou or paper core non-circularity different and wrinkled.
Unwinding tension to the high linear magnetic powder brake actuator output torque balancing the tension fluctuation can be reduced to a minimum.
Unwinding specifications: maximum width of 700mm / 1100mm/ 1300mm/ 1600mm , phi diameter 800mm
Paper tube clamping method: air shaft clamping
Specifications: 3in 1 root of the air shaft 1 piece
A pneumatic gun 1 piece
Tension control: closed-loop tension control.
The output control: 100N.M
magnetic brakes 1 piece
Correction perform: tracking the substrate by the photoelectric eye correction controller for a given signal, the motor drive ball screw execution.
Specifications: photoelectric eye 2 piece
Two linear bearings 2 piece
A corrective institutions 1 piece
The photoelectric eye fine-tuning 2 sets
(B) cutting machine configuration

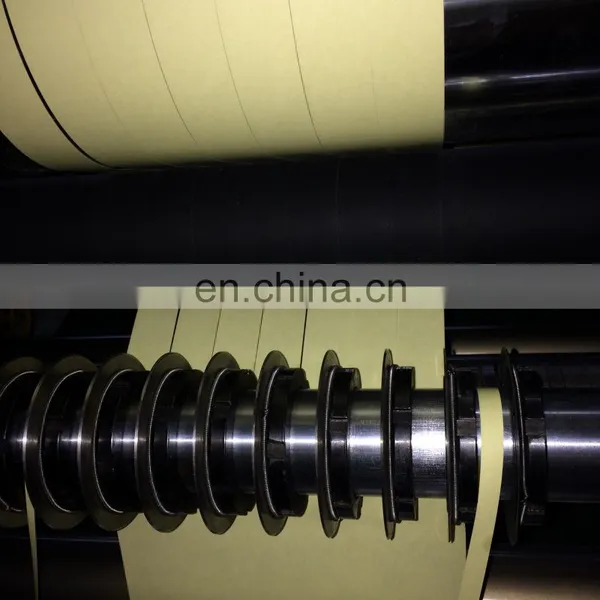

The agency uses carbide precision disc disc knife (slitting relatively thick aluminum foil, paper and other materials) or (and) straight knife cutting (slitting general plastic film),
neat incision, long life, cutting up and down knife shaft width adjustment processing,
between the upper and lower blade shaft gear speed matching. Turning the handwheel implementation under the knife, the knife continues to rotate automatically rely.
Tool axis: under the knife shaft each one
2 locking device: a fast by knife device, able to lock on the knife shaft, to avoid slitting knife from the up and down or move due to quality problems.
Specifications: a rocker arm
A locking shaft
With gear
A worm gear
3. Row waste: by blowing high pressure air feed tube diversion, the scrap material to exclude
Specifications: 1 fan
A duct
4 main wall: steel wall panels, effective shock absorption, enabling machine high-speed and stable operation.
Specifications: 30MM
5. Guide rollers: chrome plated, polished.
Specifications: φ80 × 730mm certain
(C) the rolling bodies
The agency uses the left-right axis biaxial winding winding with pressure arm balance internal and external pressure.
The transmission uses two independent magnetic particle motor drive uniaxial tension adjustable.
Winding Specifications: width up to 700mm, diameter 420mm
Paper tube clamping means: air shaft clamp (according to customer material specifications)
Specifications: 3in 2 root of the air shaft
Rewinding pressure: differential pressure pneumatic compression, the pressure can be adjusted by pneumatic pressure regulator
Specifications: Pressure arm 2
Cylinder 2
Tension control: magnetic motor constant torque output
Specifications: motor controller
Winding execution: magnetic motor 2 (specifications 50N.M)
(D) transmission mechanism
The inverter is used to control the main motor operation, convenient lifting speed, the speed adjustment the excessive soft, smooth.
Drive mode: General inverter control of AC motor drive
Specification: 4KW exchange motor
Supporting vector inverters (domestic well-known brand, quality assurance)
(E) Major appliances:
Centrally electric control cabinet box, elegant, and easy to operate.
Operation of a cabinet
Comptroller display a realistic real-time linear velocity, Hutchison meters automatic stop function (with deceleration stop function, Hutchison Mickey the error)
Optical correction controller 1
Button, contactors, air switches
Users themselves:
1.50 Hz, 380V three-phase five-wire power supply
2 foundation treatment
Mounting equipment and commissioning of the raw materials, auxiliary
Product Detail
| Model | DP-1100/1300/1600 |
| Max feeding width | 1100mm/1300mm/1600mm |
| Cutting area | 6kw |
| Cutting speed | 150m/min |
| Weight | 1200/1500kg |
| Rewinding diameter | 600/800mm |
| Winding diameter | 400mm |
| Precision | +/_0.1mm |
| Product Keywords | Nomex Paper Slitting Machine,TPU Film Slitting Machine,automatic thermal paper slitting machine |
Features:
Max unwinding diameter: 600mm
Maximum rewinding diameter: 420mm
Put the reel diameter: 3 inch
Rewinding diameter: 3 inch
Roll surface width: 730mm
Mechanical speed: ≤ 180m/min
Maximum working width: 700mm / 1100mm / 1300mm
Minimum slitting width: 5mm
Correction accuracy: ± 0.3mm
Max unwinding diameter: 600mm
Maximum rewinding diameter: 420mm
Put the reel diameter: 3 inch
Rewinding diameter: 3 inch
Roll surface width: 730mm
Mechanical speed: ≤ 180m/min
Maximum working width: 700mm
Minimum slitting width: 5mm
Correction accuracy: ± 0.3mm
The machine consists of corrective unwinding institutions, cutting structure, the rolling bodies, transmission and electrical control.
