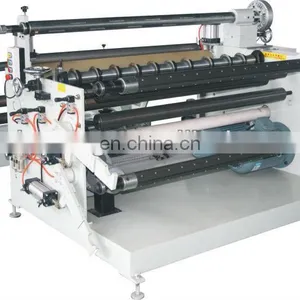

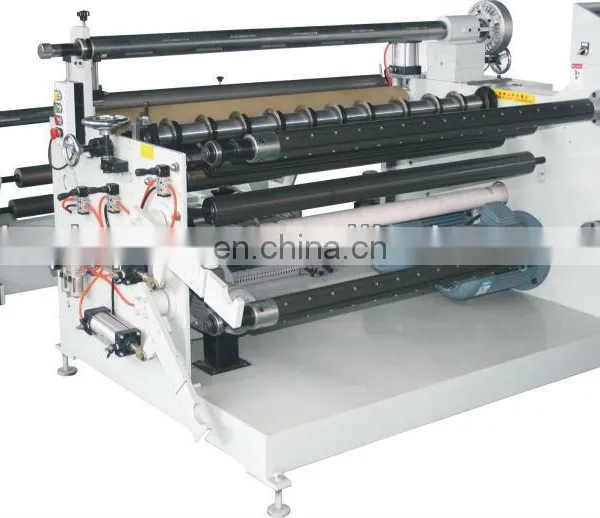

transformer insulating paper slitting machine
Feature:
This machine is sticking and slitting equipment with high precision and high sensitivity, The inflatable bearing is adopted to feed and receive materials, The magnetic powder clutch is used to control the tension. Imported gas sensitive device is used to detect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized
Application:
slitting for industrial adhesive tape, cellophane tape, protective film ,copper foil , aluminum foil , OPP, PP, PE, PVC, paper sheet, cloth. It is applicable in printing , packing , electronic, leather, clothes making ,plastic and rubber industrial and so on .
Remarks : rectification system can be divided into pressure rectification system and photoelectricity system
| Model | 1600 multifunction slitting machine | |
| Max Feeding Width ( mm ) | 1600/1800/2000 | |
| Main Engineer Power ( KW ) | 6 | |
| Speed (T/M ) | 80 | |
| Size ( mm ) | 2400*2300*1300 | |
| Weight (kg) | 1500 | |
| Feeding diameter ( mm ) | 800 | |
| Rewinding diameter ( mm ) | 450 | |
| precision ( mm ) | ±0.10 | |
| Power | 380V 50HZ |
