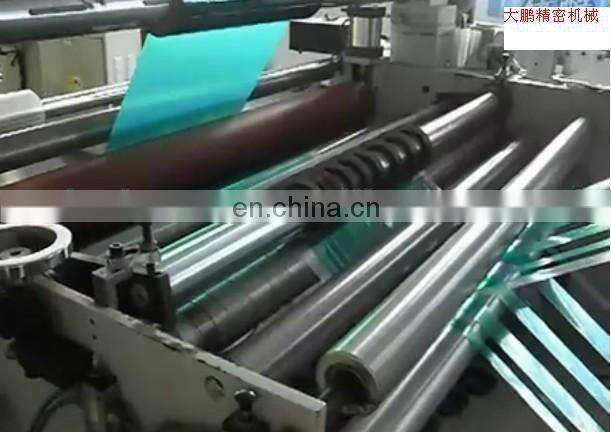

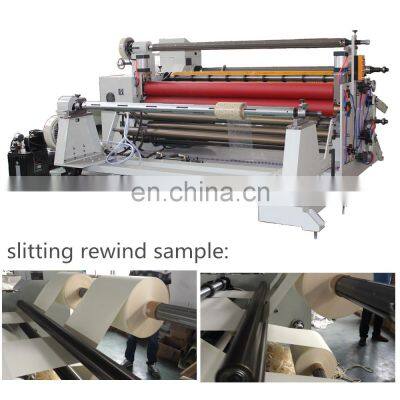

non-woven fabric slitter
Funcional characteristics:
This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and receiving materials. Imported magnetic powder clutch is adopted to control the tension. Imported gas sensive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized. It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc. There are two selection ofr main engine, single electric motor, double electric motors.
Purpose:

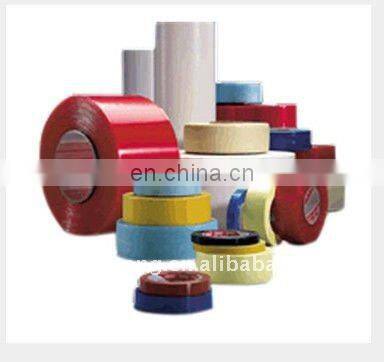

It is applicable for the slitting tooling of industrial adhesive tape, cellphone tape, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
| Model | 1300 slitting machine | 1600 slitting machine |
| Max Feeding Width ( mm ) | 1300 | 1600 |
| Main Engineer Power ( KW ) | 6 | 6 |
| Speed (T/M ) | 120 | 120 |
| Size ( mm ) | 2400*2000*1300 | 2400*2300*1300 |
| Weight (kg) | 1200 | 1500 |
| Rewinding diameter ( mm ) | 800 | 800 |
| Winding diameter ( mm ) | 450 | 450 |
| precision ( mm ) | ±0.10 | ±0.10 |
| Power | 380V 50HZ | 380V 50HZ |
